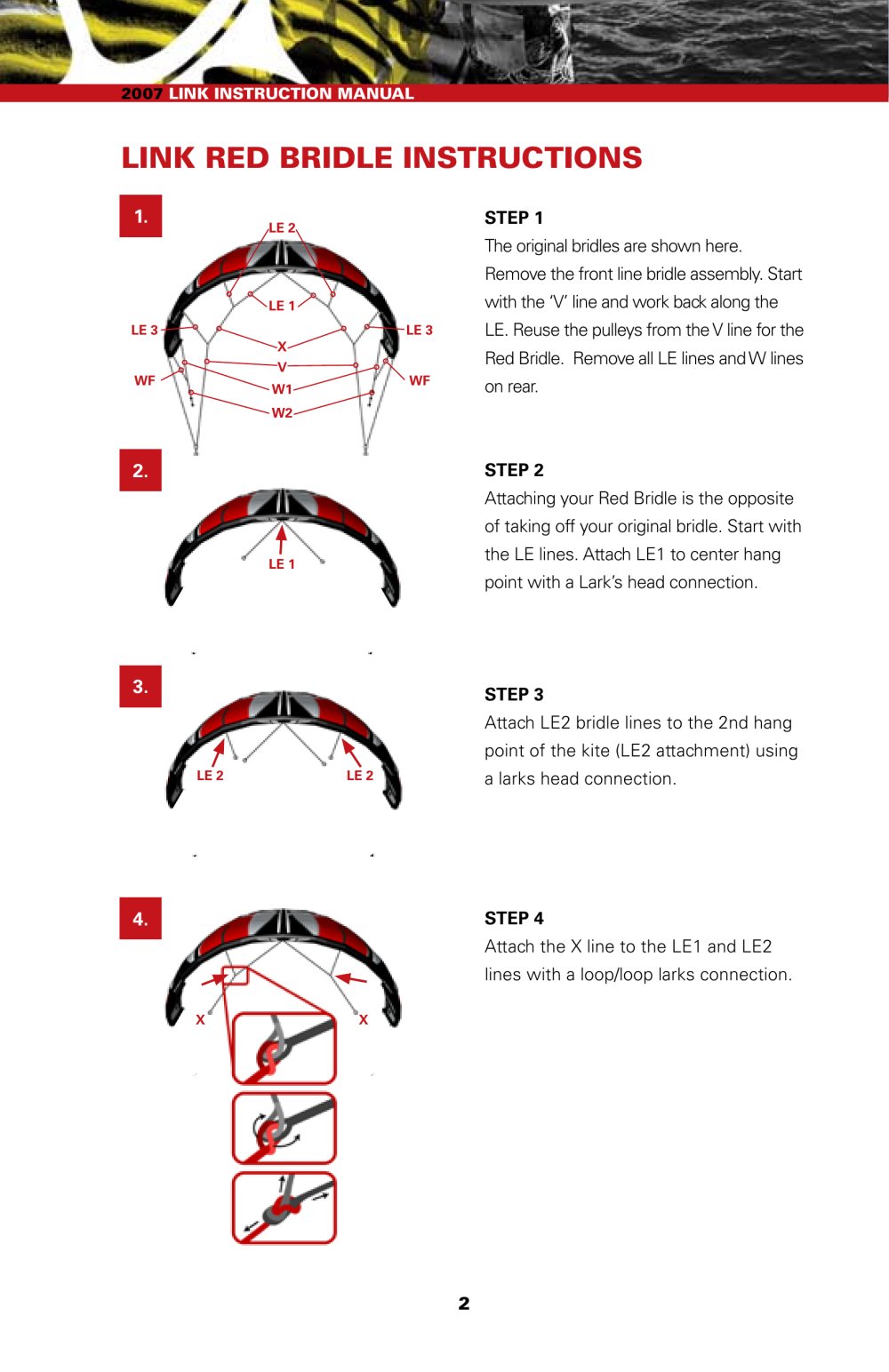

ED BRIDLE INSTRUCTIONS
STEP 1
The original bridles are shown here. Remove the front line bridle assembly. Start with the V' line and work back along the LE. Reuse the pulleys from the V line for the Red Bridle. Remove all LE lines and W lines
STEP 2
Attaching your Red Bridle is the opposite of taking off your original bridle. Start with the LE lines. Attach LE1 to center hang point with a Lark's head connection.
STEP 3
Attach LE2 bridle lines to the 2nd hang point of the kite (LE2 attachment) using a larks head connection.
STEP 4
Attach the X line to the LE1 and LE2 lines with a loop/loop larks connection.
2
