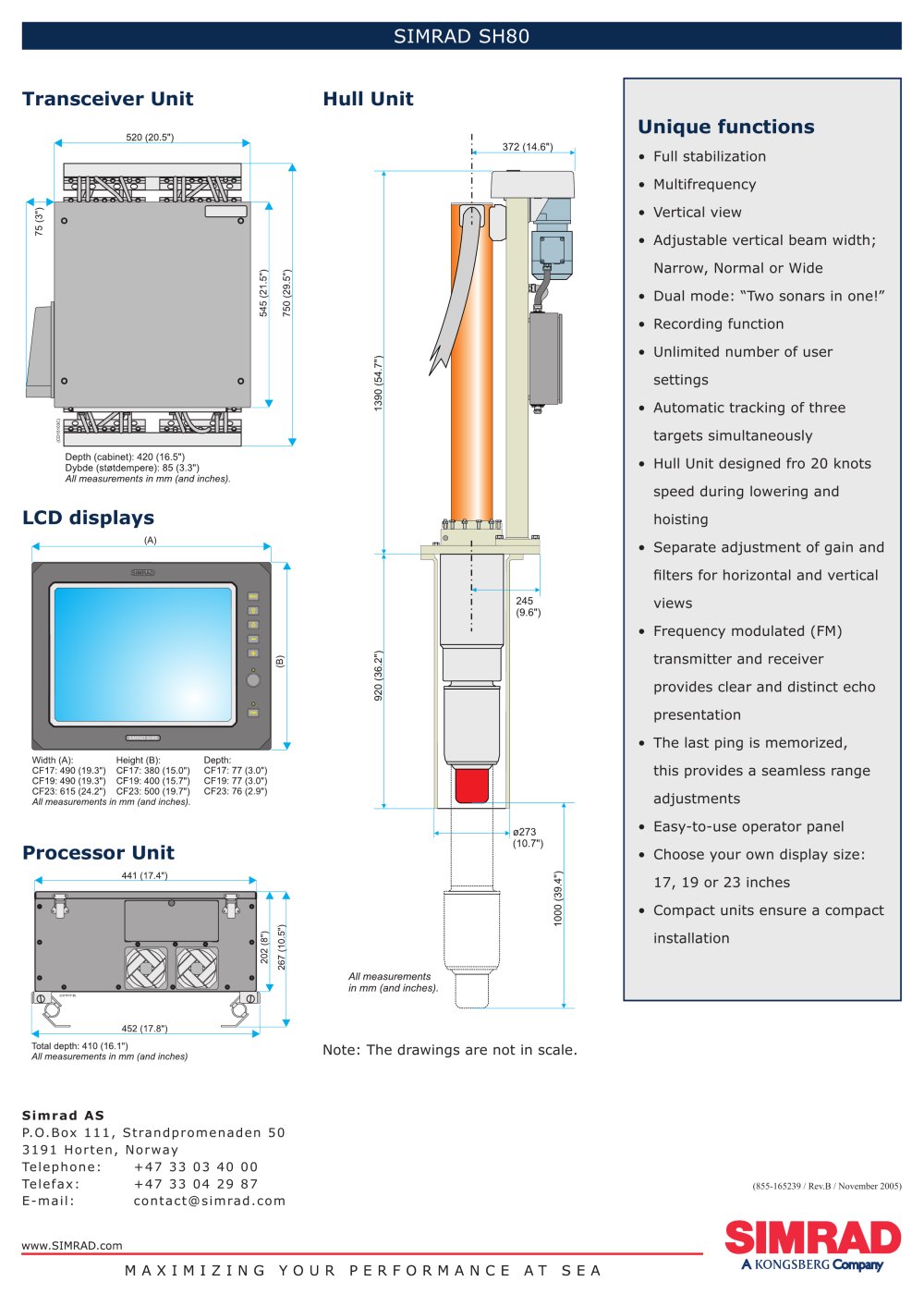

SIMRAD SH80 Transceiver UnitHull Unit Unique functions

• F u ll st ab iliz a ti o n • Multifre q uenc y • Vertic a l vie w • Ad j ustable vertical beam width; Narrow , Normal or Wid e • D ua l m od e: “Tw o s o n a rs in o ne!” • Recordin g functio n • U nlimite d n u m b er o f u se r settin gs • Automatic trackin g of three tar g ets simultaneousl y • Hull Unit desi g ned fro 20 knots speed durin g lowerin g and

LCD displays

hoistin g • Separate ad j ustment of g ain and fi lters f o r h o riz o nt a l a n d vertic a l vi e w s • Fre q uenc y modulated ( FM ) tr a nsmitter a n d receive r p rovides clear and distinct echo p resentatio n • The last pin g is memorized, this provides a seamless ran g e ad j ustment s • Eas y -to-use o p erator p ane l

Processor Unit

• Choose y our own dis p la y size: 17 , 19 or 23 inche s • Com p act units ensure a com p act inst a ll a ti o n Note: The drawin g s are not in scale .
S imr ad AS P .O.Box 111, Strandpromenaden 5 3 1 9 1 Horten, Norwa y T e l e ph one: +47 33 03 40 0 T ele f ax: +47 33 04 29 8 7 ( 855-165239 / Rev.B / November 2005 ) E -mail: contact@simrad.com
