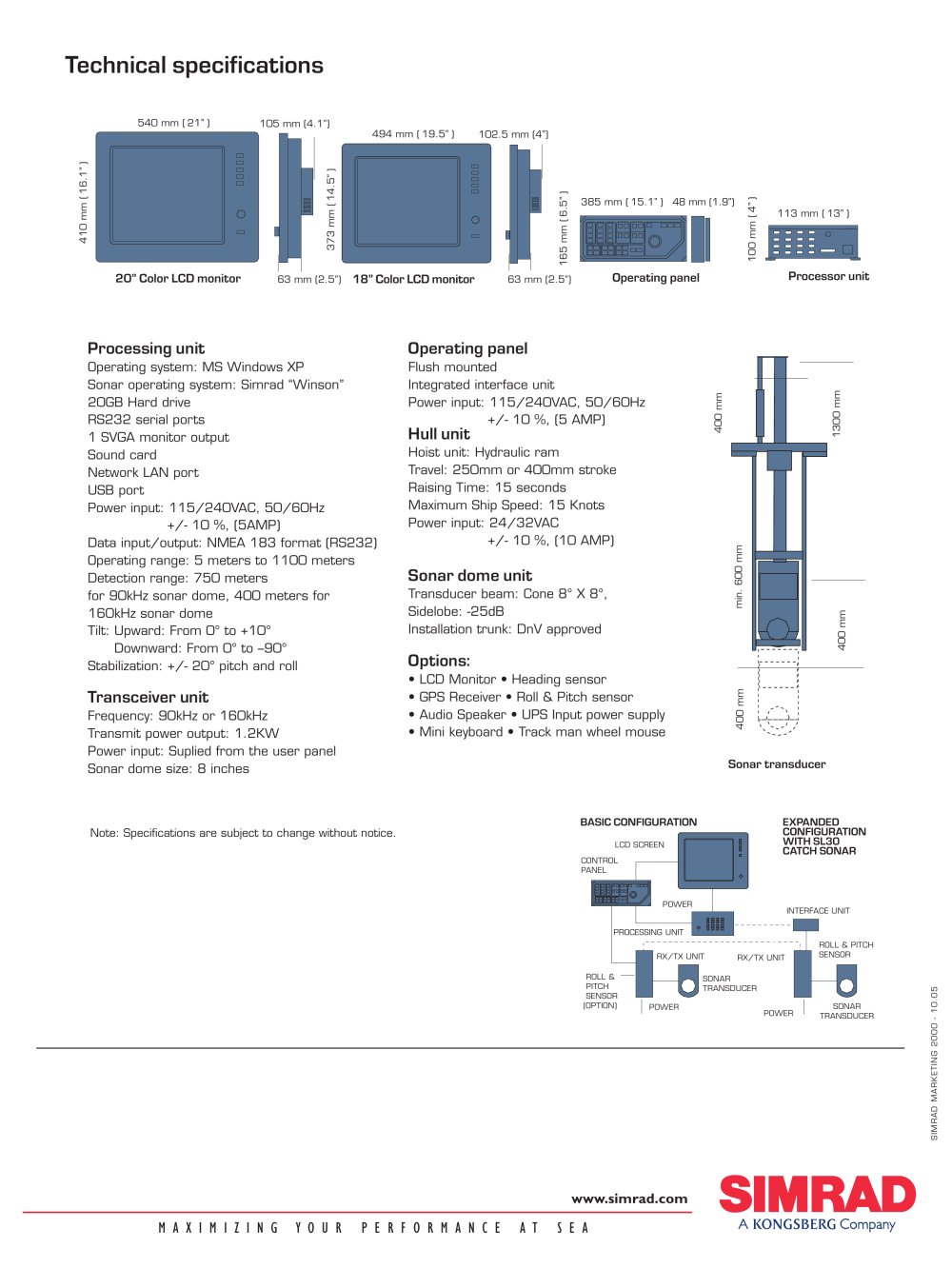

Technical specifications
540 mm (21" ]
105 mm (4.1"]
494 mm (19.5" ]
102.5 mm (4"]
[n
id
.5"
CD
m m
5
CO
385 mm (15.1" ] 48 mm (1.9"]
E E
if
113 mm (13"]
E E
=1
p1
P'
ZI
□
□
=1
□
□
EL
EL
EL
E E
□ if
ci
Cl
□ □
□
Processor unit
Operating panel
20" Color LCD monitor
63 mm (2.5"] 18" Color LCD monitor
63 mm (2.5"]
Processing unit
Operating system: MS Windows XP Sonar operating system: Simrad "Winson" 20GB Hard drive RS232 serial ports 1 SVGA monitor output Sound card Network LAN port USB port
Power input: 115/240VAC, 50/60Hz
+/- 10 %, (5AMP) Data input/output: NMEA 183 format (RS232) Operating range: 5 meters to 1100 meters Detection range: 750 meters for 90kHz sonar dome, 400 meters for 160kHz sonar dome Tilt: Upward: From 0° to +10°
Downward: From 0° to -90° Stabilization: +/- 20° pitch and roll
Transceiver unit
Frequency: 90kHz or 160kHz Transmit power output: 1.2KW Power input: Suplied from the user panel Sonar dome size: 8 inches
Operating panel
Flush mounted
Integrated interface unit
Power input: 115/240VAC, 50/60Hz
+/- 10 %, (5 AMP)
Hull unit
Hoist unit: Hydraulic ram Travel: 250mm or 400mm stroke Raising Time: 15 seconds Maximum Ship Speed: 15 Knots Power input: 24/32VAC
+/- 10 %, (10 AMP)
Sonar dome unit
Transducer beam: Cone 8° X 8°,
Sidelobe: -25dB
Installation trunk: DnV approved Options:
• LCD Monitor • Heading sensor
• MARINE GPS Receiver • Roll & Pitch sensor
• Audio Speaker • UPS Input power supply
• Mini keyboard • Track man wheel mouse
E E
E
□ □ ci
□ □ 5f
E E
E E
□ □ 5f
E E
□ □ 5f
BASIC CONFIGURATION
EXPANDED CONFIGURATION WITH SL30 CATCH SONAR
Note: Specifications are subject to change without notice.
CONTROL PANEL
INTERFACE UNIT
ROLL & PITCH
SENSOR
ROLL & PITCH SENSOR [OPTION]
SONAR
TRANSDUCER
r. Z
z
SONAR TRANSDUCER
z z z
s z
>
<
1
X
SIMRAC
www.simrad.com
MAXIMIZING YOUR PERFORMANCE AT SEA A KONGSBERG Company
