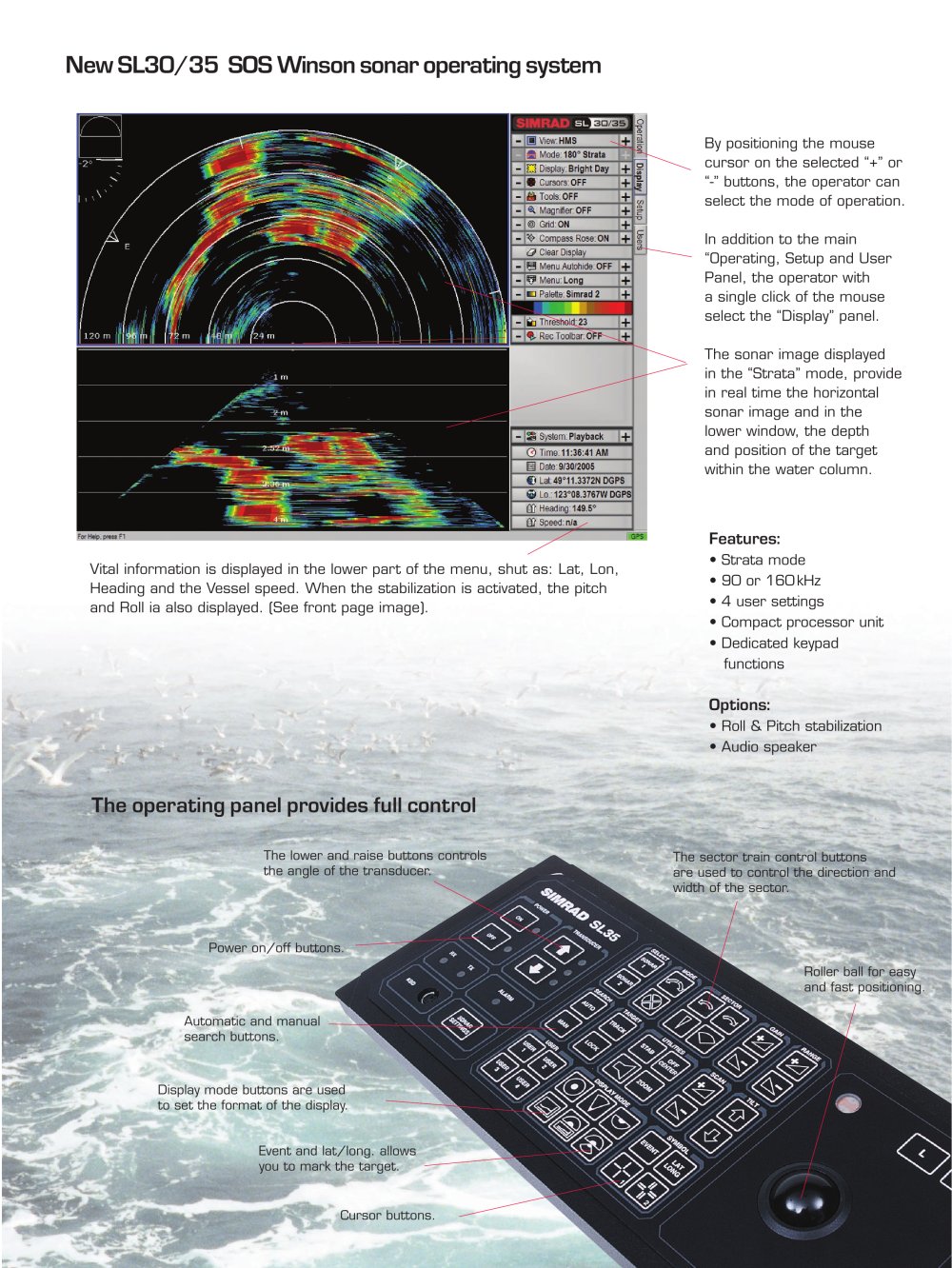

New SL30/35 SOS Winson sonar operating system

By positioning the mouse cursor on the selected “+” or “-” buttons, the operator can select the mode of operation.In addition to the main“Operating, Setup and UserPanel, the operator with a single click of the mouseselect the “Display” panel.The sonar image displayed in the “Strata” mode, providein real time the horizontal sonar image and in the lower window, the depth and position of the targetwithin the water column.

Features:

• Strata mode• 90 or 160kHz• 4 user settings• Compact processor unit• Dedicated keypadfunctions

Options:

• Roll & Pitch stabilization • Audio speaker Vital information is displayed in the lower part of the menu, shut as: Lat, Lon,Heading and the Vessel speed. When the stabilization is activated, the pitch and Roll ia also displayed. (See front page image).

The operating panel provides full control

The lower and raise buttons controlsthe angle of the transducer.Power on/off buttons.Automatic and manual search buttons.Display mode buttons are used to set the format of the display.Event and lat/long. allowsyou to mark the target.Cursor buttons. Roller ball for easyand fast positioning. The sector train control buttons are used to control the direction and width of the sector.
