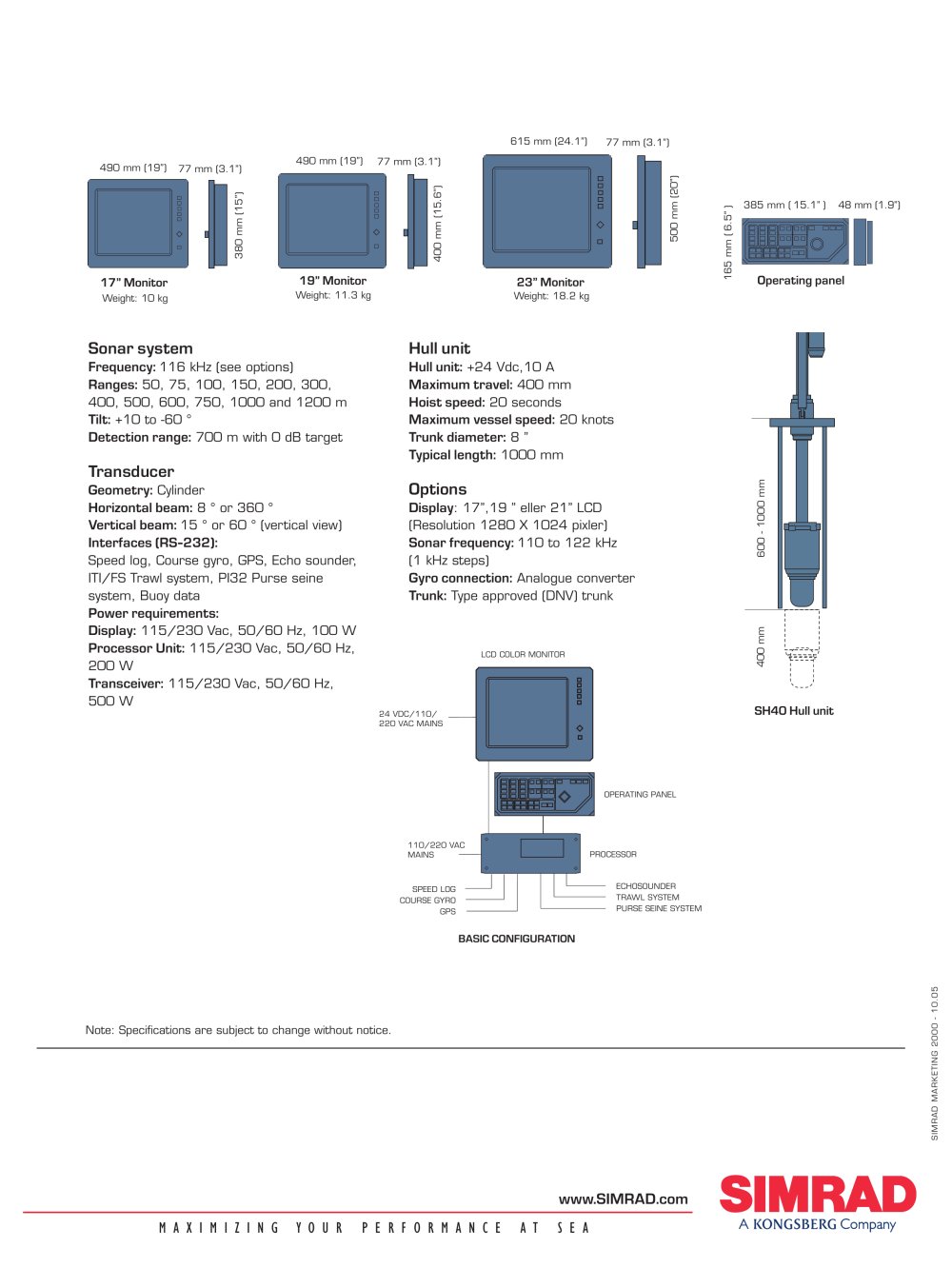

615 mm (24.1”) 77 mm (3.1”)77 mm (3.1”)490 mm (19”) 77 mm (3.1”)490 mm (19”) 385 mm (15.1”) 48 mm (1.9”) 500 mm (20”) 380 mm (15”) 400 mm (15.6”) 23” Monitor 19” Monitor 17” Monitor
165 mm (6.5”) Operating panel
Weight: 10 kgWeight: 11.3 kgWeight: 18.2 kg

Sonar system Hull unit

Frequency:

116 kHz (see options)

Hull unit:

+24 Vdc,10 A

Ranges:

50, 75, 100, 150, 200, 300,400, 500, 600, 750, 1000 and 1200 m

Maximum travel:

400 mm

Hoist speed:

20 seconds

Tilt:

+10 to -60 °

Maximum vessel speed:

20 knots

Detection range:

700 m with 0 dB target

Trunk diameter:

8 ”

Typical length:

1000 mm

Transducer

Geometry:

Cylinder

Options

Horizontal beam:

8 °or 360 °

Display

: 17”,19 ” eller 21” LCD(Resolution 1280 X 1024 pixler)

Vertical beam:

15 °or 60 °(vertical view)

Interfaces (RS-232): Sonar frequency:

110 to 122 kHz (1 kHz steps) Speed log, Course gyro, BOAT GPS, Echo sounder, ITI/FS Trawl system, PI32 Purse seine system, Marine buoy data
600 - 1000 mm

Gyro connection:

Analogue converter

Trunk:

Type approved (DNV) trunk

Power requirements:Display:

115/230 Vac, 50/60 Hz, 100 W

Processor Unit:

115/230 Vac, 50/60 Hz,200 W
LCD COLOR MONITOR24 VDC/110/220 VAC MAINS 110/220 VACMAINSECHOSOUNDERTRAWL SYSTEM PURSE SEINE SYSTEMSPEED LOGCOURSE GYROGPS OPERATING PANELPROCESSOR 400 mm

Transceiver:

115/230 Vac, 50/60 Hz,500 W SH40 Hull unit
BASIC CONFIGURATION Note: Specifications are subject to change without notice. SIMRAD MARKETING 2000 - 10.05
