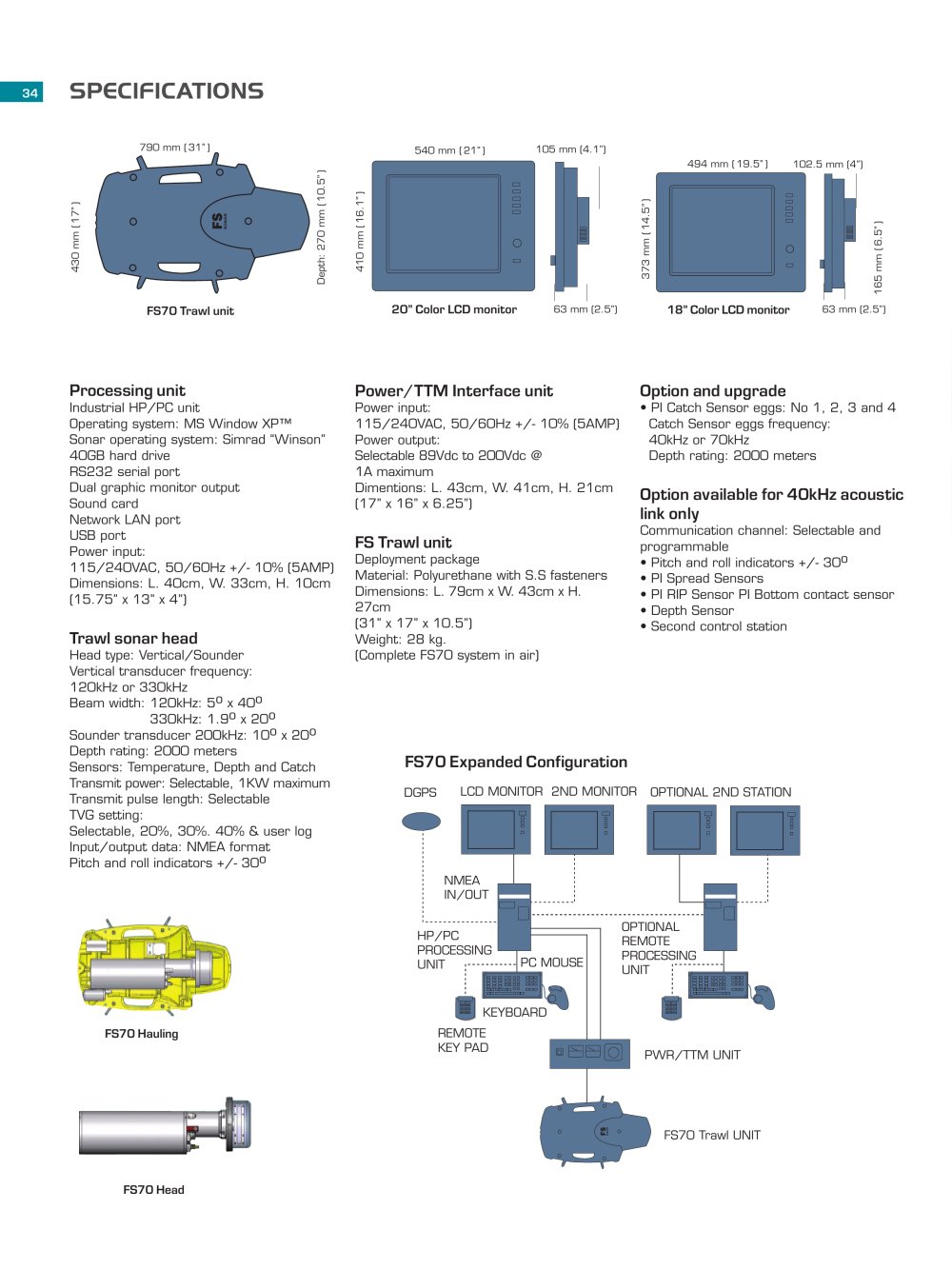

| | | Processing unit Industrial HP/PC unit Operating system: MS Window XP™ Sonar operating system: Simrad "Winson" 40GB hard drive RS232 serial port Dual graphic monitor output Sound card Network LAN port USB port Power input: 115/240VAC, 50/60Hz +/- 10% (5AMP) Dimensions: L. 40cm, W. 33cm, H. 10cm (15.75" x 13" x 4") Trawl sonar head Head type: Vertical/Sounder Vertical transducer frequency: 120kHz or 330kHz Beam width: 120kHz: 5o x 40o 330kHz: 1.9o x 20o Sounder transducer 200kHz: 10o x 20o Depth rating: 2000 meters Sensors: Temperature, Depth and Catch Transmit power: Selectable, 1KW maximum Transmit pulse length: Selectable TVG setting: Selectable, 20%, 30%. 40% & user boat log Input/output data: NMEA format Pitch and roll indicators +/- 30o | | Power/TTM Interface unit Power input: 115/240VAC, 50/60Hz +/- 10% [5AMP] Power output: Selectable 89Vdc to 200Vdc @ 1A maximum Dimentions: L. 43cm, W. 41cm, H. 21cm [17" x 16" x 6.25"] FS Trawl unit Deployment package Material: Polyurethane with S.S fasteners Dimensions: L. 79cm x W. 43cm x H. 27cm [31" x 17" x 10.5"] Weight: 28 kg. [Complete FS70 system in air] | | Option and upgrade • PI Catch Sensor eggs: No 1, 2, 3 and 4 Catch Sensor eggs frequency: 40kHz or 70kHz Depth rating: 2000 meters Option available for 40kHz acoustic link only Communication channel: Selectable and programmable • Pitch and roll indicators +/- 30o • PI Spread Sensors • PI RIP Sensor PI Bottom contact sensor • Depth Sensor • Second control station | | |
