| | | N€W FLEXIBLE TRAWL SONAR SYSTEM | | |
| | | |
| | | n A H C H | | |

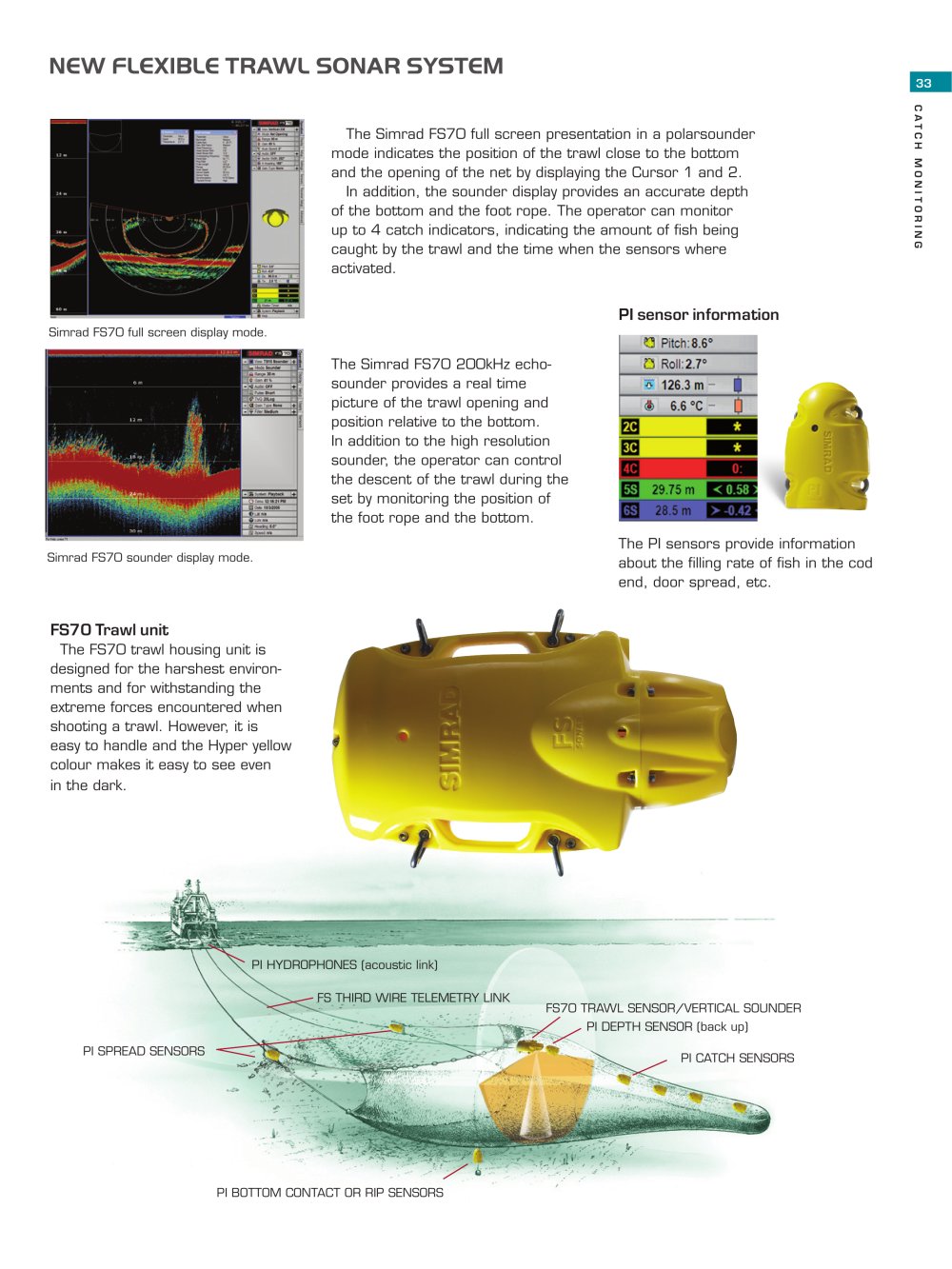

| | | The Simrad FS70 full screen presentation in a polarsounder mode indicates the position of the trawl close to the bottom and the opening of the net by displaying the Cursor 1 and 2. In addition, the sounder display provides an accurate depth of the bottom and the foot boat rope. The operator can monitor up to 4 catch indicators, indicating the amount of fish being caught by the trawl and the time when the sensors where activated. | | |
| | | |
| | | S O z T □ z z | | |
| | | |
| | | |
| | | PI sensor information | | |
| | | |
| | | Simrad FS70 full screen display mode. | | |
| | | |
| | | The Simrad FS70 200kHz echo- sounder provides a real time picture of the trawl opening and position relative to the bottom. In addition to the high resolution sounder, the operator can control the descent of the trawl during the set by monitoring the position of the foot rope and the bottom. | | |
| | | |
| | | The PI sensors provide information about the filling rate of fish in the cod end, door spread, etc. | | |
| | | Simrad FS70 sounder display mode. | | |
| | | |
| | | |
| | | FS70 Trawl unit The FS70 trawl housing unit is designed for the harshest environments and for withstanding the extreme forces encountered when shooting a trawl. However, it is easy to handle and the Hyper yellow colour makes it easy to see even in the dark. | | |
| | | |
| | | PI SPREAD SENSORS | | |
| | | |
| | | PI BOTTOM CONTACT OR RIP SENSORS | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | |
