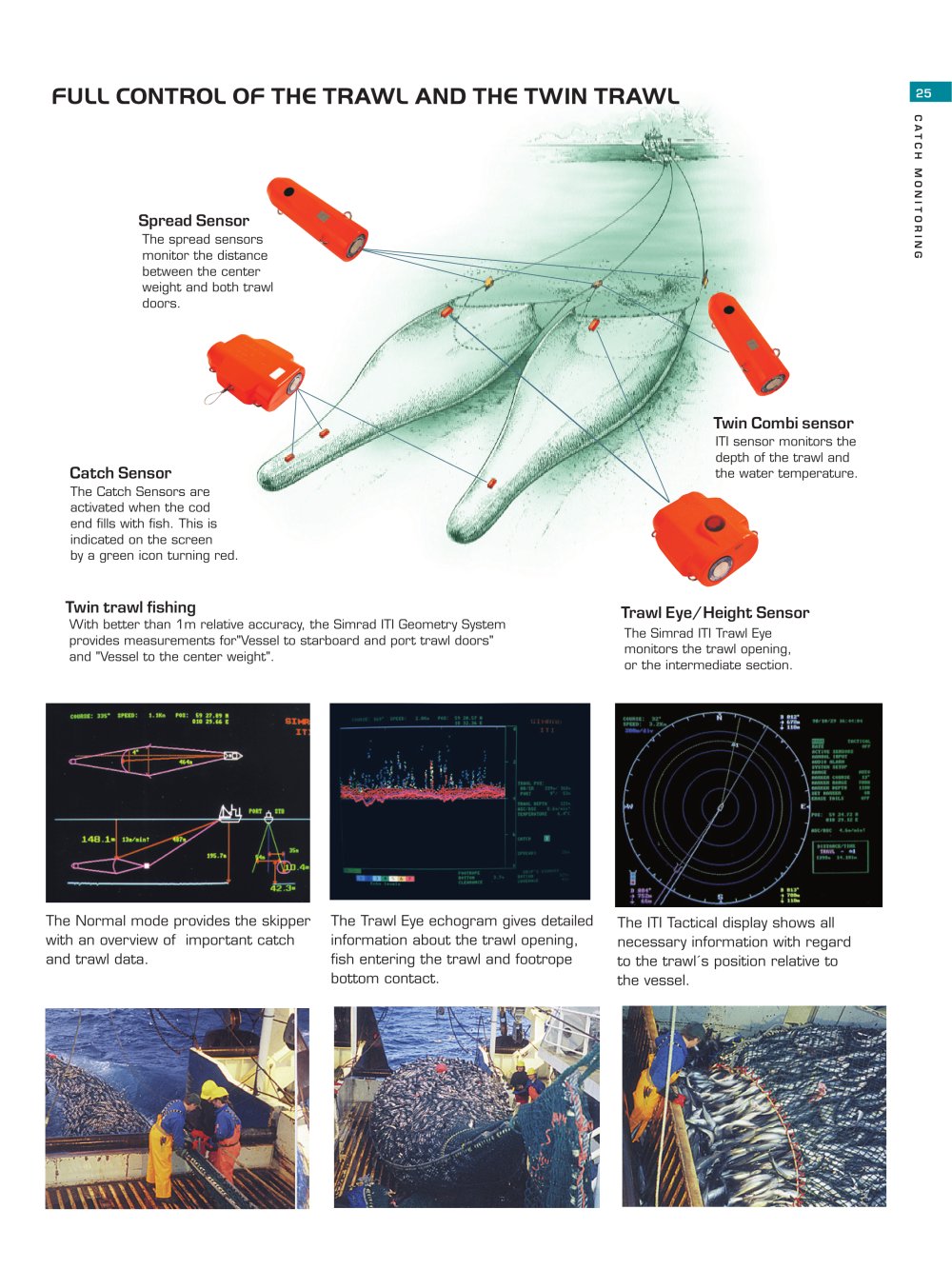

| | | FULL CONTROL OF THG TRAWL AND THG TWIN TRAWL | | |
| | | 25 | | |
| | | |
| | | |
| | | n H n | | |
| | | |
| | | S o z H □ z z | | |
| | | Spread Sensor The spread sensors monitor the distance between the center weight and both trawl doors. | | |
| | | |
| | | |
| | | Twin Combi sensor ITI sensor monitors the depth of the trawl and the water temperature. | | |
| | | Catch Sensor The Catch Sensors are activated when the cod end fills with fish. This is i ndicated on the screen by a green icon turning red. | | |
| | | |
| | | |
| | | Twin trawl fishing With better than 1m relative accuracy, the Simrad ITI Geometry System provides measurements for"Vessel to starboard and port trawl doors" and "Vessel to the center weight". | | |
| | | Trawl Eye/Height Sensor The Simrad ITI Trawl Eye monitors the trawl opening, or the intermediate section. | | |
| | | |
| | | |
| | | The Normal mode provides the skipper with an overview of important catch and trawl data. | | The Trawl Eye echogram gives detailed information about the trawl opening, fish entering the trawl and footrope bottom contact. | | |
| | | The ITI Tactical display shows all necessary information with regard to the trawl's position relative to the vessel. | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | |
