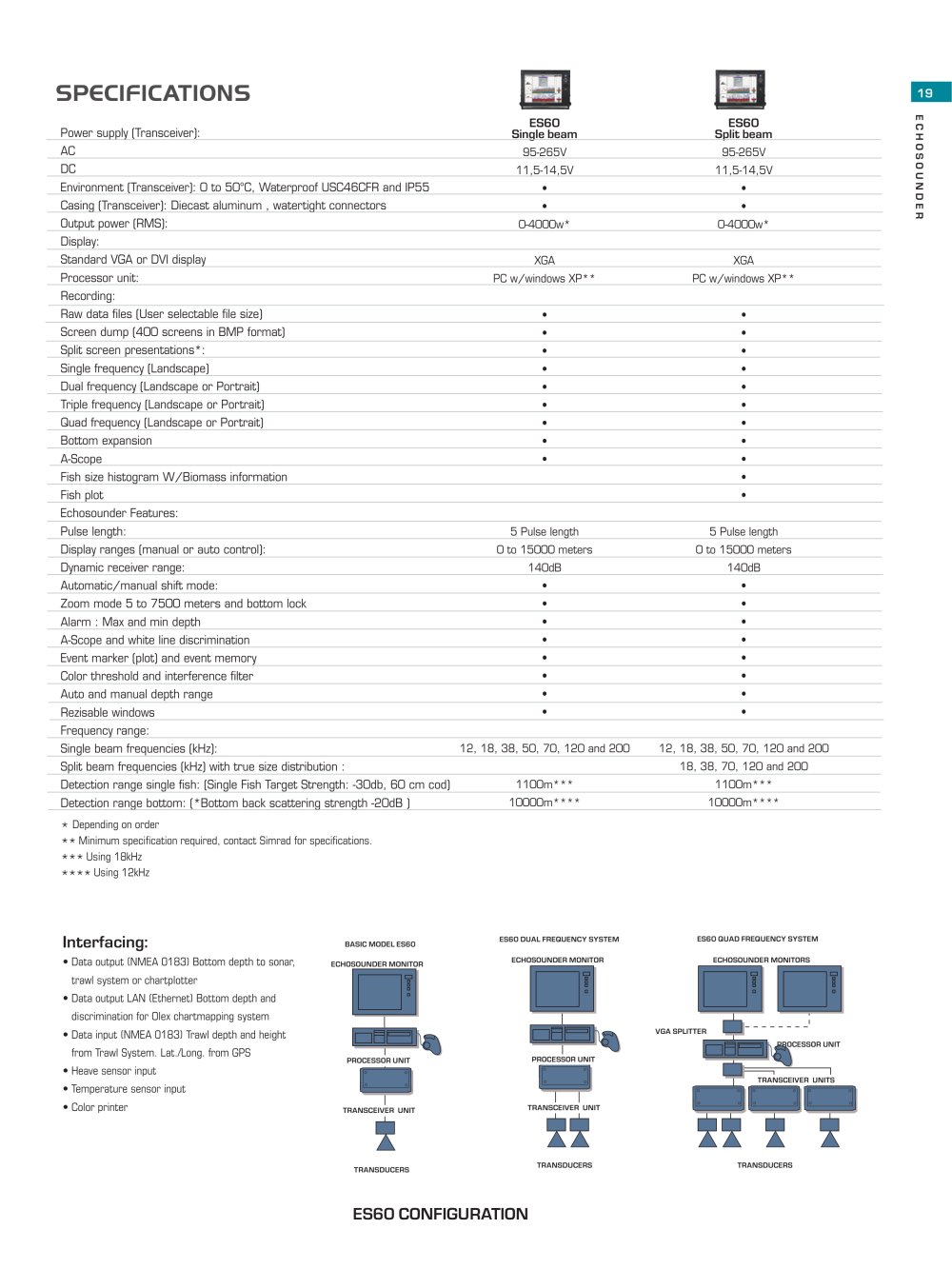

| | Power supply [Transceiver]: | ES60 Single beam | ES60 Split beam | |
| | AC | 95-265V | 95-265V | |
| | DC | 11,5-14,5V | 11,5-14,5V | |
| | Environment [Transceiver]: 0 to 50°C, Waterproof USC46CFR and IP55 | • | • | |
| | Casing [Transceiver]: Diecast aluminum , watertight connectors | • | • | |
| | Output power [RMS]: | 0-4000w* | 0-4000w* | |
| | Display: | |
| | Standard VGA or DVI display | XGA | XGA | |
| | Processor unit: | PC w/windows XP** | PC w/windows XP** | |
| | Recording: | |
| | Raw data files [User selectable file size] | | | |
| | Screen dump [400 screens in BMP format] | | | |
| | Split screen presentations*: | | | |
| | Single frequency [Landscape] | | | |
| | Dual frequency [Landscape or Portrait] | | | |
| | Triple frequency [Landscape or Portrait] | | | |
| | Quad frequency [Landscape or Portrait] | | | |
| | Bottom expansion | | | |
| | A-Scope | | | |
| | Fish size histogram W/Biomass information | | | |
| | Fish plot | | | |
| | Echosounder Features: | |
| | Pulse length: | 5 Pulse length | 5 Pulse length | |
| | Display ranges [manual or auto control]: | 0 to 15000 meters | 0 to 15000 meters | |
| | | 140dB | 140dB | |
| | Automatic/manual shift mode: | | | |
| | Zoom mode 5 to 7500 meters and bottom lock | | | |
| | Alarm : Max and min depth | | | |
| | A-Scope and white line discrimination | | | |
| | Event marker [plot] and event memory | | | |
| | Color threshold and interference filter | | | |
| | Auto and manual depth range | | | |
| | Rezisable windows | | | |
| | Frequency range: | |
| | Single beam frequencies [kHz]: | 12, 18, 38, 50, 70, 120 and 200 | 12, 18, 38, 50, 70, 120 and 200 | |
| | Split beam frequencies [kHz] with true size distribution : | | 18, 38, 70, 120 and 200 | |
| | Detection range single fish: [Single Fish Target Strength: -30db, 60 cm cod] | 1100m*** | 1100m*** | |
| | Detection range bottom: [*Bottom back scattering strength -20dB ] | 10000m**** | 10000m**** | |
| | | | | |
