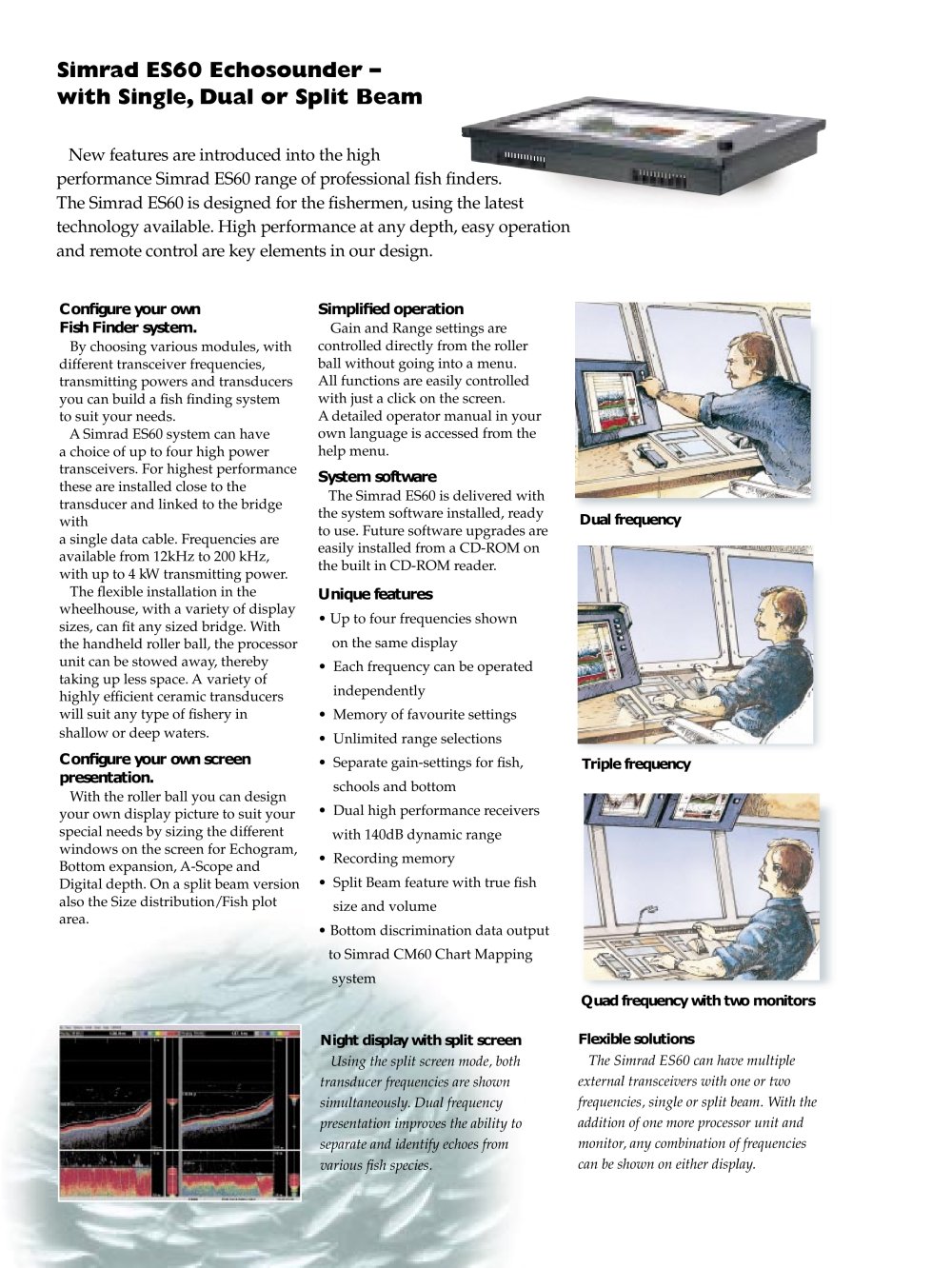

| | | Configure your own Fish Finder system. By choosing various modules, with different transceiver frequencies, transmitting powers and transducers you can build a fish finding system to marine suit your needs. A Simrad ES60 system can have a choice of up to four high power transceivers. For highest performance these are installed close to the transducer and linked to the bridge with a single data cable. Frequencies are available from 12kHz to 200 kHz, with up to 4 kW transmitting power. The flexible installation in the wheelhouse, with a variety of display sizes, can fit any sized bridge. With the handheld roller ball, the processor unit can be stowed away, thereby taking up less space. A variety of highly efficient ceramic transducers will suit any type of fishery in shallow or deep waters. Configure your own screen presentation. With the roller ball you can design your own display picture to suit your special needs by sizing the different windows on the screen for Echogram, Bottom expansion, A-Scope and Digital depth. On a split beam version also the Size distribution/Fish plot area. | | Simplified operation Gain and Range settings are controlled directly from the roller ball without going into a menu. All functions are easily controlled with just a click on the screen. A detailed operator manual in your own language is accessed from the help menu. System software The Simrad ES60 is delivered with the system software installed, ready to use. Future software upgrades are easily installed from a CD-ROM on the built in CD-ROM reader. Unique features • Up to four frequencies shown on the same display • Each frequency can be operated independently • Memory of favourite settings • Unlimited range selections • Separate gain-settings for fish, schools and bottom • Dual high performance receivers with 140dB dynamic range • Recording memory • Split Beam feature with true fish size and volume • Bottom discrimination data output to Simrad CM60 Chart Mapping system | | |
