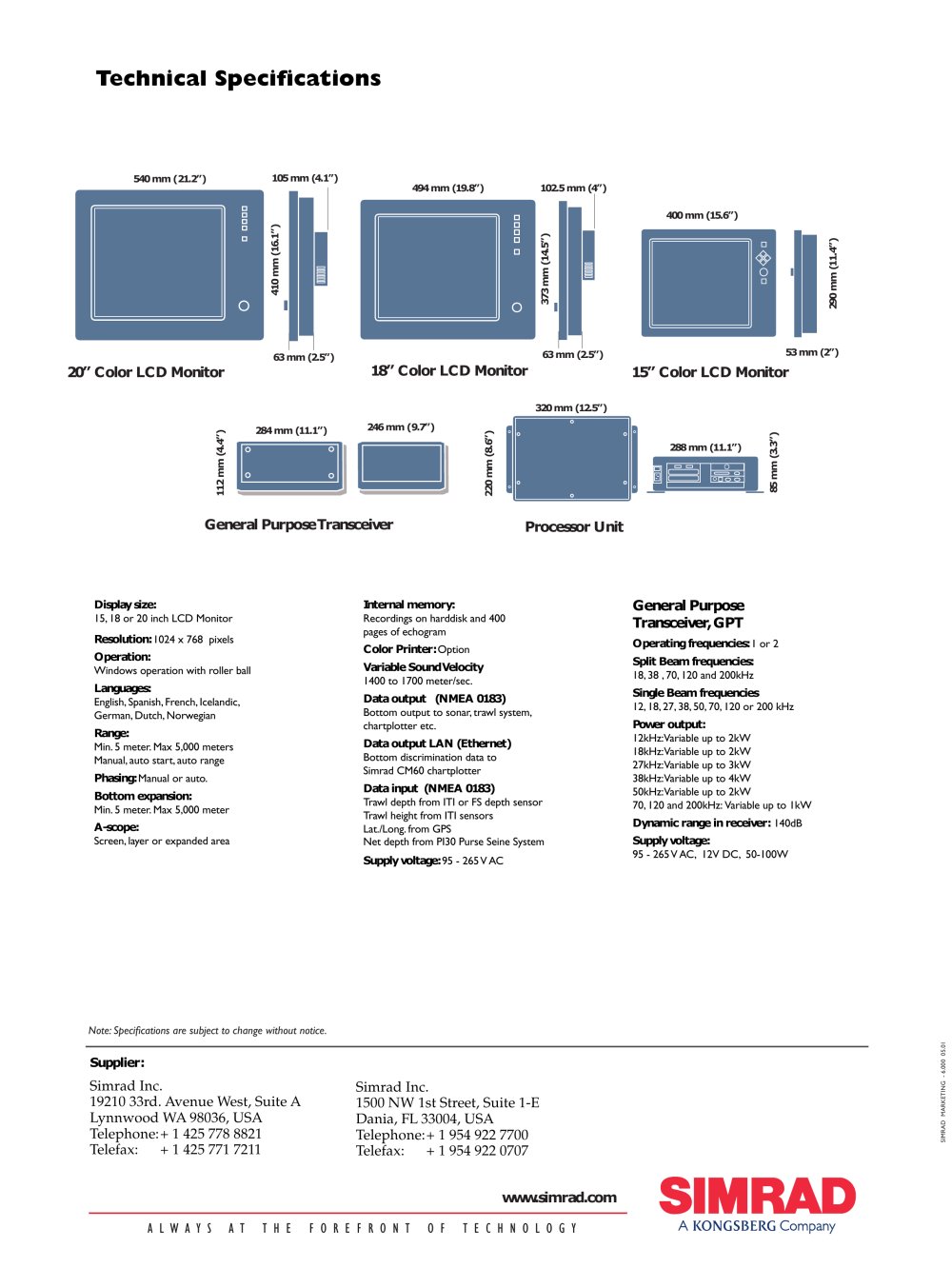

| | | Display size: 15, 18 or 20 inch LCD Monitor Resolution: 1024 x 768 pixels Operation: Windows operation with roller ball Languages: English, Spanish, French, Icelandic, German, Dutch, Norwegian Range: Min. 5 meter. Max 5,000 meters Manual, auto start, auto range Phasing: Manual or auto. Bottom expansion: Min. 5 meter. Max 5,000 meter A-scope: Screen, layer or expanded area | | Internal memory: Recordings on harddisk and 400 pages of echogram Color Printer: Option Variable Sound Velocity 1400 to 1700 meter/sec. Data output (NMEA 0183) Data output LAN (Ethernet) Bottom discrimination data to Simrad CM60 chartplotter Data input (NMEA 0183) Trawl depth from ITI or FS depth sensor Trawl height from ITI sensors Lat./Long. from GPS Net depth from PI30 Purse Seine System Supply voltage: 95 - 265 V AC | | General Purpose Transceiver, GPT Operating frequencies: 1 or 2 Split Beam frequencies: 18,38 ,70, 120 and 200kHz Single Beam frequencies 12,18,27,38,50,70, 120 or 200 kHz Power output: 12kHz:Variable up to 2kW 18kHz:Variable up to 2kW 27kHz:Variable up to 3kW 38kHz:Variable up to 4kW 50kHz:Variable up to 2kW 70, 120 and 200kHz: Variable up to 1kW Dynamic range in receiver: 140dB Supply voltage: 95 - 265 V AC, 12V DC, 50-100W | | |
