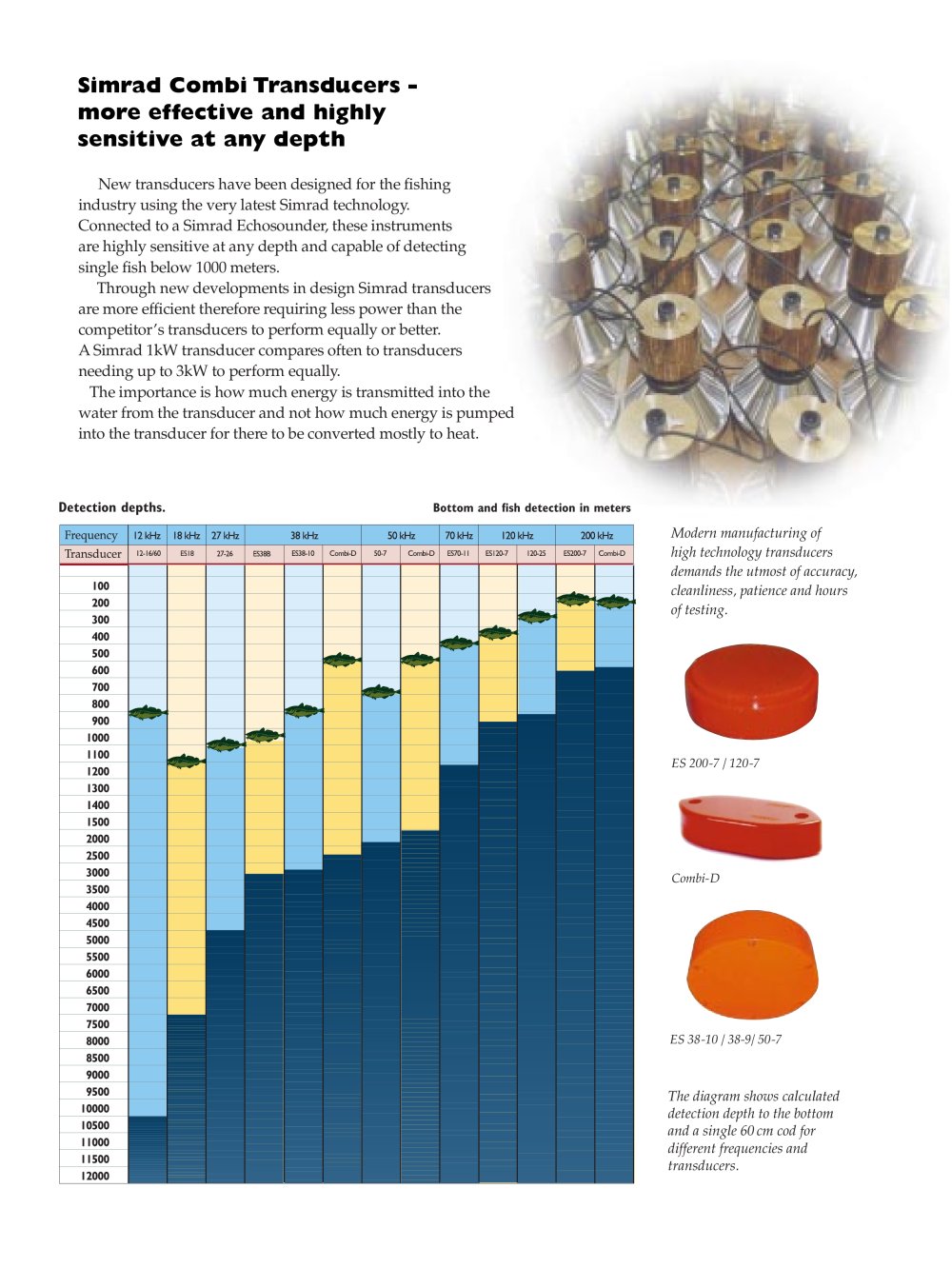

Simrad Combi Transducers -more effective and highly sensitive at any depth
New transducers have been designed for the fishing industry using the very latest Simrad technology. Connected to a Simrad Echosounder, these instruments are highly sensitive at any depth and capable of detecting single fish below 1000 meters.
Through new developments in design Simrad transducers are more efficient therefore requiring less power than the competitor's transducers to perform equally or better. A Simrad 1kW transducer compares often to transducers needing up to 3kW to perform equally.
The importance is how much energy is transmitted into the water from the transducer and not how much energy is pumped into the transducer for there to be converted mostly to heat.
Detection depths.
Bottom and fish detection in meters
Modern manufacturing of high technology transducers demands the utmost of accuracy, cleanliness, patience and hours of testing.
ES 200-71120-7
Combi-D
ES 38-10 / 38-9/ 50-7
The diagram shows calculated detection depth to the bottom and a single 60 cm cod for different frequencies and transducers.
