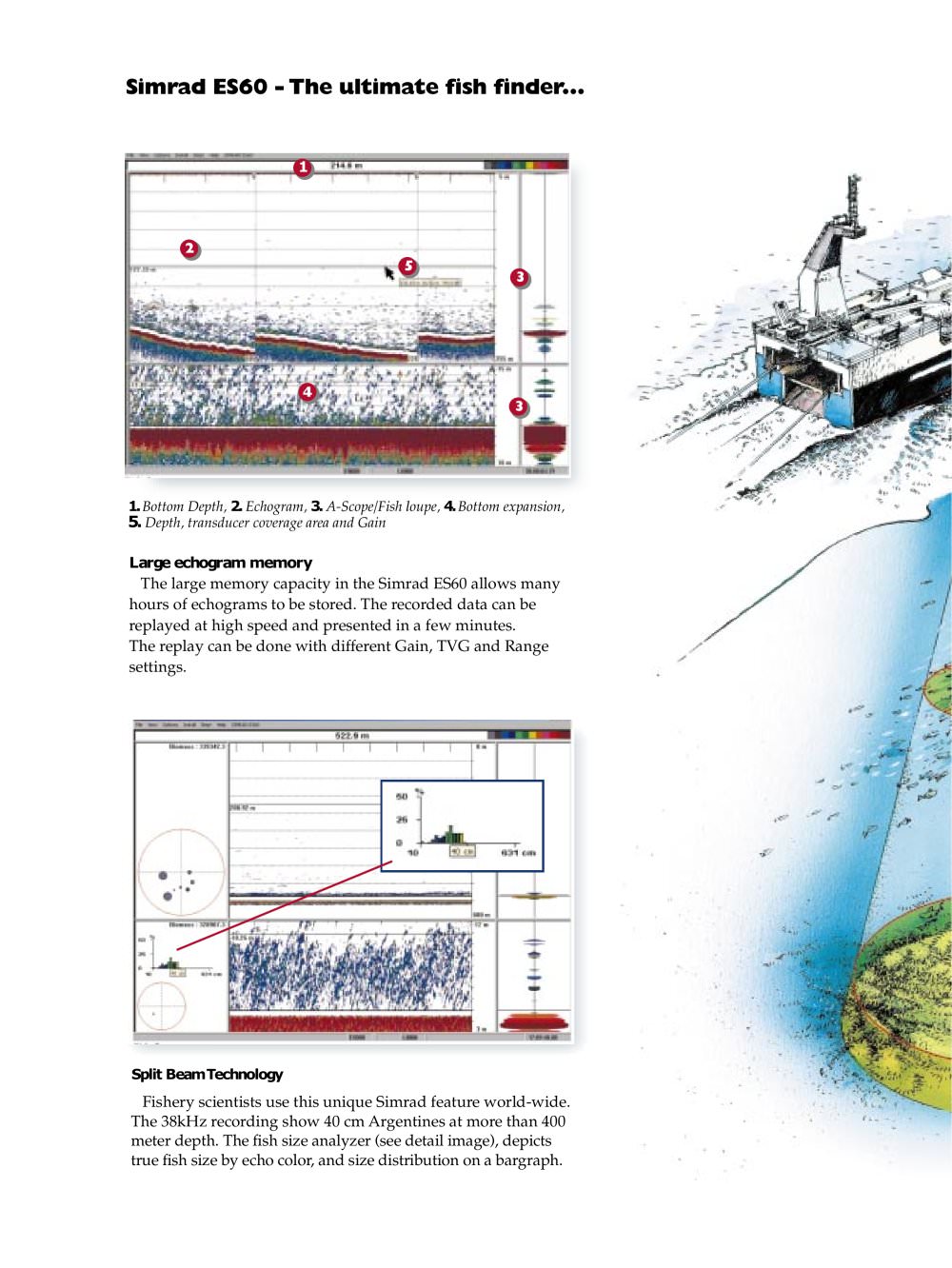

		Simrad ES60 - The ultimate fish finder...

			1. Bottom Depth, 2. Echogram, 3. A-Scope/Fish loupe, 4. Bottom expansion, 5. Depth, transducer coverage area and Gain

				Large echogram memory The large memory capacity in the Simrad ES60 allows many hours of echograms to be stored. The recorded data can be replayed at high speed and presented in a few minutes. The replay can be done with different Gain, TVG and Range settings.

					Split Beam Technology Fishery scientists use this unique Simrad feature world-wide. The 38kHz recording show 40 cm Argentines at more than 400 meter depth. The fish size analyzer (see detail image), depicts true fish size by echo color, and size distribution on a bargraph.
