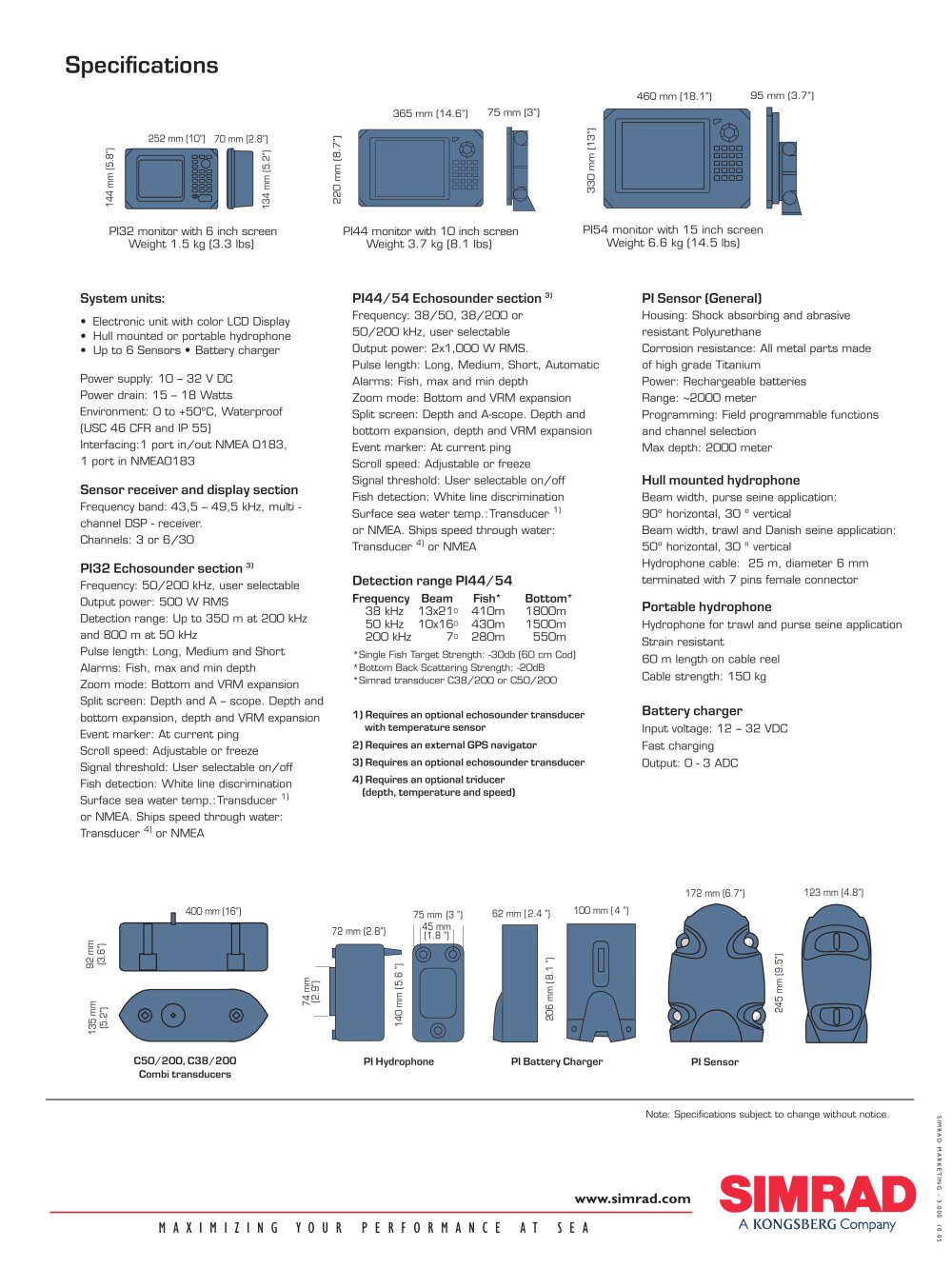

| | | PI44/54 Echosounder section 31 Frequency: 38/50, 38/200 or 50/200 kHz, user selectable □utput power: 2x1,000 W RMS. Pulse length: Long, Medium, Short, Automatic Alarms: Fish, max and min depth Zoom mode: Bottom and VRM expansion Split screen: Depth and A-scope. Depth and bottom expansion, depth and VRM expansion Event marker: At current ping Scroll speed: Adjustable or freeze Signal threshold: User selectable on/off Fish detection: White line discrimination Surface sea water temp.:Transducer 1] or NMEA. Ships speed through water: Transducer 4) or NMEA Detection range PI44/54 Frequency Beam Fish* Bottom* 38 kHz 13x21o 410m 1800m 50 kHz 10x16o 430m 1500m 200 kHz 7o 280m 550m *Single Fish Target Strength: -30db (60 cm Cod] *Bottom Back Scattering Strength: -20dB *Simrad transducer C38/200 or C50/200 1) Requires an optional echosounder transducer with temperature sensor 3) Requires an optional echosounder transducer 4) Requires an optional triducer (depth, temperature and speed) | | |
| | | System units: • Electronic unit with color LCD Display • Hull mounted or portable hydrophone Power supply: 10 - 32 V DC Power drain: 15 - 18 Watts Environment: 0 to +50°C, Waterproof [USC 46 CFR and IP 55) Interfacing^ port in/out NMEA 0183, 1 port in NMEA0183 Sensor receiver and display section Frequency band: 43,5 - 49,5 kHz, multi -channel DSP - receiver Channels: 3 or 6/30 PI32 Echosounder section 31 Frequency: 50/200 kHz, user selectable □utput power: 500 W RMS Detection range: Up to 350 m at 200 kHz and 800 m at 50 kHz Pulse length: Long, Medium and Short Alarms: Fish, max and min depth Zoom mode: Bottom and VRM expansion Split screen: Depth and A - scope. Depth and bottom expansion, depth and VRM expansion Event marker: At current ping Scroll speed: Adjustable or freeze Signal threshold: User selectable on/off Fish detection: White line discrimination Surface sea water temp.:Transducer 1) or NMEA. Ships speed through water: Transducer 4) or NMEA | | | PI Sensor (General) Housing: Shock absorbing and abrasive resistant Polyurethane Corrosion resistance: All metal parts made of high grade Titanium Power: Rechargeable batteries Range: ~2000 meter Programming: Field programmable functions and channel selection Max depth: 2000 meter Hull mounted hydrophone Beam width, purse seine application: 90° horizontal, 30 ° vertical Beam width, trawl and Danish seine application: 50° horizontal, 30 ° vertical Hydrophone cable: 25 m, diameter 6 mm terminated with 7 pins female connector Portable hydrophone Hydrophone for trawl and purse seine application Strain resistant 60 m length on cable reel Cable strength: 150 kg Battery charger Input voltage: 12 - 32 VDC Fast charging □utput: 0 - 3 ADC | | |
