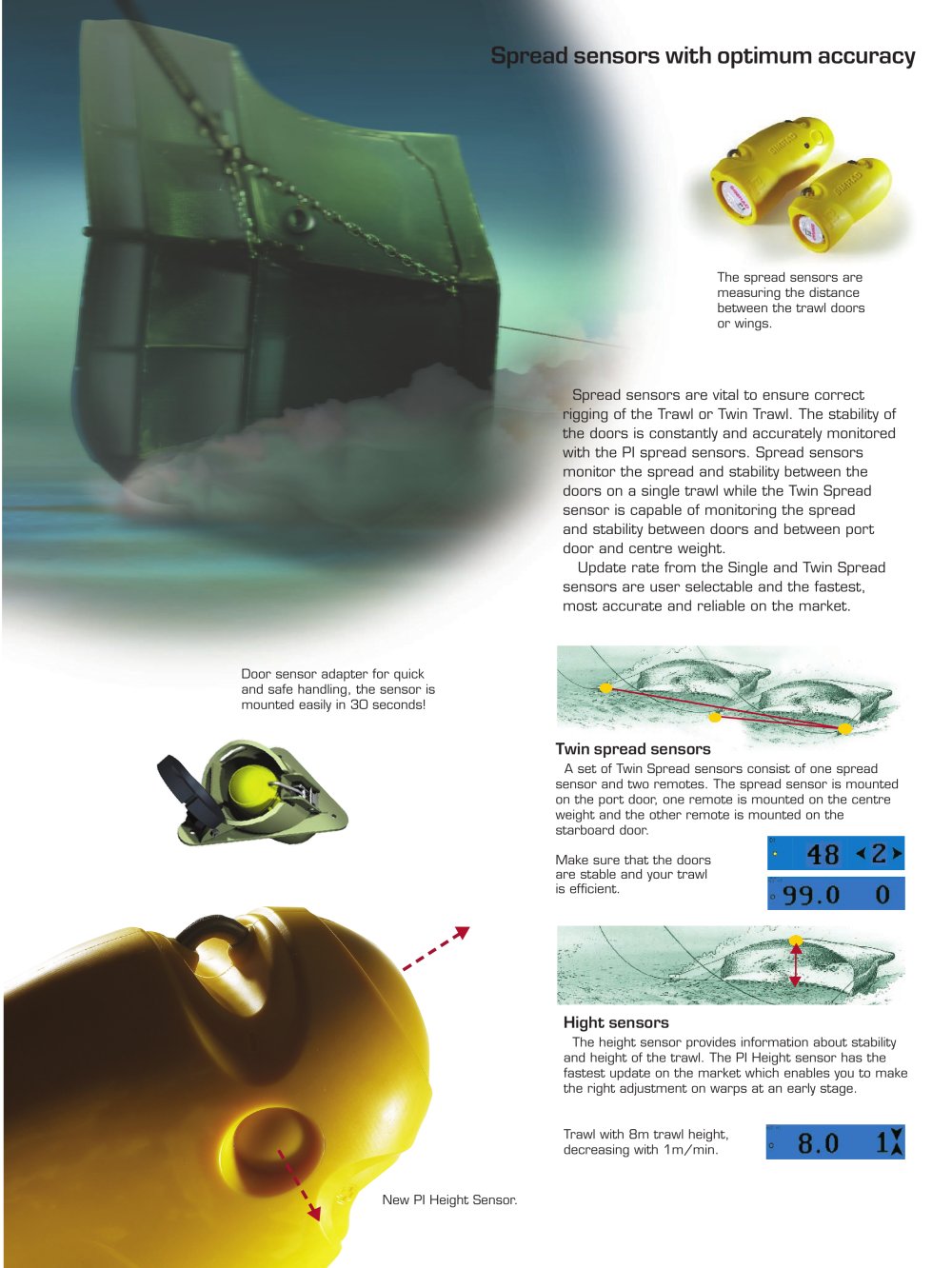

The spread sensors are measuring the distance
between the trawl doors or wings.
■ Spread sensors are vital to ensure correct
■ rigging of the Trawl or Twin Trawl. The stability of the doors is constantly and accurately monitored with the PI spread sensors. Spread sensors monitor the spread and stability between the doors on a single trawl while the Twin Spread sensor is capable of monitoring the spread and stability between doors and between port door and centre weight.
Update rate from the Single and Twin Spread sensors are user selectable and the fastest, most accurate and reliable on the market.
Hight sensors
The height sensor provides information about stability and height of the trawl. The PI Height sensor has the fastest update on the market which enables you to make the right adjustment on warps at an early stage.
Trawl with 8m trawl height, decreasing with 1m/min.
8.0
New PI Height Sensor.
