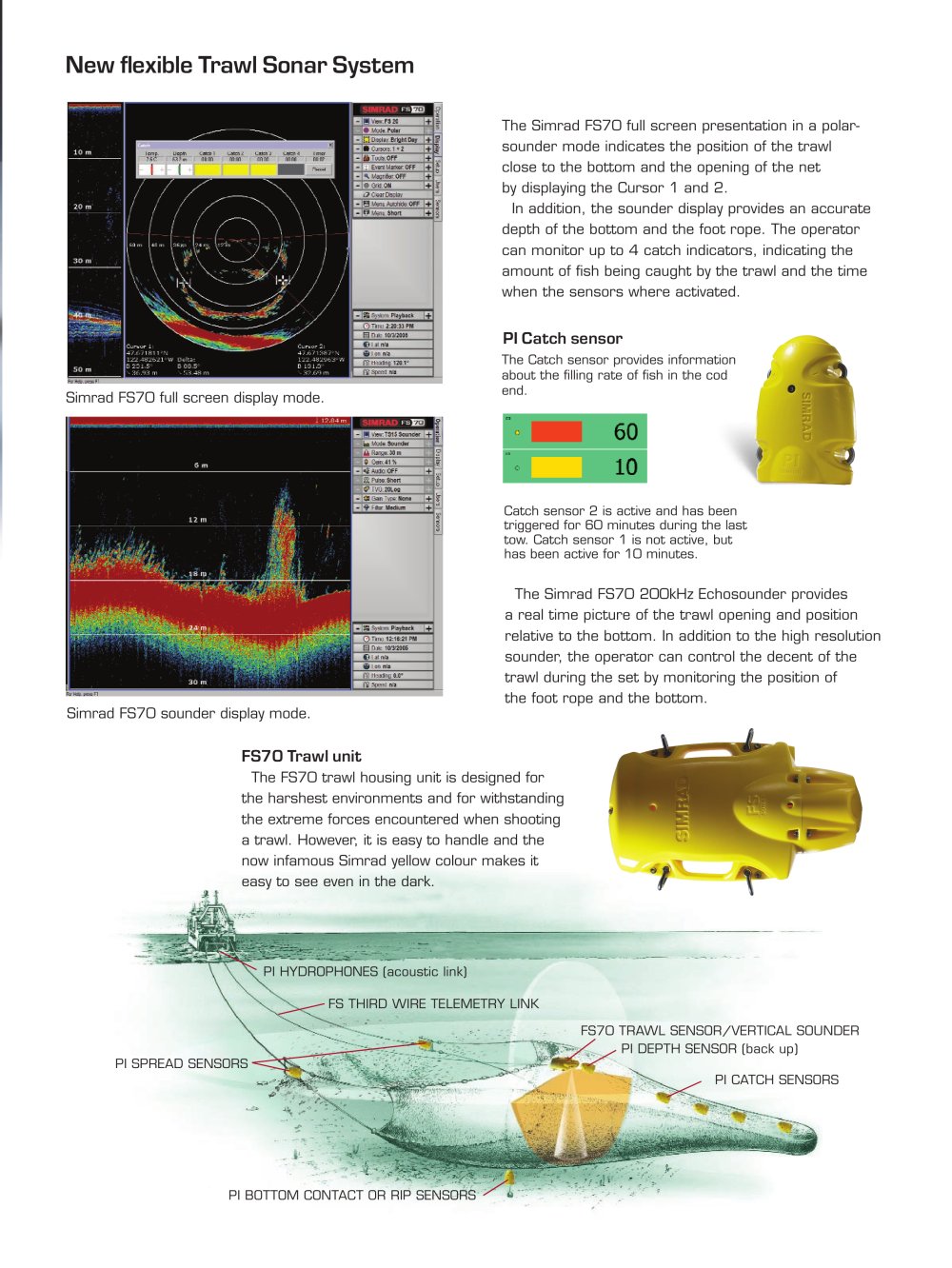

| | | New flexible Trawl Sonar System | | |
| | | |
| | | The Simrad FS70 full screen presentation in a polar-sounder mode indicates the position of the trawl close to the bottom and the opening of the net by displaying the Cursor 1 and 2. In addition, the sounder display provides an accurate depth of the bottom and the foot rope. The operator can monitor up to 4 catch indicators, indicating the amount of fish being caught by the trawl and the time when the sensors where activated. | | |
| | | |
| | | PI Catch sensor The Catch sensor provides information about the filling rate of fish in the cod end. | | |
| | | Simrad FS70 full screen display mode. | | |
| | | |
| | | |
| | | Catch sensor 2 is active and has been triggered for 60 minutes during the last tow. Catch sensor 1 is not active, but has been active for 10 minutes. | | |
| | | |
| | | The Simrad FS70 200kHz Echosounder provides a real time picture of the trawl opening and position relative to the bottom. In addition to the high resolution sounder, the operator can control the decent of the trawl during the set by monitoring the position of the foot rope and the bottom. | | |
| | | |
| | | Simrad FS70 sounder display mode. | | |
| | | |
| | | | | | | | | | | | | | | | |
