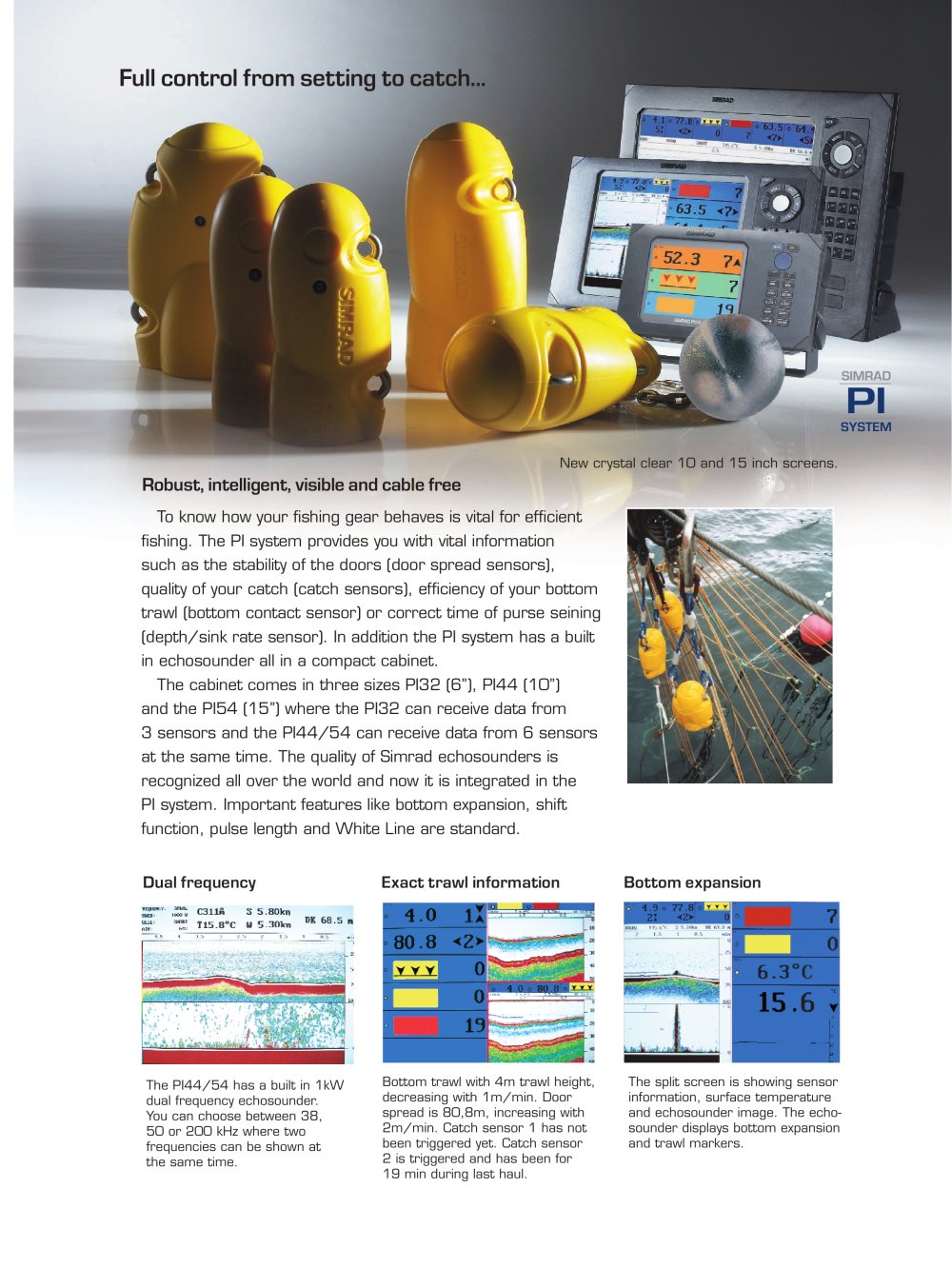

New crystal clear 10 and 15 inch screens.

Robust, intelligent, visible and cable free

To know how your fishing gear behaves is vital for efficient fishing. The PI system provides you with vital information such as the stability of the doors (door spread sensors], quality of your catch (catch sensors], efficiency of your bottom trawl (bottom contact sensor] or correct time of purse seining (depth/sink rate sensor]. In addition the PI system has a built in echosounder all in a compact cabinet.

The cabinet comes in three sizes PI32 (6"], PI44 (10"] and the PI54 (15"] where the PI32 can receive data from 3 sensors and the PI44/54 can receive data from 6 sensors at the same time. The quality of Simrad echosounders is recognized all over the world and now it is integrated in the PI system. Important features like bottom expansion, shift function, pulse length and White Line are standard.

Dual frequency

1ST"" ™ Gil M S 5.Baku 3?' ™ T15.8"C LJ 5.3Dkn

Exact trawl information

Bottom expansion


	, 1 -I 77 e " • '		7

			6.3°C

Bottom trawl with 4m trawl height, decreasing with 1m/min. Door spread is 80,8m, increasing with 2m/min. Catch sensor 1 has not been triggered yet. Catch sensor 2 is triggered and has been for 19 min during last haul.

The split screen is showing sensor information, surface temperature and echosounder image. The echo-sounder displays bottom expansion and trawl markers.

The PI44/54 has a built in 1kW dual frequency echosounder. You can choose between 38, 50 or 200 kHz where two frequencies can be shown at the same time.
