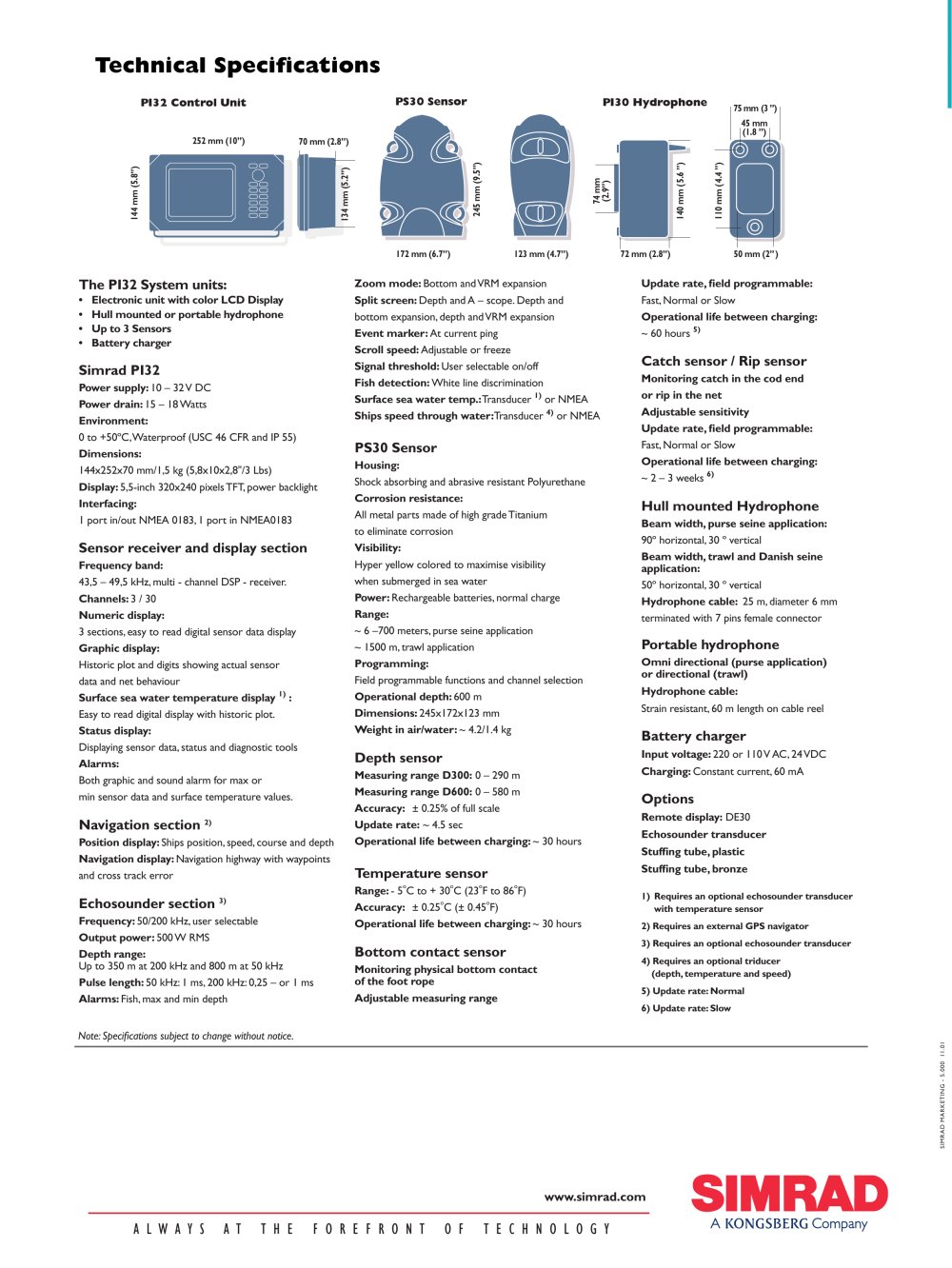

| | | The PI32 System units: • Electronic unit with color LCD Display • Hull mounted or portable hydrophone • Up to 3 Sensors • Battery charger Simrad PI32 Power supply: 10 - 32 V DC Power drain: 15 - 18 Watts Environment: 0 to +50°C,Waterproof (USC 46 CFR and IP 55) Dimensions: 144x252x70 mm/1,5 kg (5,8xl0x2,8"/3 Lbs) Display: 5,5-inch 320x240 pixels TFT,power backlight Interfacing: 1 port in/out NMEA 0183,1 port in NMEA0I83 Frequency band: 43,5 - 49,5 kHz, multi - channel DSP - receiver Channels:3 / 30 Numeric display: 3 sections, easy to read digital sensor data display Graphic display: Historic plot and digits showing actual sensor data and net behaviour Surface sea water temperature display ') : Easy to read digital display with historic plot. Status display: Displaying sensor data, status and diagnostic tools Alarms: Both graphic and sound alarm for max or min sensor data and surface temperature values. Position display: Ships position, speed, course and depth Navigation display: Navigation highway with waypoints and cross track error Echosounder section 3) Frequency: 50/200 kHz, user selectable Output power: 500 W RMS Depth range: Up to 350 m at 200 kHz and 800 m at 50 kHz Pulse length: 50 kHz: I ms, 200 kHz: 0,25 - or I ms Alarms: Fish, max and min depth Note: Specifications subject to change without notice. | | Zoom mode: Bottom and VRM expansion Split screen: Depth and A - scope. Depth and bottom expansion,depth and VRM expansion Event marker: At current ping Scroll speed: Adjustable or freeze Signal threshold: User selectable on/off Fish detection: White line discrimination Surface sea water temp.:Transducer !) or NMEA Ships speed through water:Transducer 4) or NMEA PS30 Sensor Housing: Shock absorbing and abrasive resistant Polyurethane Corrosion resistance: All metal parts made of high grade Titanium to eliminate corrosion Visibility: Hyper yellow colored to maximise visibility when submerged in sea water Power:Rechargeable batteries, normal charge Range: ~ 6 -700 meters, purse seine application ~ 1500 m,trawl application Programming: Field programmable functions and channel selection Operational depth: 600 m Dimensions: 245x172x123 mm Weight in air/water: ~ 4.2/1.4 kg Depth sensor Measuring range D300: 0 - 290 m Measuring range D600: 0 - 580 m Accuracy: ± 0.25% of full scale Update rate: ~ 4.5 sec Operational life between charging: ~ 30 hours Temperature sensor Range: - 5°C to + 30°C (23°F to 86°F) Accuracy: ±0.25°C (± 0.45°F) Operational life between charging: ~ 30 hours | | Update rate,field programmable: Fast, Normal or Slow Operational life between charging: ~ 60 hours 5) Catch sensor / Rip sensor Monitoring catch in the cod end or rip in the net Adjustable sensitivity Update rate,field programmable: Fast, Normal or Slow Operational life between charging: | | |
| | | Hull mounted Hydrophone Beam width,purse seine application: 90° horizontal, 30 ° vertical Beam width,trawl and Danish seine application: 50° horizontal, 30 ° vertical Hydrophone cable: 25 m, diameter 6 mm terminated with 7 pins female connector Portable hydrophone Omni directional (purse application) or directional (trawl) Hydrophone cable: Strain resistant,60 m length on cable reel Battery charger Input voltage: 220 or 110 V AC,24 VDC Charging: Constant current, 60 mA Options Remote display: DE30 Echosounder transducer Stuffing tube, plastic Stuffing tube, bronze 1) Requires an optional echosounder transducer with temperature sensor 3) Requires an optional echosounder transducer 4) Requires an optional triducer (depth,temperature and speed) 5) Update rate: Normal 6) Update rate: Slow | | |
