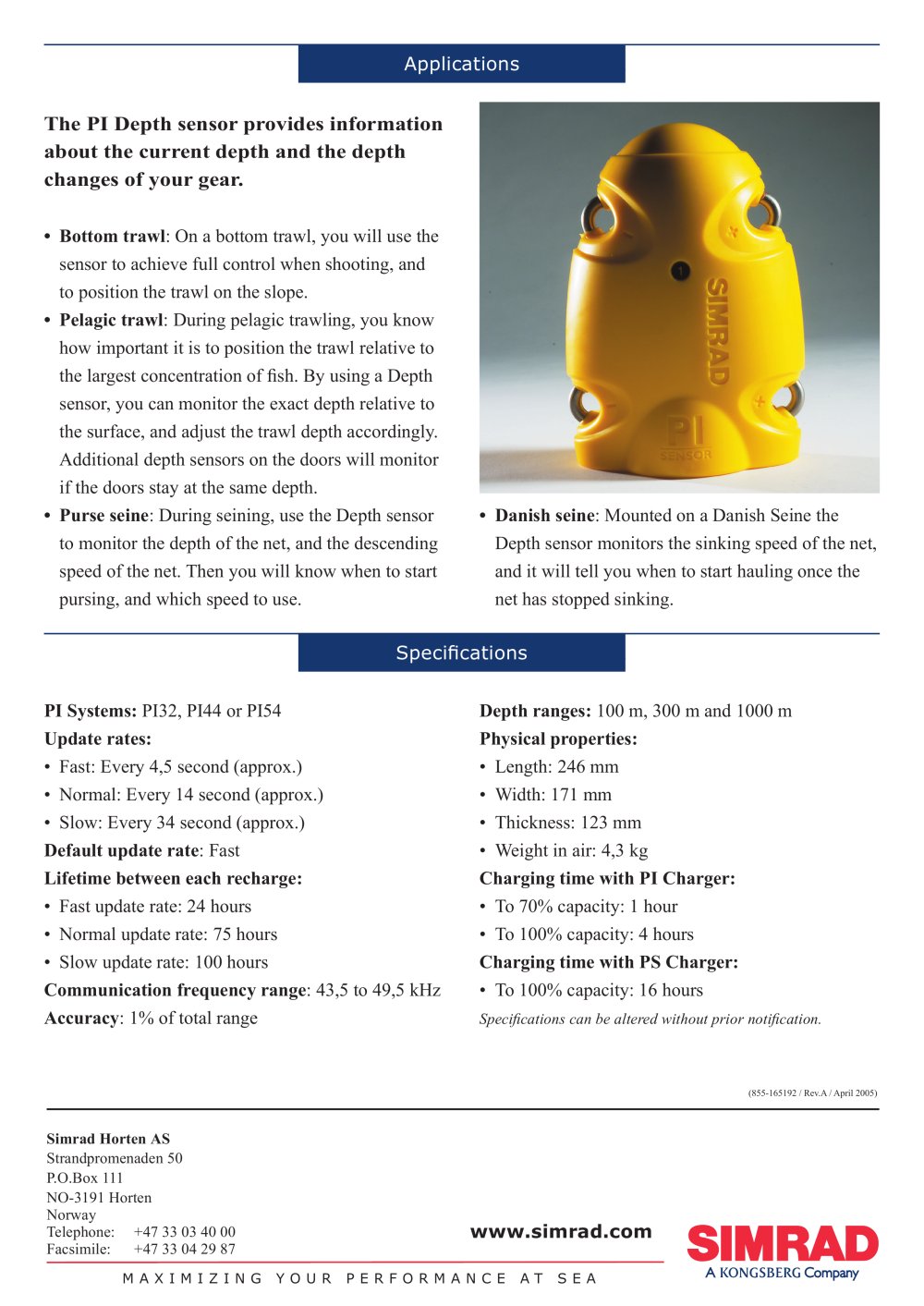

Applications
The PI Depth sensor provides information
about the current depth and the depth changes of your gear.
• Bottom trawl: On a bottom trawl, you will use the sensor to achieve full control when shooting, and to position the trawl on the slope.
• Pelagic trawl: During pelagic trawling, you know how important it is to position the trawl relative to the largest concentration of fish. By using a Depth sensor, you can monitor the exact depth relative to the surface, and adjust the trawl depth accordingly. Additional depth sensors on the doors will monitor if the doors stay at the same depth.
• Purse seine: During seining, use the Depth sensor to monitor the depth of the net, and the descending speed of the net. Then you will know when to start pursing, and which speed to use.
• Danish seine: Mounted on a Danish Seine the Depth sensor monitors the sinking speed of the net, and it will tell you when to start hauling once the net has stopped sinking.
Specifications
Depth ranges: 100 m, 300 m and 1000 m Physical properties:
• Length: 246 mm
• Width: 171 mm
• Thickness: 123 mm
• Weight in air: 4,3 kg
Charging time with PI Charger:
• To 70% capacity: 1 hour
• To 100% capacity: 4 hours
Charging time with PS Charger:
• To 100% capacity: 16 hours
Specifications can be altered without prior notification.
PI Systems: PI32, PI44 or PI54 Update rates:
• Fast: Every 4,5 second (approx.)
• Normal: Every 14 second (approx.)
• Slow: Every 34 second (approx.) Default update rate: Fast Lifetime between each recharge:
• Fast update rate: 24 hours
• Normal update rate: 75 hours
• Slow update rate: 100 hours Communication frequency range: 43,5 to 49,5 kHz Accuracy: 1% of total range
(855-165192 / Rev.A / April 2005)
