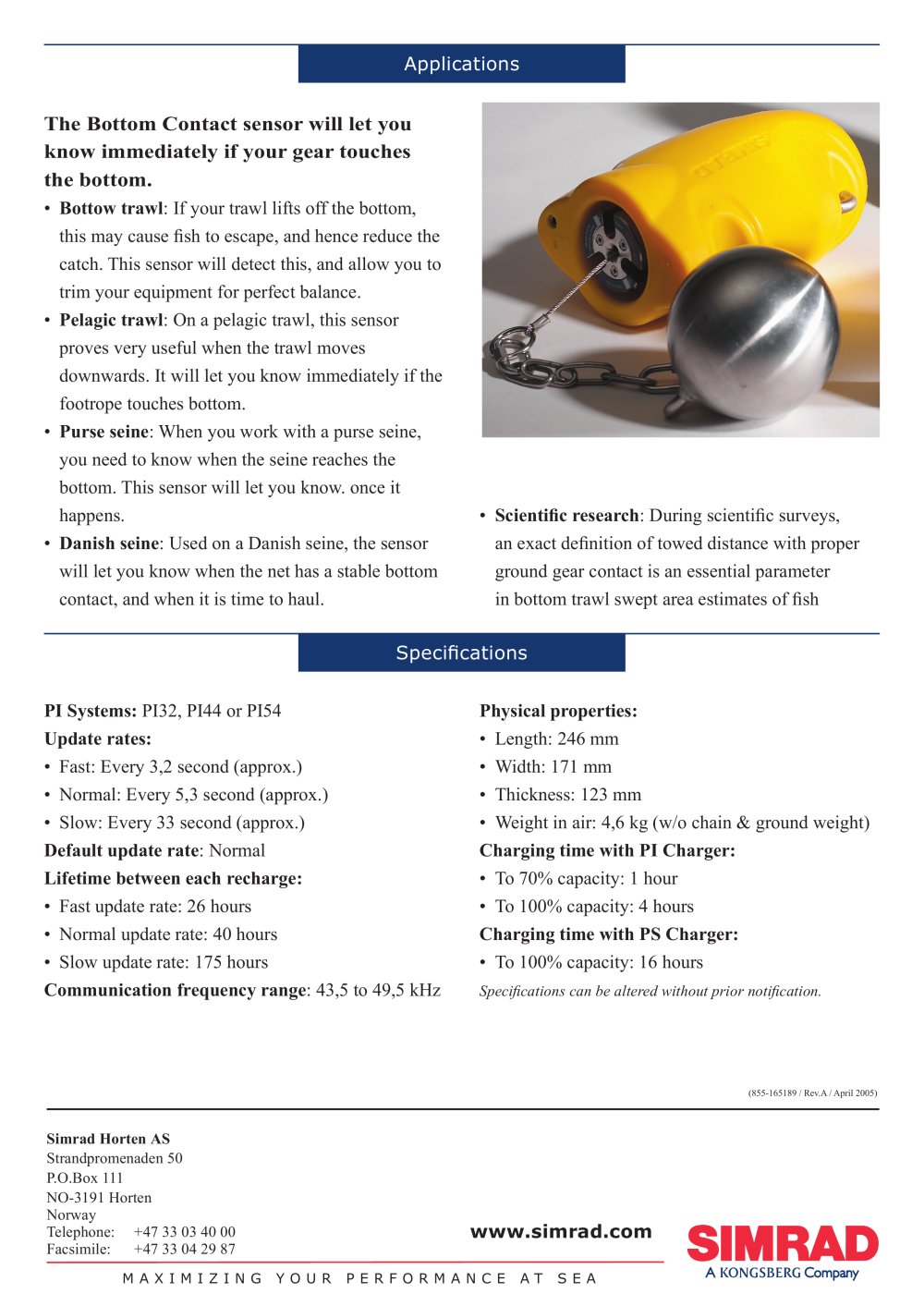

Applications
The Bottom Contact sensor will let you know immediately if your gear touches the bottom.
* Bottow trawl: If your trawl life off the bottom, this may cause fish to escape, and hence reduce the catch. This sensor will detect this, and allow you to trim your equipment for perfect balance.
* Pelagic trawl: On a pelagic trawl, this sensor proves very useful when the trawl moves downwards. It will let you know immediately if the Ibolrope touches bottom.
* Purse seine: When you work with a purse seine, you need to know when the seine reaches the bottom. This sensor will let you know, once it happens.
* Danish seine: Used on a Danish seine, the sensor will let you know when the net has a stable bottom contact, and when it is time to haul.
Scientific research: During scientific surveys, an exact definition of towed distance with proper ground gear contact is an essential parameter in bottom trawl swept area estimates offish
Specifications
PI Systems: PI32. PI44 or PI54 Update rates:
* Fast: Every 3.2 second (approx.)
* Normal: Every 5,3 second (approx.)
* Slow: Every 33 second (approx.) Default update rate: Normal Lifetime between each recharge:
* Fast update rate: 26 hours
* Normal update rate: 40 hours
* Slow update rale: 175 hours
Communication frequency range: 43.5 to 49,5 kHz
Physical properties:
• Length: 246 mm
■ Width: 171 mm
• Thickness: 123 mm
• Weight in air: 4,6 kg (w.-o chain & ground weight) Charging time with PI Boat charger:
• To 70% capacity: 1 hour
• To 100% capacity: 4 hours Charging time with PS Charger:
■ To 100% capacity: 16 hours
Specifications can he altered without prior notification.
Simrad Horten AS
Strandpromenaden 50 P.O.Box 111 N0-3191 Horten Norway
Telephone: +47 33 03 4000 www.sirnrad.com
l-'iicsmiik': +47 33 04 29 X7
SIMRAD
MAXIMIZING YOUR PERFORMANCE AT SEA A KONGSBERG Company
