SIMRAD

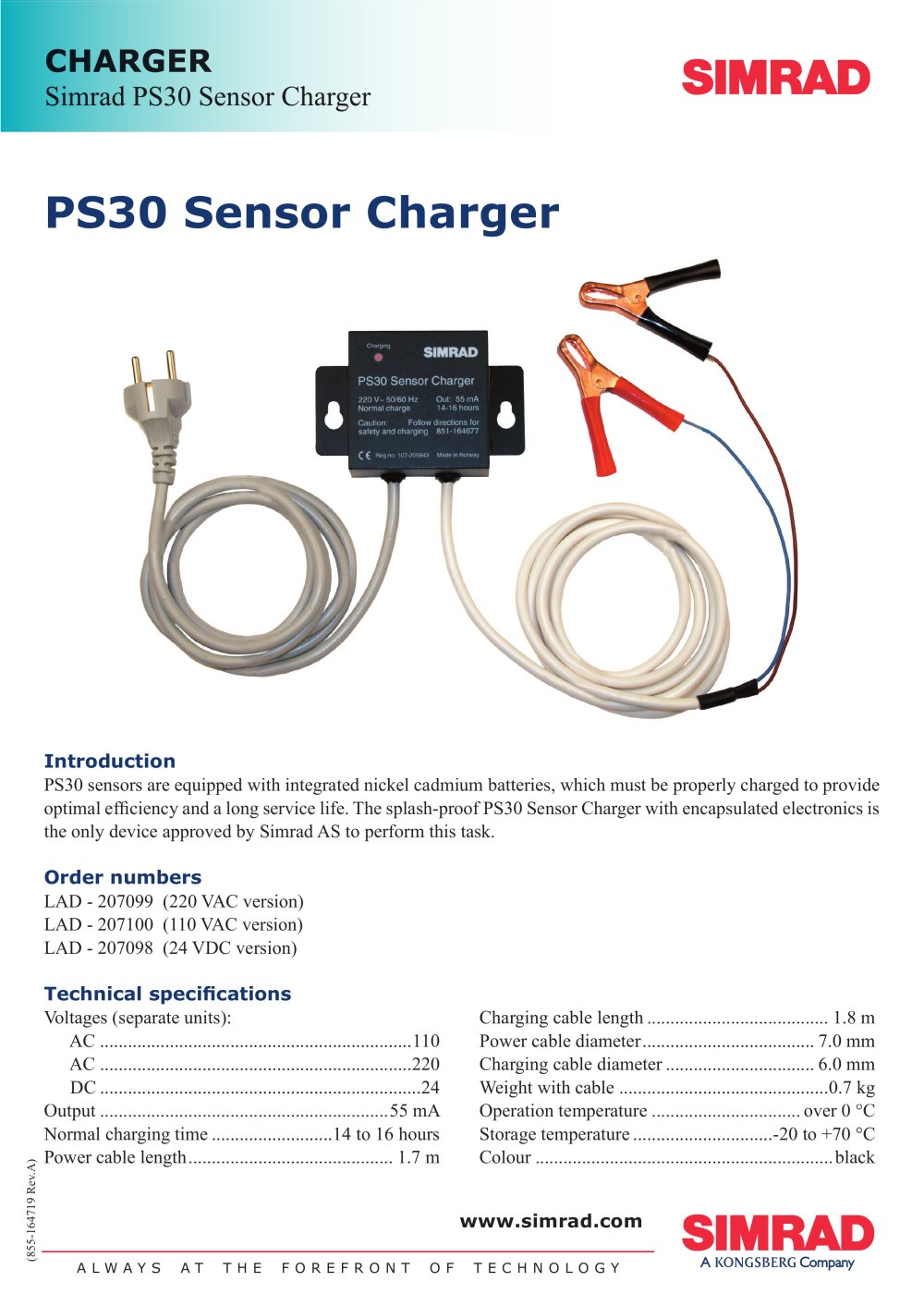

PS30 Sensor Charger
Introduction
PS30 sensors are equipped with integrated nickel cadmium batteries, which must be properly charged to provide optimal efficiency and a long service life. The splash-proof PS30 Sensor Charger with encapsulated electronics is the only device approved by Simrad AS to perform this task.
Order numbers
LAD - 207099 (220 VAC version) LAD - 207100 (110 VAC version) LAD - 207098 (24 VDC version)
Technical specifications
Voltages (separate units):
AC..........................................
AC..........................................
DC..........................................
Output..........................................
Normal charging time..................
Power cable length.......................
Charging cable length.......................................1.8 m
Power cable diameter.....................................7.0 mm
Charging cable diameter................................6.0 mm
Weight with cable.............................................0.7 kg
Operation temperature................................over 0 °C
Storage temperature..............................-20 to +70 °C
Colour................................................................black
..................110
..................220
....................24
.............55 mA
.14 to 16 hours ..............1.7 m
www.simrad.com
SIMRAD
un
Tí
ALWAYS AT THE FOREFRONT OF TECHNOLOGY A KONGSBERG Company
