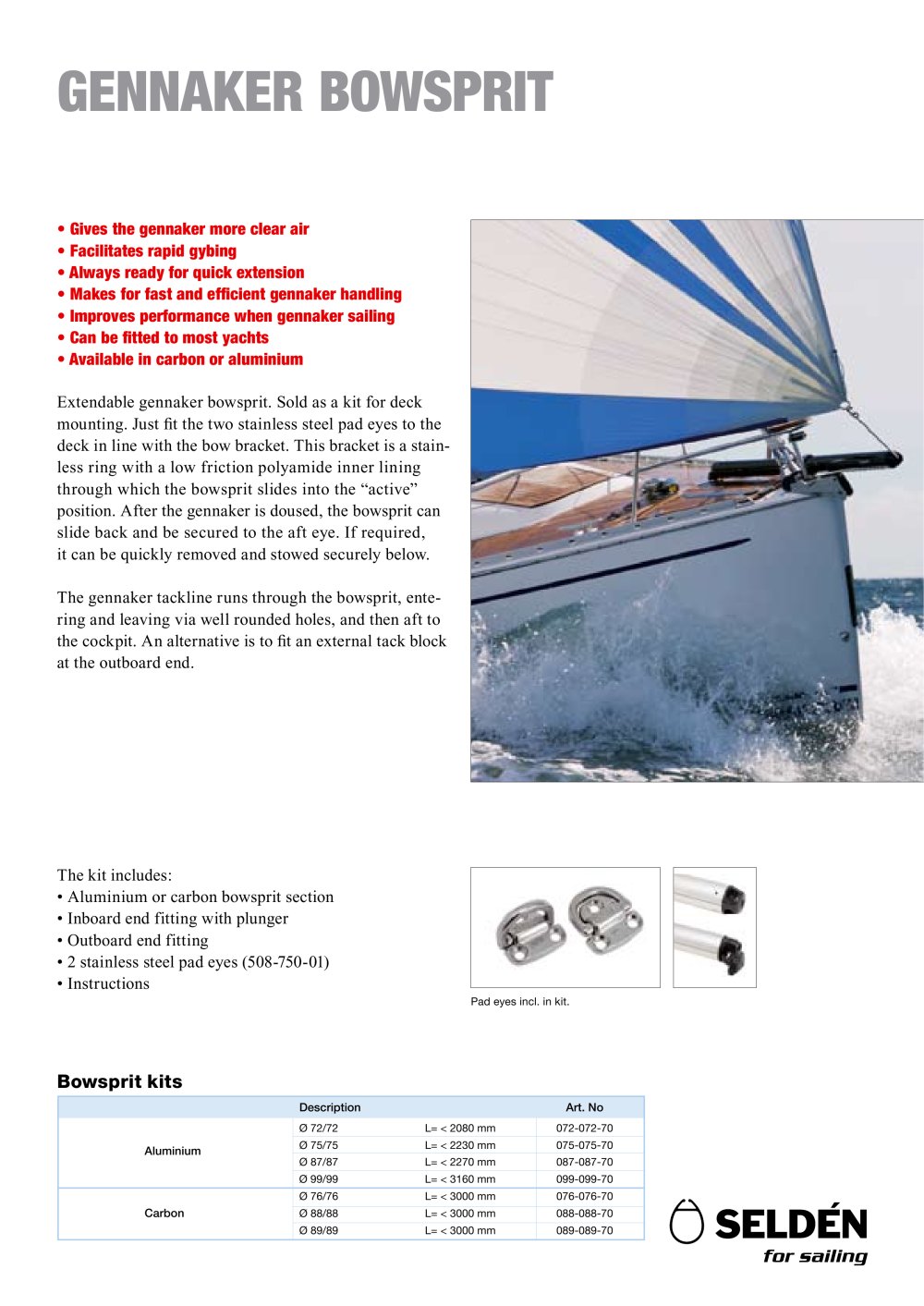

GENNAKER BOWSPRIT ? Gives the gennaker more clear air
? Facilitates rapid gybing
? Always ready for quick extension
? Makes for fast and efficient gennaker handling
? Improves performance when gennaker sailing
? Can be fitted to most yachts
? Available in carbon or aluminium Extendable gennaker bowsprit. Sold as a kit for deck mounting. Just fit the two stainless steel pad eyes to the
deck in line with the bow bracket. This bracket is a stain-
less ring with a low friction polyamide inner lining
through which the bowsprit slides into the ?active?
position. After the gennaker is doused, the bowsprit can
slide back and be secured to the aft eye. If required,
it can be quickly removed and stowed securely below.The gennaker tackline runs through the bowsprit, ente-ring and leaving via well rounded holes, and then aft to
the cockpit. An alternative is to fit an external tack block
at the outboard end. The kit includes:
? Aluminium or carbon bowsprit section
? Inboard end fitting with plunger
? Outboard end fitting? 2 stainless steel pad eyes (508-750-01)? Instructions Pad eyes incl. in kit. Bowsprit kits Description Art. No Ø 72/72 L= < 2080 mm 072-072-70 Aluminium Ø 75/75 L= < 2230 mm 075-075-70 Ø 87/87 L= < 2270 mm 087-087-70 Ø 99/99 L= < 3160 mm 099-099-70 Ø 76/76 L= < 3000 mm 076-076-70 Carbon Ø 88/88 L= < 3000 mm 088-088-70 Ø 89/89 L= < 3000 mm 089-089-70
