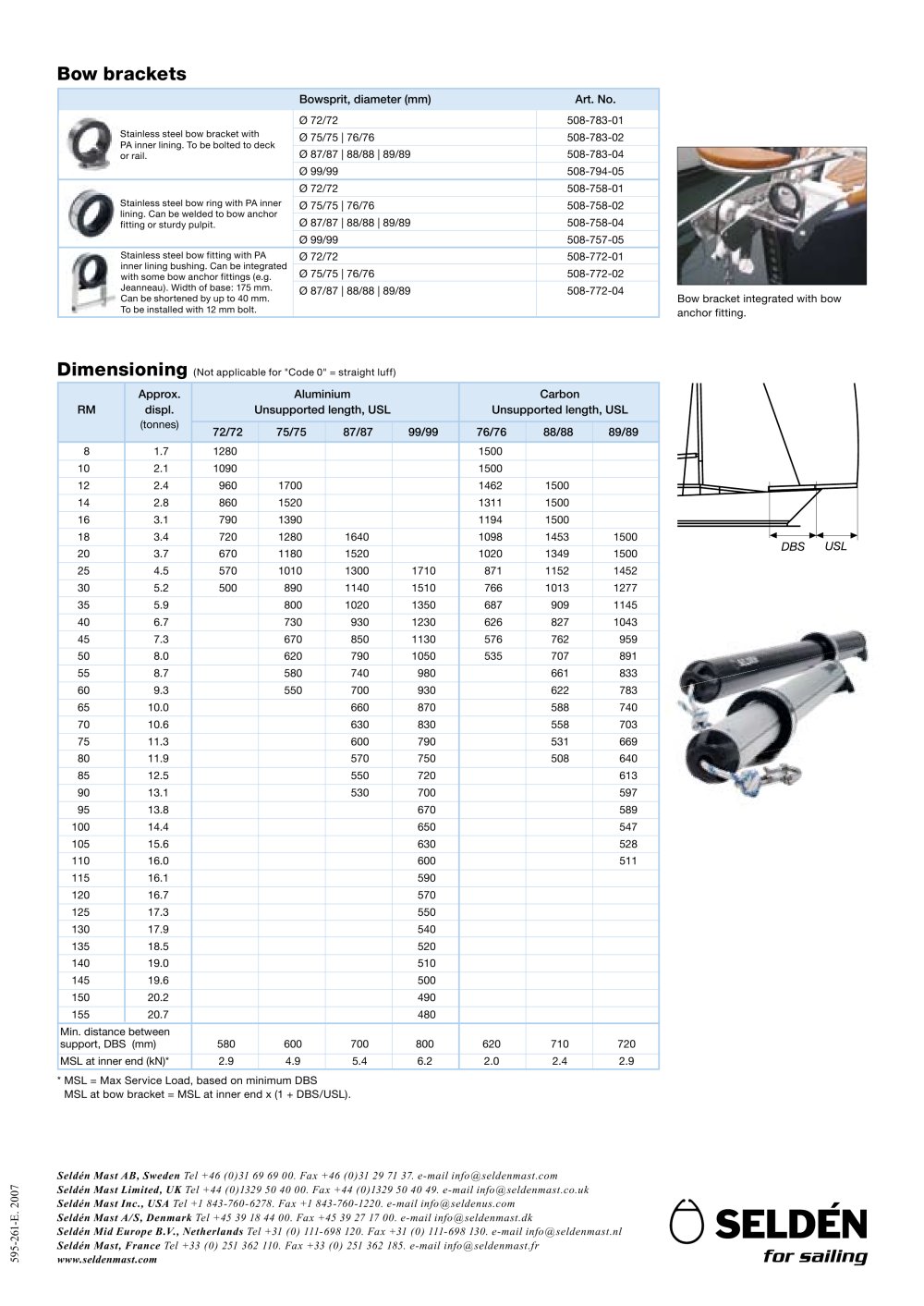

Bow brackets
Bowsprit, diameter (mm) Art. No.
Ø 72/72 508-783-01 Ø 75/75 | 76/76 508-783-02
Ø 87/87 | 88/88 | 89/89 508-783-04
Ø 99/99 508-794-05
Ø 72/72 508-758-01
Ø 75/75 | 76/76 508-758-02
Ø 87/87 | 88/88 | 89/89 508-758-04
Ø 99/99 508-757-05
Ø 72/72 508-772-01
Ø 75/75 | 76/76 508-772-02
Ø 87/87 | 88/88 | 89/89 508-772-04
Stainless steel bow bracket with PA inner lining. To be bolted to deck
or rail.Stainless steel bow ring with PA inner lining. Can be welded to bow anchor
fitting or sturdy pulpit.Stainless steel bow fitting with PA inner lining bushing. Can be integrated
with some bow anchor fittings (e.g.
Jeanneau). Width of base: 175 mm.
Can be shortened by up to 40 mm.
To be installed with 12 mm bolt. Bow bracket integrated with bow anchor fitting.
Dimensioning
(Not applicable for "Code 0" = straight luff) Approx. Aluminium Carbon RM displ. Unsupported length, USL Unsupported length, USL
(tonnes)
72/72 75/75 87/87 99/99 76/76 88/88 89/89
8 1.7 1280 1500 10 2.1 1090 1500
12 2.4 960 1700 1462 1500
14 2.8 860 1520 1311 1500
16 3.1 790 1390 1194 1500
18 3.4 720 1280 1640 1098 1453 1500
20 3.7 670 1180 1520 1020 1349 1500
25 4.5 570 1010 1300 1710 871 1152 1452
30 5.2 500 890 1140 1510 766 1013 1277
35 5.9 800 1020 1350 687 909 1145
40 6.7 730 930 1230 626 827 1043
45 7.3 670 850 1130 576 762 959
50 8.0 620 790 1050 535 707 891
55 8.7 580 740 980 661 833
60 9.3 550 700 930 622 783
65 10.0 660 870 588 740
70 10.6 630 830 558 703
75 11.3 600 790 531 669
80 11.9 570 750 508 640
85 12.5 550 720 613
90 13.1 530 700 597
95 13.8 670 589
100 14.4 650 547
105 15.6 630 528
110 16.0 600 511
115 16.1 590
120 16.7 570
125 17.3 550
130 17.9 540
135 18.5 520
140 19.0 510
145 19.6 500
150 20.2 490
155 20.7 480
Min. distance between support, DBS (mm) 580 600 700 800 620 710 720 MSL at inner end (kN)* 2.9 4.9 5.4 6.2 2.0 2.4 2.9 * MSL = Max Service Load, based on minimum DBS MSL at bow bracket = MSL at inner end x (1 + DBS/USL). Seldén Mast AB, Sweden Tel +46 (0)31 69 69 00. Fax +46 (0)31 29 71 37. e-mail info@seldenmast.com Seldén Mast Limited, UK Tel +44 (0)1329 50 40 00. Fax +44 (0)1329 50 40 49. e-mail info@seldenmast.co.uk Seldén Mast Inc., USA Tel +1 843-760-6278. Fax +1 843-760-1220. e-mail info@seldenus.com Seldén Mast A/S, Denmark Tel +45 39 18 44 00. Fax +45 39 27 17 00. e-mail info@seldenmast.dk Seldén Mid Europe B.V., Netherlands Tel +31 (0) 111-698 120. Fax +31 (0) 111-698 130. e-mail info@seldenmast.nl Seldén Mast, France Tel +33 (0) 251 362 110. Fax +33 (0) 251 362 185. e-mail info@seldenmast.fr
