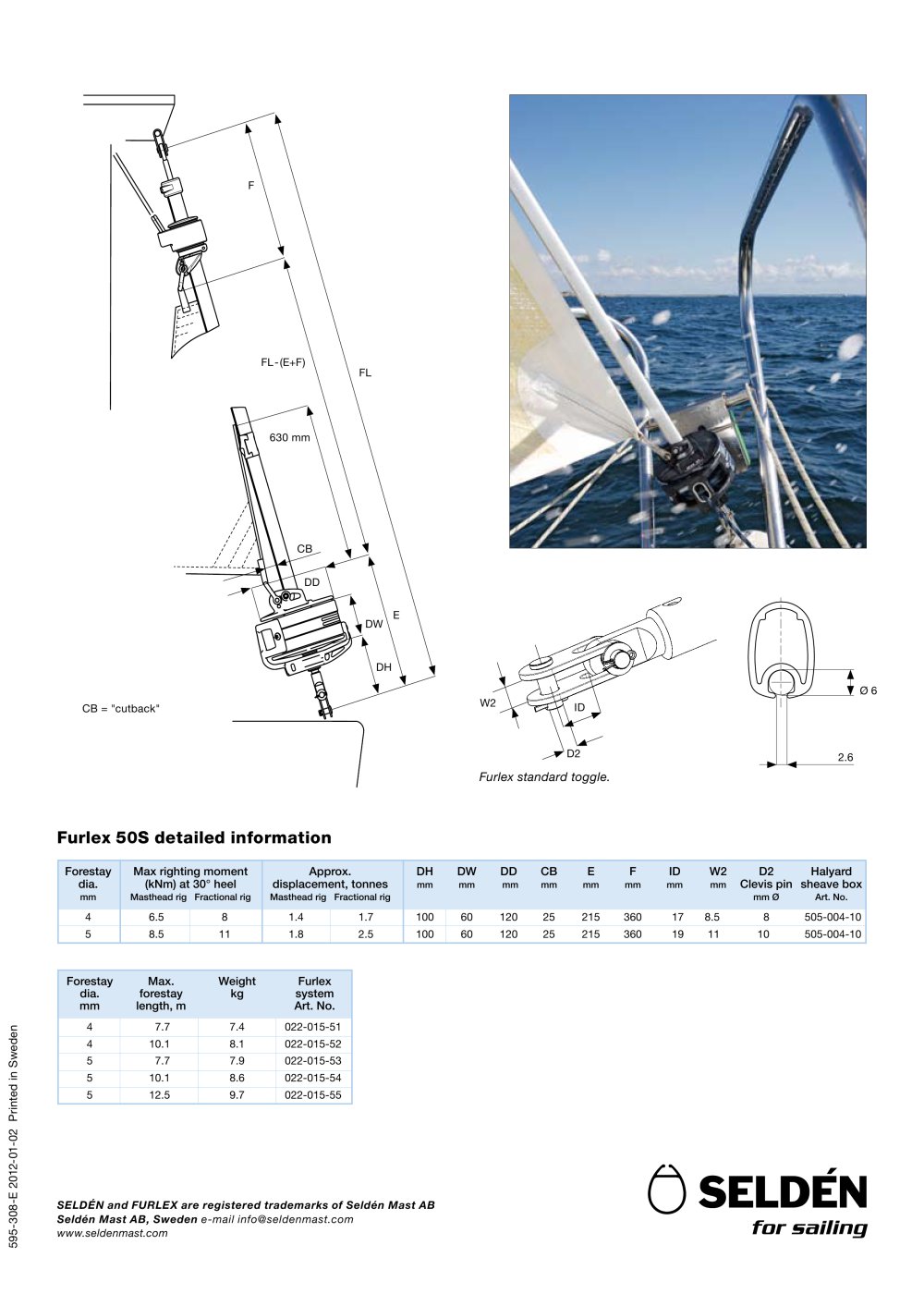

Furlex standard toggle.

Furlex 50S detailed information

Forestay Max righting moment Approx. DH DW DD CB E F ID W2 D2 Halyard dia. (kNm) at 30° heel displacement, tonnes

mm mm mm mm mm mm mm mm

Clevis pin sheave box

mm Masthead rig Fractional rig Masthead rig Fractional rig mm Ø Art. No. 4 6.5 8 1.4 1.7 100 60 120 25 215 360 17 8.5 8 505-004-10 5 8.5 11 1.8 2.5 100 60 120 25 215 360 19 11 10 505-004-10

Forestay Max. Weight Furlex dia. forestay kg system mm length, m Art. No.

4 7.7 7.4 022-015-51 4 10.1 8.1 022-015-52 5 7.7 7.9 022-015-53 5 10.1 8.6 022-015-54 5 12.5 9.7 022-015-55 Seldén Mast AB, Sweden Tel +46 (0)31 69 69 00. Fax +46 (0)31 29 71 37. e-mail info@seldenmast.com Seldén Mast Limited, UK Tel +44 (0)1329 50 40 00. Fax +44 (0)1329 50 40 49. e-mail info@seldenmast.co.uk Seldén Mast Inc., USA Tel +1 843-760-6278. Fax +1 843-760-1220. e-mail info@seldenus.com Seldén Mast A/S, Denmark Tel +45 39 18 44 00. Fax +45 39 27 17 00. e-mail info@seldenmast.dk Seldén Mid Europe B.V., Netherlands Tel +31 (0) 111-698 120. Fax +31 (0) 111-698 130. e-mail info@seldenmast.nl
