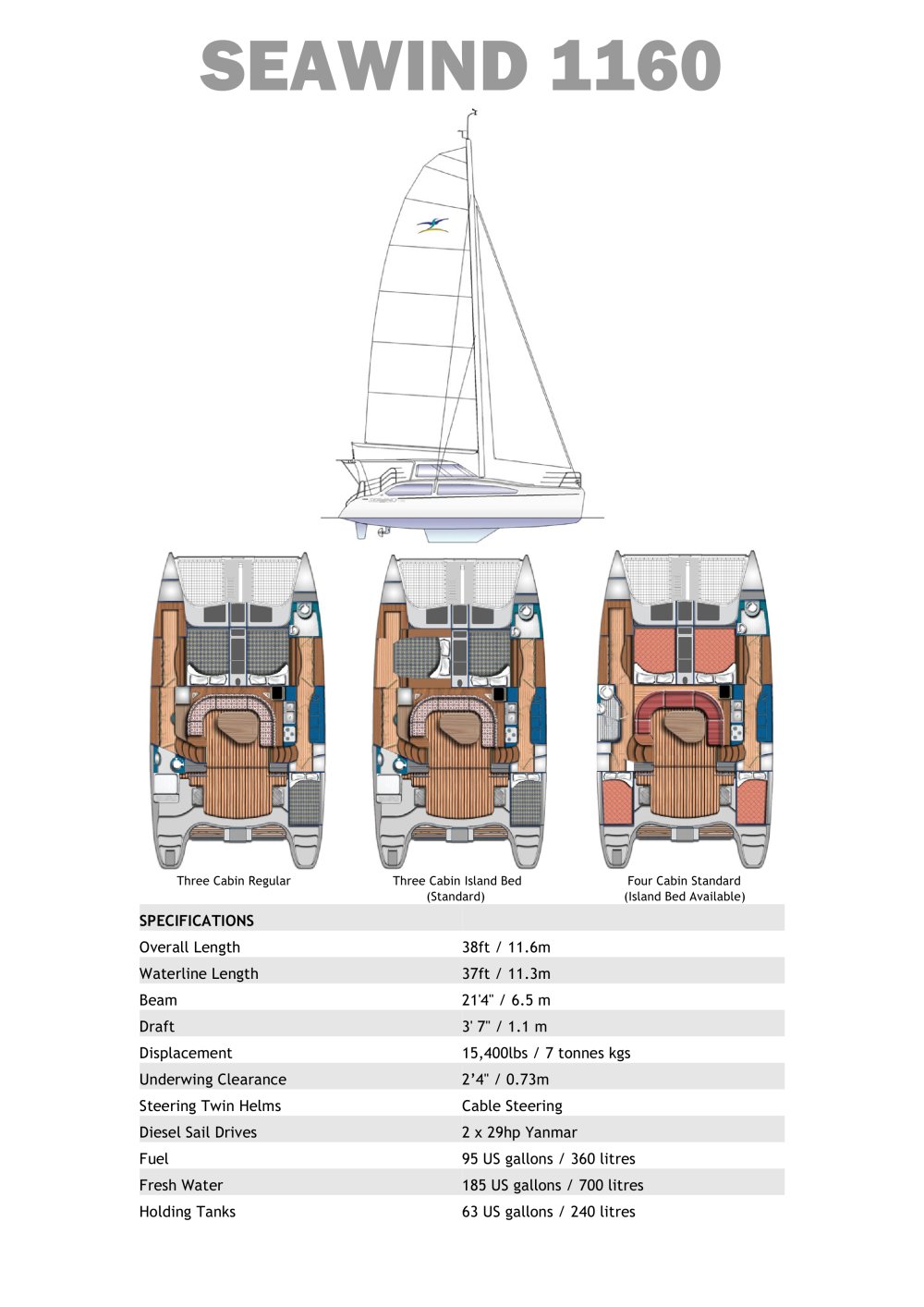

Seawind 1160 Standard Specifications-1

Three Cabin Regular Overall Length Waterline Length Underwing Clearance Steering Twin Helms Diesel Sail Drives Fresh Water Holding Tanks Three Cabin Island Bed Four Cabin Standard Cable Steering

 Open the catalog to page 1
Seawind 1160 Standard Specifications-2

STANDARD SPECIFICATIONS AND EQUIPMENT. 1. GENERAL: The overall finish of the Seawind 1160 will be consistent with a luxury world-standard yacht of this size and type. Only very high quality equipment is used throughout. The overall aim is for a level of construction, workmanship, equipment, fitout and style that surpasses any other comparable catamaran available in the market at this price range. Finish: Full female moulded hulls 6 decks, exterior gelcoat finish with moulded-in non-slip surface on deck Hull Laminate: Vinyl Ester (Modified epoxy) resin laminate of the hulls between the gelcoat...

 Open the catalog to page 2
Seawind 1160 Standard Specifications-3

• Twin helm stations : 2 X 32" stainless steel steering wheels. • Both wheels independently linked to steering system. - system offers back-up redundancy. • Helm seats with ice box under port side and storage under starboard side. • Polished beech 6 beech laminate interior. • Sides and cabin top lined with vinyl or moulded gelcoat. • Floors : Common area soles simulated teak with holly inlay; Cabin soles carpeted. • Ornate polished timber dining table: Lowers to create coffee table or double bed. • Upholstered settee. • Cocktail cabinet with ornate polished hinging lid. • Forward opening windows...

 Open the catalog to page 3
Seawind 1160 Standard Specifications-4

• Survey approved navigation lights. Port & Starboard mounted on bow rails. • Deck floodlight mounted on spreaders. • Mast head anchor / riding light. 15. PLUMBING / FRESH WATER TANKS: • Pressure hot & cold water system. Hot water storage system ( 40 litre / 8.8 gallons) . Hot & cold water to galley and both bathrooms. • Galley fresh water tap is lever type ( Flickmaster or similar). • Fresh water tank: 750 litres ( 165 gallons). Remote deck filler. • Electric fresh water pump. • Electric bilge pumps (2) with controls integral with master battery switch panel. Float Switches (2). • Manual bilge...

 Open the catalog to page 4
