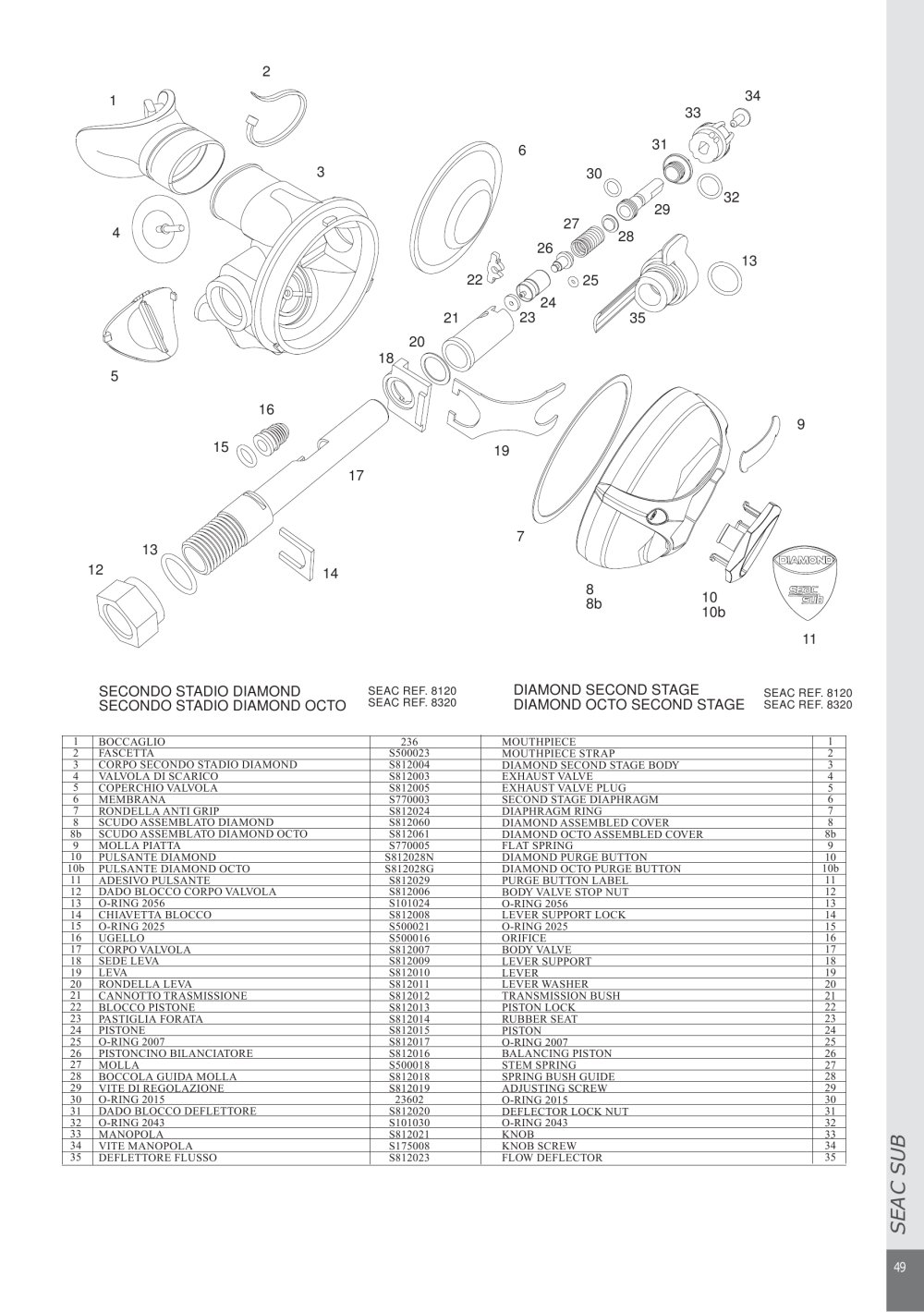

SECONDO STADIO DIAMOND seac ref. 8120 DIAMOND SECOND STAGE seac ref 8120

SECONDO STADIO DIAMOND OCTO seac ref. 8320 DIAMOND OCTO SECOND STAGE seac ref 8320


1	BOCCAGLIO	236	MOUTHPIECE	1
2	FASCETTA	S500023	MOUTHPIECE STRAP	2
3	CORPO SECONDO STADIO DIAMOND	S812004	DIAMOND SECOND STAGE BODY	3
4	VALVOLA DI SCARICO	S812003	EXHAUST VALVE	4
5	COPERCHIO VALVOLA	S812005	EXHAUST VALVE PLUG	5
6	MEMBRANA	S770003	SECOND STAGE DIAPHRAGM	6
7	RONDELLA ANTI GRIP	S812024	DIAPHRAGM RING	7
8	SCUDO ASSEMBLATO DIAMOND	S812060	DIAMOND ASSEMBLED COVER	8
8b	SCUDO ASSEMBLATO DIAMOND OCTO	S812061	DIAMOND OCTO ASSEMBLED COVER	8b
9	MOLLA PIATTA	S770005	FLAT SPRING	9
10	PULSANTE DIAMOND	S812028N	DIAMOND PURGE BUTTON	10
10b	PULSANTE DIAMOND OCTO	S812028G	DIAMOND OCTO PURGE BUTTON	10b
11	ADESIVO PULSANTE	S812029	PURGE BUTTON LABEL	11
12	DADO BLOCCO CORPO VALVOLA	S812006	BODY VALVE STOP NUT	12
13	O-RING 2056	S101024	O-RING 2056	13
14	CHIAVETTA BLOCCO	S812008	LEVER SUPPORT LOCK	14
15	O-RING 2025	S500021	O-RING 2025	15
16	UGELLO	S500016	ORIFICE	16
17	CORPO VALVOLA	S812007	BODY VALVE	17
18	SEDELEVA	S812009	LEVER SUPPORT	18
19	LEVA	S812010	LEVER	19
20	RONDELLA LEVA	S812011	LEVER WASHER	20
21	CANNOTTO TRASMISSIONE	S812012	TRANSMISSION BUSH	21
22	BLOCCO PISTONE	S812013	PISTON LOCK	22
23	PASTIGLIA FORATA	S812014	RUBBER SEAT	23
24	PISTONE	S812015	PISTON	24
25	O-RING 2007	S812017	O-RING 2007	25
26	PISTONCINO BILANCIATORE	S812016	BALANCING PISTON	26
27	MOLLA	S500018	STEM SPRING	27
28	BOCCOLA GUIDA MOLLA	S812018	SPRING BUSH GUIDE	28
29	VITE DI REGOLAZIONE	S812019	ADJUSTING SCREW	29
30	O-RING 2015	23602	O-RING 2015	30
31	DADO BLOCCO DEFLETTORE	S812020	DEFLECTOR LOCK NUT	31
32	O-RING 2043	S101030	O-RING 2043	32
33	MANOPOLA	S812021	KNOB	33
34	VITE MANOPOLA	S175008	KNOB SCREW	34
35	DEFLETTORE FLUSSO	S812023	FLOW DEFLECTOR	35
