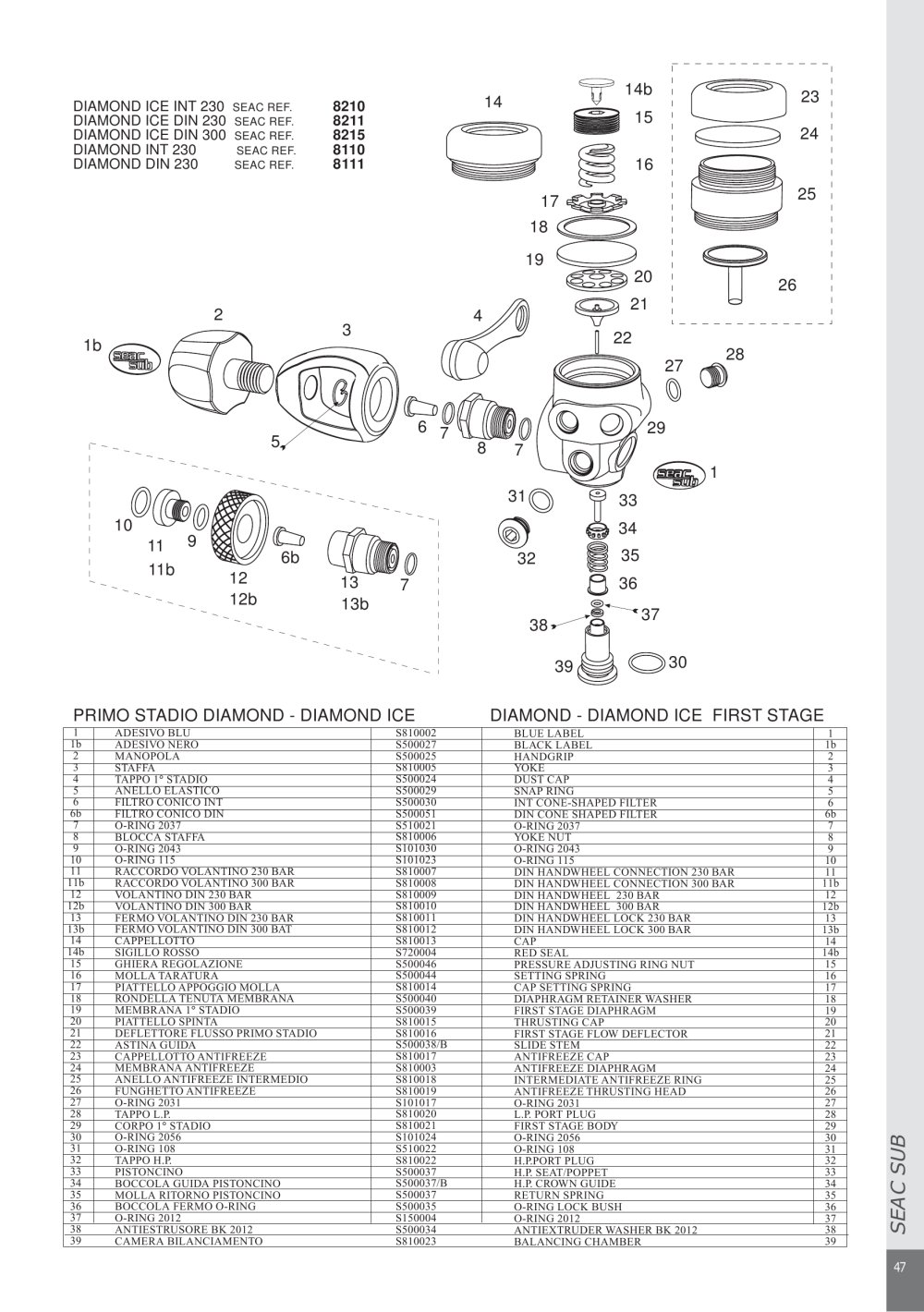

PRIMO STADIO DIAMOND - DIAMOND ICE

DIAMOND - DIAMOND ICE FIRST STAGE


1	ADESIVO BLU	S810002	BLUE LABEL	1
1b	ADESIVO NERO	S500027	BLACK LABEL	1b
~2	MANOPOLA	S500025	HANDGRIP	2
	STAFFA	S810005	YOKE	3
~4	TAPPO 1° STADIO	S500024	DUST CAP	4
~5	ANELLO ELASTICO	S500029	SNAP RING	5
~6	FILTRO CONICO INT	S500030	INT CONE-SHAPED FILTER	6
	FILTRO CONICO DIN	S500051	DIN CONE SHAPED FILTER	6b
"1	O-RING 2037	S510021	O-RING 2037	7
~8	BLOCCA STAFFA	S810006	YOKE NUT	8
~9	O-RING 2043	S101030	O-RING 2043	9
~10	O-RING 115	S101023	O-RING 115	10
11	RACCORDO VOLANTINO 230 BAR	S810007	DIN HANDWHEEL CONNECTION 230 BAR	11
11b	RACCORDO VOLANTINO 300 BAR	S810008	DIN HANDWHEEL CONNECTION 300 BAR	11b
	VOLANTINO DIN 230 BAR	S810009	DIN HANDWHEEL 230 BAR	12
T2b~	VOLANTINO DIN 300 BAR	S810010	DIN HANDWHEEL 300 BAR	12b
~13	FERMO VOLANTINO DIN 230 BAR	S810011	DIN HANDWHEEL LOCK 230 BAR	13
T3T^	FERMO VOLANTINO DIN 300 BAT	S810012	DIN HANDWHEEL LOCK 300 BAR	13b
~T4	CAPPELLOTTO	S810013	CAP	14
T4b~	SIGILLO ROSSO	S720004	RED SEAL	14b
15	GHIERA REGOLAZIONE	S500046	PRESSURE ADJUSTING RING NUT	15
~16	MOLLA TARATURA	S500044	SETTING SPRING	16
T7	PIATTELLO APPOGGIO MOLLA	S810014	CAP SETTING SPRING	17
T8~	RONDELLA TENUTA MEMBRANA	S500040	DIAPHRAGM RETAINER WASHER	18
19	MEMBRANA 1° STADIO	S500039	FIRST STAGE DIAPHRAGM	19
20	PIATTELLO SPINTA	S810015	THRUSTING CAP	20
"21	DEFLETTORE FLUSSO PRIMO STADIO	S810016	FIRST STAGE FLOW DEFLECTOR	21
22	ASTINA GUIDA	S500038/B	SLIDE STEM	22
23	CAPPELLOTTO ANTIFREEZE	S810017	ANTIFREEZE CAP	23
24	MEMBRANA ANTIFREEZE	S810003	ANTIFREEZE DIAPHRAGM	24
25	ANELLO ANTIFREEZE INTERMEDIO	S810018	INTERMEDIATE ANTIFREEZE RING	25
26	FUNGHETTO ANTIFREEZE	S810019	ANTIFREEZE THRUSTING HEAD	26
27	O-RING 2031	S101017	O-RING 2031	27
28	TAPPO L.P.	S810020	L.P. PORT PLUG	28
29	CORPO 1° STADIO	S810021	FIRST STAGE BODY	29
30	O-RING 2056	S101024	O-RING 2056	30
31	O-RING 108	S510022	O-RING 108	31
32	TAPPO H.P.	S810022	H.P.PORT PLUG	32
33	PISTONCINO	S500037	H.P. SEAT/POPPET	33
34	BOCCOLA GUIDA PISTONCINO	S500037/B	H.P. CROWN GUIDE	34
35	MOLLA RITORNO PISTONCINO	S500037	RETURN SPRING	35
36	BOCCOLA FERMO O-RING	S500035	O-RING LOCK BUSH	36
37	O-RING 2012	S150004	O-RING 2012	37
38	ANTIESTRUSORE BK 2012	S500034	ANTIEXTRUDER WASHER BK 2012	38
39	CAMERA BILANCIAMENTO	S810023	BALANCING CHAMBER	39
