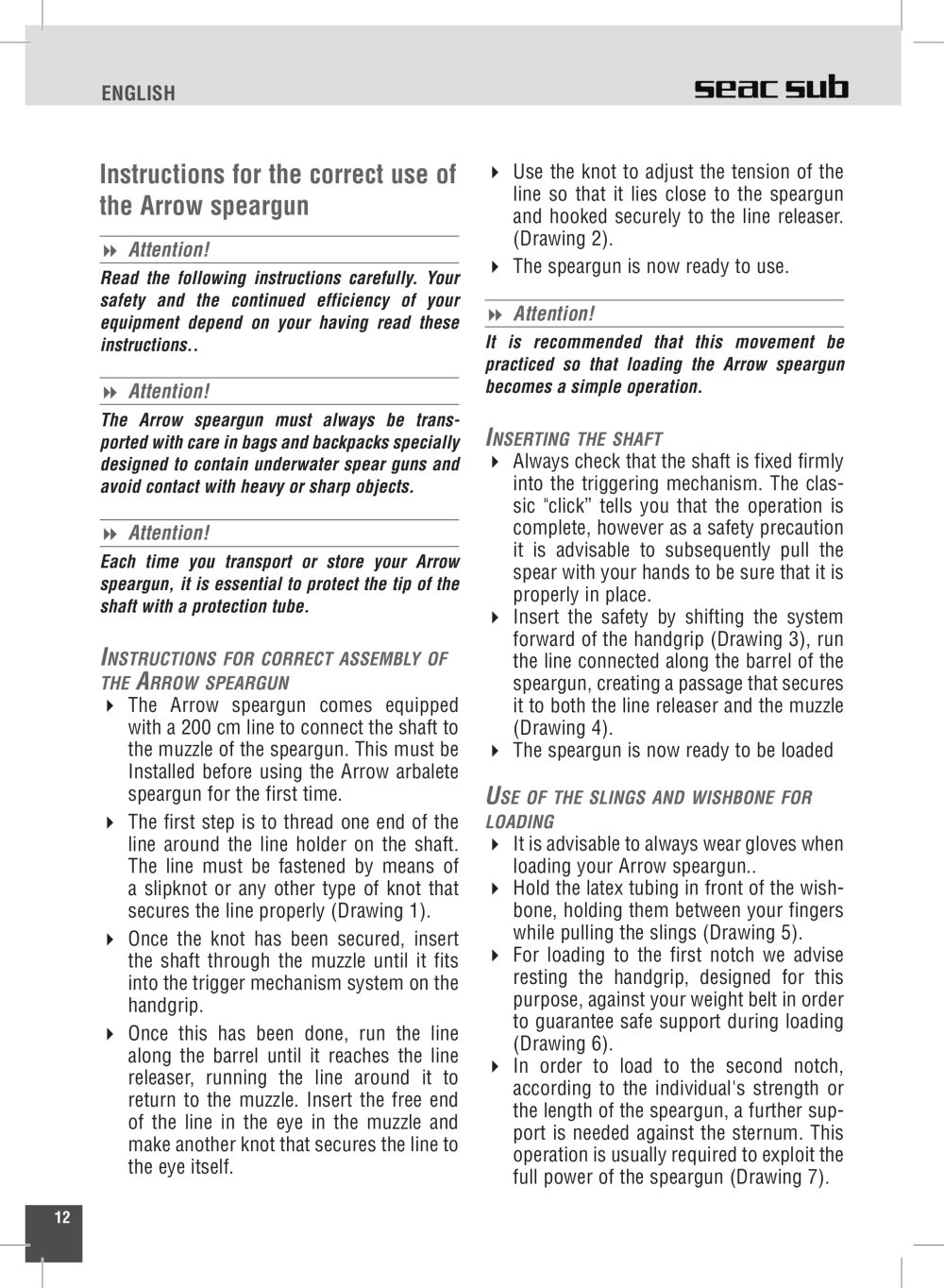

Instructions for the correct use of the Arrow speargun

Use the knot to adjust the tension of the line so that it lies close to the speargun and hooked securely to the line releaser. (Drawing 2).The speargun is now ready to use. Attention!

Read the following instructions carefully. Your safety and the continued efficiency of your equipment depend on your having read these instructions..

Attention!

It is recommended that this movement be practiced so that loading the Arrow speargun becomes a simple operation.

Attention!

The Arrow speargun must always be trans-ported with care in bags and backpacks specially designed to contain underwater spear guns and avoid contact with heavy or sharp objects.

I

NSERTING THE SHAFT

Always check that the shaft is fixed firmly into the triggering mechanism. The clas- sic "click” tells you that the operation is complete, however as a safety precaution it is advisable to subsequently pull the spear with your hands to be sure that it is properly in place. Insert the safety by shifting the system forward of the handgrip (Drawing 3), run the line connected along the barrel of the speargun, creating a passage that secures it to both the line releaser and the muzzle (Drawing 4). The speargun is now ready to be loaded Attention!

Each time you transport or store your Arrow speargun, it is essential to protect the tip of the shaft with a protection tube.

I

NSTRUCTIONS FOR CORRECT ASSEMBLY OF THE

A

RROW SPEARGUN

The Arrow speargun comes equipped with a 200 cm line to connect the shaft to the muzzle of the speargun. This must be Installed before using the Arrow arbalete speargun for the first time.The first step is to thread one end of the line around the line holder on the shaft. The line must be fastened by means of a slipknot or any other type of knot that secures the line properly (Drawing 1).Once the knot has been secured, insert the shaft through the muzzle until it fits into the trigger mechanism system on the handgrip. Once this has been done, run the line along the barrel until it reaches the line releaser, running the line around it to return to the muzzle. Insert the free end of the line in the eye in the muzzle and make another knot that secures the line to the eye itself.

U

SE OF THE SLINGS AND WISHBONE FOR LOADING

It is advisable to always wear gloves when loading your Arrow speargun.. Hold the latex tubing in front of the wish- bone, holding them between your fingers while pulling the slings (Drawing 5). For loading to the first notch we advise resting the handgrip, designed for this purpose, against your weight belt in order to guarantee safe support during loading (Drawing 6). In order to load to the second notch, according to the individual's strength or the length of the speargun, a further sup- port is needed against the sternum. This operation is usually required to exploit the full power of the speargun (Drawing 7).
