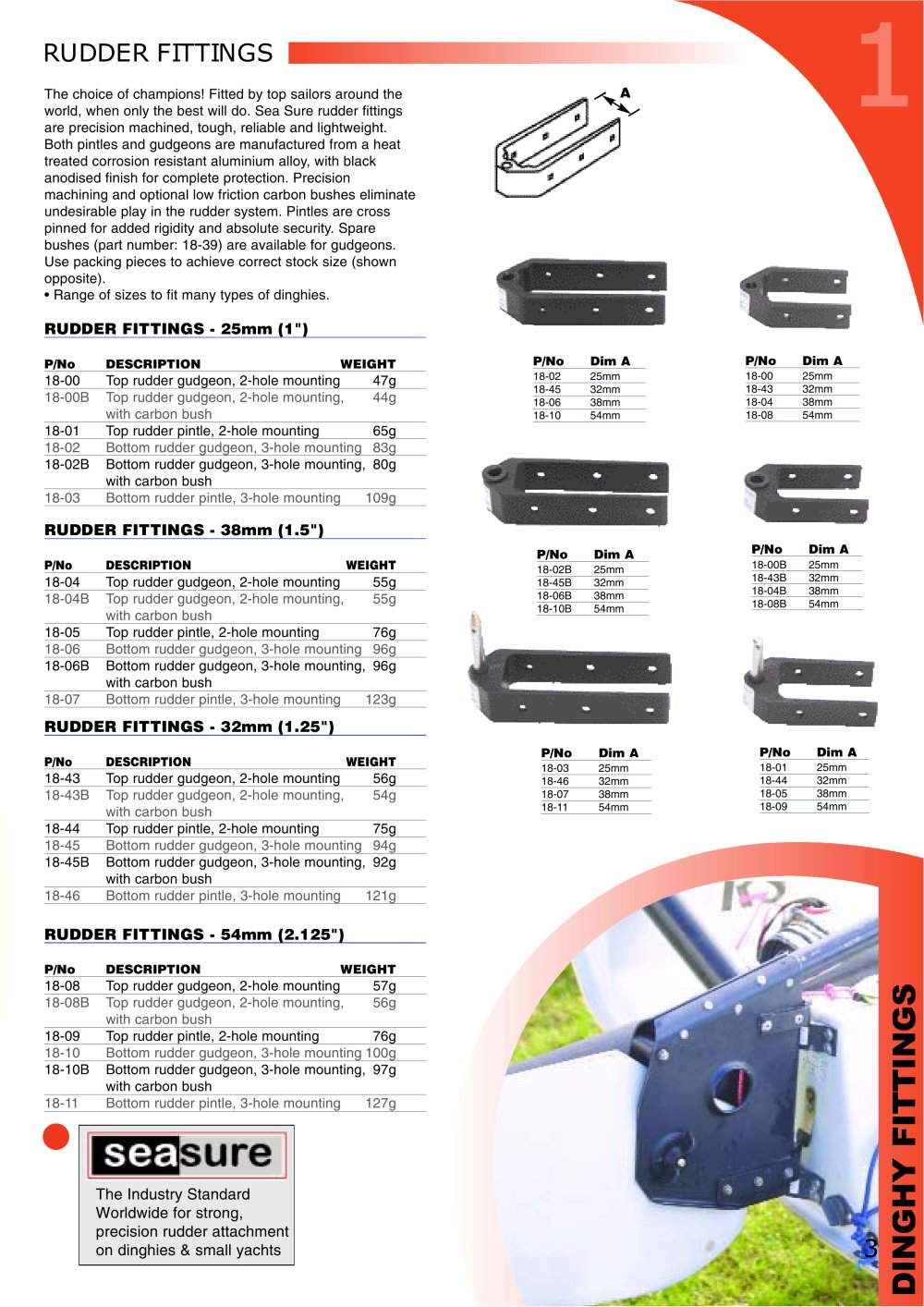

RUDDER FITTINGS
The choice of champions! Fitted by top sailors around the world, when only the best will do. Sea Sure rudder fittings are precision machined, tough, reliable and lightweight. Both pintles and gudgeons are manufactured from a heat treated corrosion resistant aluminium alloy, with black anodised finish for complete protection. Precision machining and optional low friction carbon bushes eliminate undesirable play in the rudder system. Pintles are cross pinned for added rigidity and absolute security. Spare bushes (part number: 18-39) are available for gudgeons. Use packing pieces to achieve correct stock size (shown opposite).
• Range of sizes to fit many types of dinghies. RUDDER FITTINGS - 25mm (1")
P/No
DESCRIPTION WEIGHT
18-00
Top rudder gudgeon, 2-hole mounting
47g
18-00B
Top rudder gudgeon, 2-hole mounting, with carbon bush
44g
18-01
Top rudder pintle, 2-hole mounting
65g
18-02
Bottom rudder gudgeon, 3-hole mounting
83g
18-02B
Bottom rudder gudgeon, 3-hole mounting, 80g with carbon bush
18-03
Bottom rudder pintle, 3-hole mounting
109g
RUDDER FITTINGS - 38mm (1.5")
P/No
DESCRIPTION WEIGHT
18-04
Top rudder gudgeon, 2-hole mounting
55g
18-04B
Top rudder gudgeon, 2-hole mounting, with carbon bush
55g
18-05
Top rudder pintle, 2-hole mounting
76g
18-06
Bottom rudder gudgeon, 3-hole mounting
96g
18-06B
Bottom rudder gudgeon, 3-hole mounting, 96g with carbon bush
18-07
Bottom rudder pintle, 3-hole mounting
123g
RUDDER FITTINGS - 32mm (1.25")
P/No
DESCRIPTION WEIGHT
18-43
Top rudder gudgeon, 2-hole mounting
56g
18-43B
Top rudder gudgeon, 2-hole mounting, with carbon bush
54g
18-44
Top rudder pintle, 2-hole mounting
75g
18-45
Bottom rudder gudgeon, 3-hole mounting
94g
18-45B
Bottom rudder gudgeon, 3-hole mounting, 92g with carbon bush
18-46
Bottom rudder pintle, 3-hole mounting
121g
RUDDER FITTINGS - 54mm (2.125")
P/No
DESCRIPTION WEIGHT
18-08
Top rudder gudgeon, 2-hole mounting
57g
18-08B
Top rudder gudgeon, 2-hole mounting, with carbon bush
56g
18-09
Top rudder pintle, 2-hole mounting
76g
18-10
Bottom rudder gudgeon, 3-hole mounting 100g
18-10B
Bottom rudder gudgeon, 3-hole mounting, 97g with carbon bush
18-11
Bottom rudder pintle, 3-hole mounting
127g
P/No
Dim A
P/No
Dim A
18-02
25mm
18-00
25mm
18-45
32mm
18-43
32mm
18-06
38mm
18-04
38mm
18-10
54mm
18-08
54mm
P/No
Dim A
18-00B
25mm
18-43B
32mm
18-04B
38mm
18-08B
54mm
P/No
Dim A
18-02B
25mm
18-45B
32mm
18-06B
38mm
18-10B
54mm
P/No
Dim A
P/No
Dim A
18-03
25mm
18-01
25mm
18-46
32mm
18-44
32mm
18-07
38mm
18-05
38mm
18-11
54mm
18-09
54mm
The Industry Standard Worldwide for strong,
precision rudder attachment
on dinghies & small yachts
3
