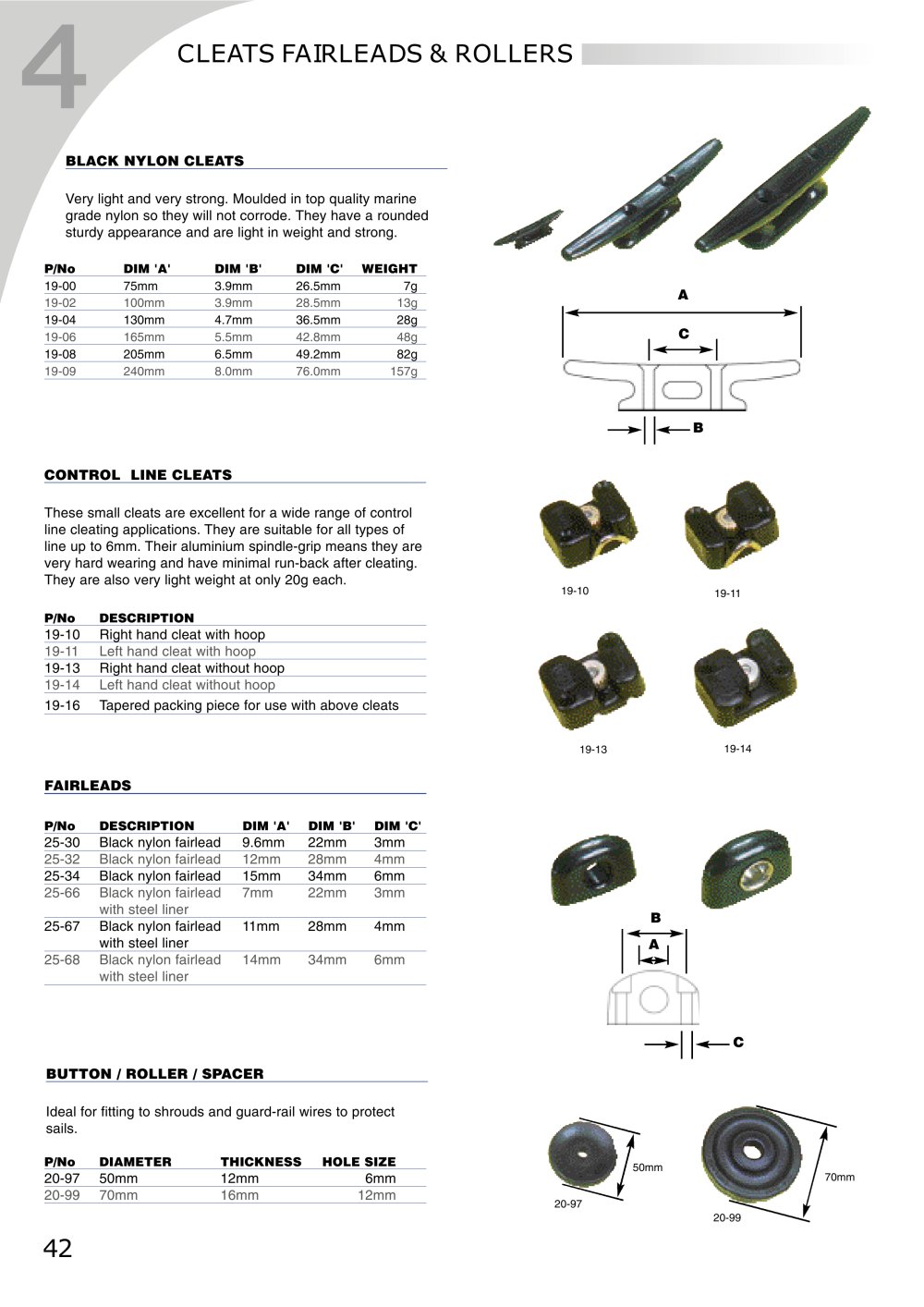

| | | 4 | | |
| | | CLEATS FAIRLEADS ROLLERS | | |
| | | |
| | | |
| | | BLACK NYLON CLEATS | | |
| | | |
| | | Very light and very strong. Moulded in top quality marine grade nylon so they will not corrode. They have a rounded sturdy appearance and are light in weight and strong. | | |
| | | |
| | | | | | | | | | | | | P/No | DIM 'A' | DIM 'B' | DIM 'C' | WEIGHT | | | | 19-00 | 75mm | 3.9mm | 26.5mm | 7g | | | | 19-02 | 100mm | 3.9mm | 28.5mm | 13g | | | | 19-04 | 130mm | 4.7mm | 36.5mm | 28g | | | | 19-06 | 165mm | 5.5mm | 42.8mm | 48g | | | | 19-08 | 205mm | 6.5mm | 49.2mm | 82g | | | | 19-09 | 240mm | 8.0mm | 76.0mm | 157g | | | | | | | | | | | | |
| | | A | | |
| | | |
| | | C ■<->~ | | |
| | | |
| | | |
| | | CD | | |
| | | |
| | | B | | |
| | | |
| | | CONTROL LINE CLEATS These small cleats are excellent for a wide range of control line cleating applications. They are suitable for all types of line up to 6mm. Their aluminium spindle-grip means they are very hard wearing and have minimal run-back after cleating. They are also very light weight at only 20g each. | | |
| | | 19-10 | | |
| | | |
| | | 19-11 | | |
| | | |
| | | |
| | | P/No | | DESCRIPTION | | |
| | | |
| | | |
| | | 19-10 Right hand cleat with hoop | | |
| | | |
| | | 19-11 Left hand cleat with hoop | | |
| | | |
| | | 19-13 Right hand cleat without hoop | | |
| | | |
| | | 19-14 Left hand cleat without hoop | | |
| | | |
| | | 19-16 Tapered packing piece for use with above cleats | | |
| | | |
| | | 19-14 | | |
| | | 19-13 | | |
| | | |
| | | |
| | | FAIRLEADS | | |
| | | |
| | | P/No DESCRIPTION DIM 'A' DIM 'B' DIM 'C | | |
| | | |
| | | | | | | | | | | | | 25-30 | Black nylon fairlead | 9.6mm | 22mm | 3mm | | | | 25-32 | Black nylon fairlead | 12mm | 28mm | 4mm | | | | 25-34 | Black nylon fairlead | 15mm | 34mm | 6mm | | | | 25-66 | Black nylon fairlead with steel liner | 7mm | 22mm | 3mm | | | | 25-67 | Black nylon fairlead with steel liner | 11mm | 28mm | 4mm | | | | 25-68 | Black nylon fairlead with steel liner | 14mm | 34mm | 6mm | | | | | | | | | | | | |
| | | B ->■ | | |
| | | |
| | | |
| | | BUTTON / ROLLER / SPACER | | |
| | | |
| | | Ideal for fitting to shrouds and guard-rail wires to protect sails. | | |
| | | |
| | | | | | | | | | | | P/No | DIAMETER | THICKNESS | HOLE SIZE | | | | 20-97 | 50mm | 12mm | 6mm | | | | 20-99 | 70mm | 16mm | 12mm | | | | | | | | | | | |
| | | |
| | | 42 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
