| | | 4 | | |

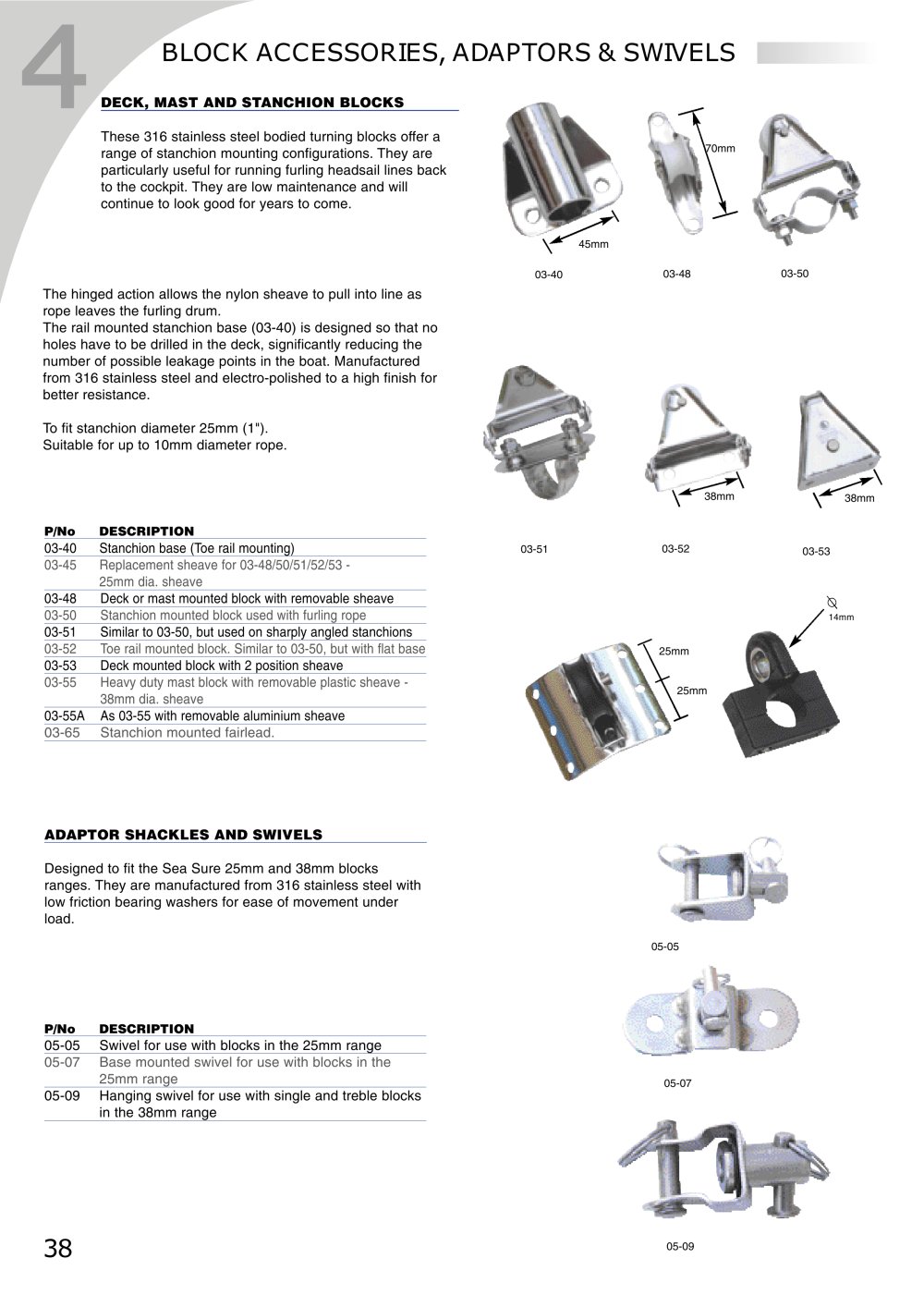

| | | BLOCK ACCESSORIES ADAPTORS SWI ELS | | |
| | | |
| | | DECK, MAST AND STANCHION BLOCKS These 316 stainless steel bodied turning blocks offer a range ofstanchion mounting configurations.Theyare particularly useful for running furling headsail lines back to the cockpit. They are low maintenance and will continue to look good for years to come. | | |
| | | |
| | | |
| | | 03-50 | | |
| | | 03-48 | | |
| | | 03-40 | | |
| | | |
| | | |
| | | |
| | | The hinged action allows the nylon sheave to pull into line as marine rope leaves the furling drum. The rail mounted stanchion base (03-40) is designed so that no holes have to be drilled in the deck, significantly reducing the number of possible leakage points in the boat. Manufactured from 316 stainless steel and electro-polished to a high finish for better resistance. To fit stanchion diameter 25mm (1"). Suitable for up to 10mm diameter rope. | | |
| | | |
| | | | | | | | | | P/No | DESCRIPTION | | | | 03-40 | Stanchion base (Toe rail mounting) | | | | 03-45 | Replacement sheave for 03-48/50/51/52/53 - | | | | | 25mm dia. sheave | | | | 03-48 | Deck or mast mounted block with removable sheave | | | | 03-50 | Stanchion mounted block used with furling rope | | | | 03-51 | Similar to 03-50, but used on sharply angled stanchions | | | | 03-52 | Toe rail mounted block. Similar to 03-50, but with flat base | | | | 03-53 | Deck mounted block with 2 position sheave | | | | 03-55 | Heavy duty mast block with removable plastic sheave - | | | | | 38mm dia. sheave | | | | 03-55A | As 03-55 with removable aluminium sheave | | | | 03-65 | Stanchion mounted fairlead. | | | | | | | | | | | | | |
| | | 03-52 | | |
| | | 03-51 | | |
| | | 03-53 | | |
| | | |
| | | |
| | | |
| | | 25mm | | |
| | | |
| | | 25mm | | |
| | | |
| | | |
| | | Designed to fit the Sea Sure 25mm and 38mm blocks ranges. They are manufactured from 316 stainless steel with low friction bearing washers for ease of movement under load. | | |
| | | |
| | | 05-05 | | |
| | | |
| | | P/No | | DESCRIPTION | | |
| | | |
| | | |
| | | 05-05 Swivel for use with blocks in the 25mm range 05-07 Base mounted swivel for use with blocks in the 25mm range 05-09 Hanging swivel for use with single and treble blocks in the 38mm range | | |
| | | 05-07 | | |
| | | |
| | | |
| | | 38 | | |
| | | 05-09 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
