| | | 4 | | |

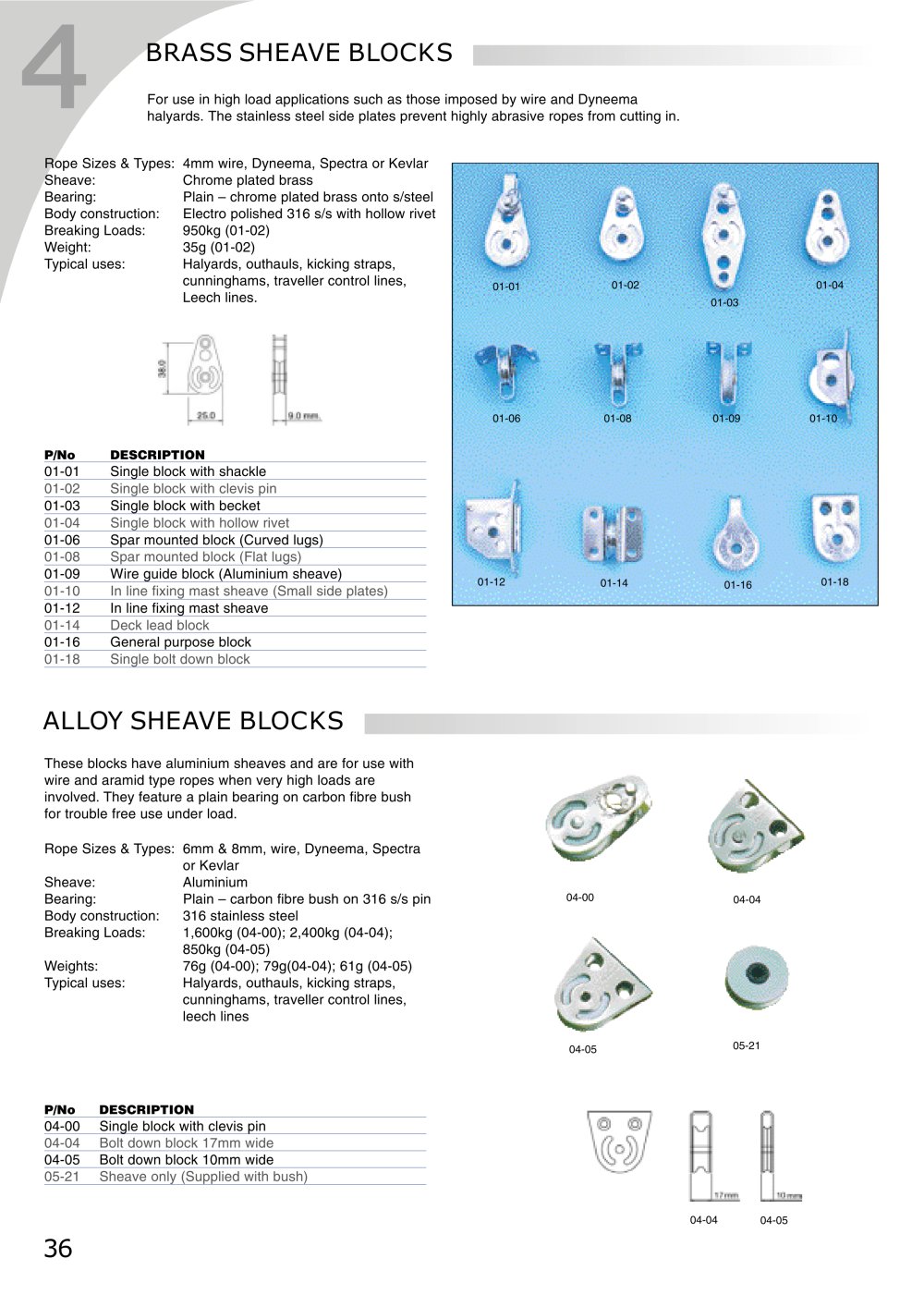

| | | BRASS SHEA E BLOCKS | | |
| | | |
| | | For use in high load applications such as those imposed by wire and Dyneema halyards. The stainless steel side plates prevent highly abrasive ropes from cutting in. | | |
| | | |
| | | |
| | | Boat rope Sizes & Types: 4mm wire, Dyneema, Spectra or Kevlar | | |
| | | |
| | | Sheave: Bearing: Body construction: Breaking Loads: Weight: Typical uses: | | Chrome plated brass Plain - chrome plated brass onto s/steel Electro polished 316 s/s with hollow rivet 950kg (01-02) 35g (01-02) Halyards, outhauls, kicking straps, Cunninghams, traveller control lines, Leech lines. | | |
| | | |
| | | |
| | | | | | | | | | P/No | DESCRIPTION | | | | 01-01 | | | | | 01-02 | Single block with clevis pin | | | | 01-03 | Single block with becket | | | | 01-04 | Single block with hollow rivet | | | | 01-06 | Spar mounted block (Curved lugs) | | | | 01-08 | Spar mounted block (Flat lugs) | | | | 01-09 | Wire guide block (Aluminium sheave) | | | | 01-10 | In line fixing mast sheave (Small side plates) | | | | 01-12 | In line fixing mast sheave | | | | 01-14 | Deck lead block | | | | 01-16 | General purpose block | | | | 01-18 | Single bolt down block | | | | | | | | | |
| | | |
| | | ALLOY SHEA E BLOCKS | | |
| | | |
| | | These blocks have aluminium sheaves and are for use with wire and aramid type ropes when very high loads are involved. They feature a plain bearing on carbon fibre bush for trouble free use under load. Rope Sizes & Types: 6mm & 8mm, wire, Dyneema, Spectra or Kevlar | | |
| | | |
| | | Sheave: Bearing: Body construction: Breaking Loads: Weights: Typical uses: | | Aluminium Plain - carbon fibre bush on 316 s/s pin 316 stainless steel 1,600kg (04-00); 2,400kg (04-04); 850kg (04-05) 76g (04-00); 79g(04-04); 61g (04-05) Halyards, outhauls, kicking straps, | | |
| | | 04-00 | | |
| | | 04-04 | | |
| | | |
| | | |
| | | |
| | | cunninghams, traveller control lines, leech lines | | |
| | | |
| | | 05-21 | | |
| | | 04-05 | | |
| | | |
| | | |
| | | P/No | | DESCRIPTION | | |
| | | |
| | | |
| | | 04-00 Single block with clevis pin | | |
| | | |
| | | 04-04 Bolt down block 17mm wide | | |
| | | |
| | | 04-05 Bolt down block 10mm wide | | |
| | | |
| | | 05-21 Sheave only (Supplied with bush) | | |
| | | |
| | | 04-04 | | |
| | | 04-05 | | |
| | | |
| | | |
| | | 36 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
