											4

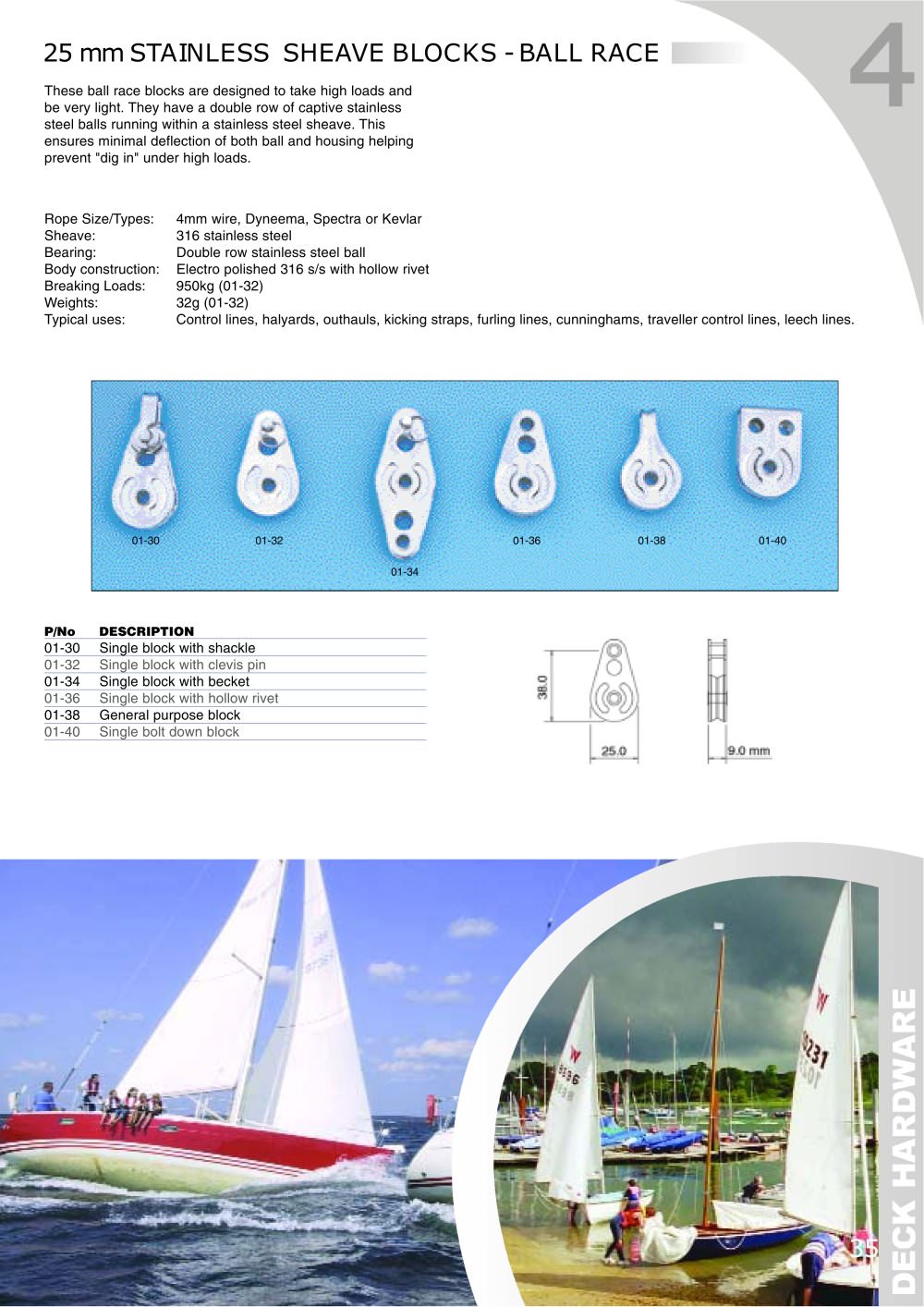

		25 STAINLESS SHEA E BLOCKS BALL RACE These ball race blocks are designed to take high loads and be very light. They have a double row of captive stainless steel balls running within a stainless steel sheave. This ensures minimal deflection of both ball and housing helping prevent "dig in" under high loads.									4


			Marine rope Size/Types: Sheave: Bearing: Body construction: Breaking Loads: Weights: Typical uses:			4mm wire, Dyneema, Spectra or Kevlar 316 stainless steel Double row stainless steel ball Electro polished 316 s/s with hollow rivet 950kg (01-32) 32g (01-32) Control lines, halyards, outhauls, kicking straps, furling lines, cunninghams, traveller control lines, leech lines.

								01-34

				P/No DESCRIPTION 01-30 Single block with shackle 01-32 Single block with clevis pin 01-34 Single block with becket 01-36 Single block with hollow rivet 01-38 General purpose block 01-40 Single bolt down block
