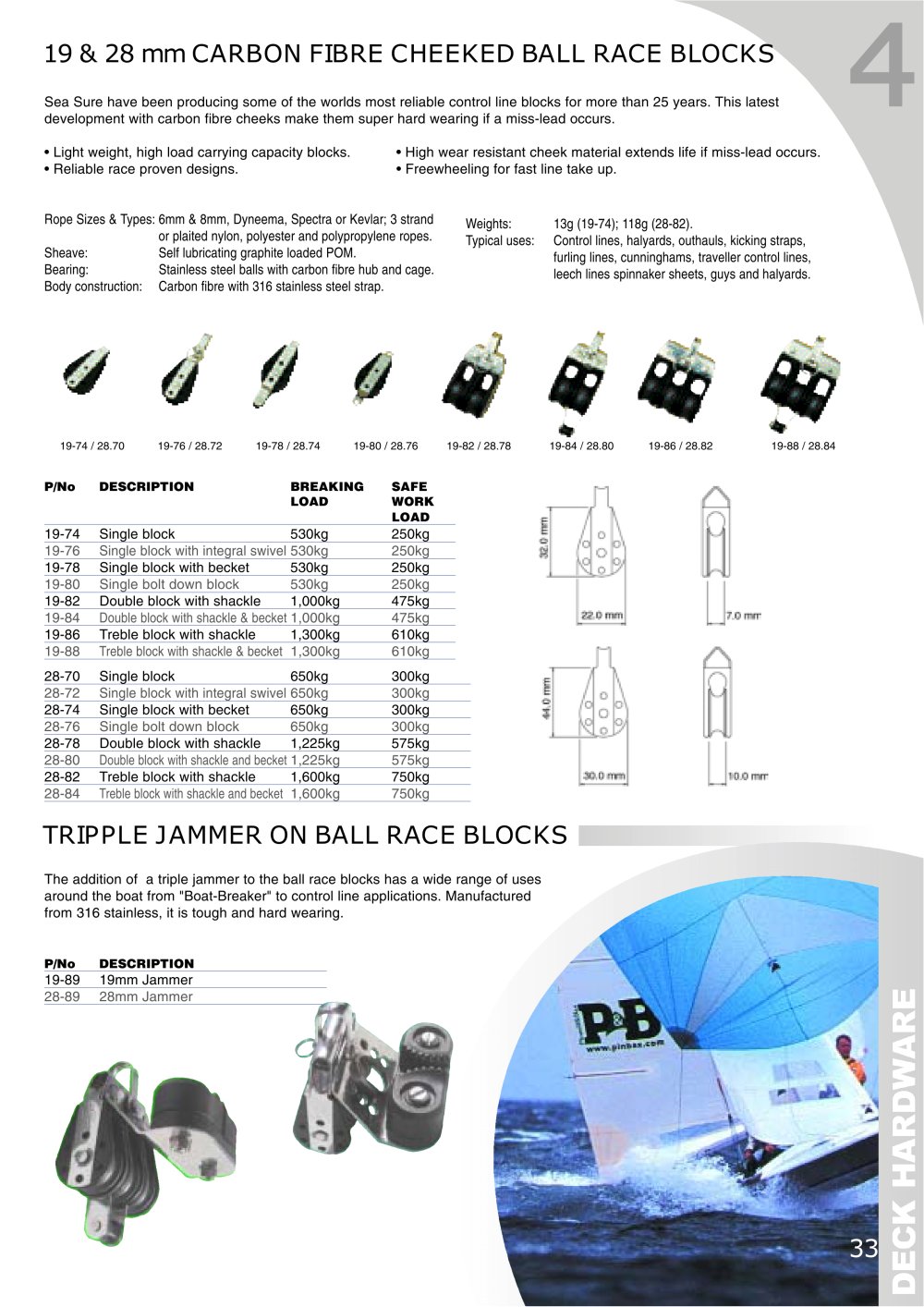

| | | CARBON FIBRE CHEEKED BALL RACE BLOCKS | | |
| | | 1 28 | | |
| | | |
| | | Sea Sure have been producing some of the worlds most reliable control line blocks for more than 25 years. This latest development with carbon fibre cheeks make them super hard wearing if a miss-lead occurs. | | |
| | | |
| | | |
| | | 1 Light weight, high load carrying capacity blocks. 1 Reliable race proven designs. | | High wear resistant cheek material extends life if miss-lead occurs. Freewheeling for fast line take up. | | |
| | | |
| | | Marine rope Sizes & Types: 6mm & 8mm, Dyneema, Spectra or Kevlar; 3 strand or plaited nylon, polyester and polypropylene ropes. Sheave: Self lubricating graphite loaded POM. Bearing: Stainless steel balls with carbon fibre hub and cage. Body construction: Carbon fibre with 316 stainless steel strap. | | |
| | | Weights: 13g (19-74); 118g (28-82). Typical uses: Control lines, halyards, outhauls, kicking straps, furling lines, cunninghams, traveller control lines, leech lines spinnaker sheets, guys and halyards. | | |
| | | |
| | | |
| | | 19-74/28.70 19-76/28.72 19-78/28.74 19-80/28.76 19-82/28.78 19-84/28.80 19-86/28.82 19-88/28.84 | | |
| | | |
| | | | | | | | | | | P/No | DESCRIPTION BREAKING LOAD | SAFE WORK LOAD | | | | 19-74 | Single block 530kg | 250kg | | | | 19-76 | Single block with integral swivel 530kg | 250kg | | | | 19-78 | Single block with becket 530kg | 250kg | | | | 19-80 | Single bolt down block 530kg | 250kg | | | | 19-82 | | 475kg | | | | 19-84 | Double block with shackle & becket 1,000kg | 475kg | | | | 19-86 | Treble block with shackle 1,300kg | 610kg | | | | 19-88 | Treble block with shackle & becket 1,300kg | 610kg | | | | 28-70 | Single block 650kg | 300kg | | | | 28-72 | Single block with integral swivel 650kg | 300kg | | | | 28-74 | Single block with becket 650kg | 300kg | | | | 28-76 | Single bolt down block 650kg | 300kg | | | | 28-78 | Double block with shackle 1,225kg | 575kg | | | | 28-80 | Double block with shackle and becket 1,225kg | 575kg | | | | 28-82 | Treble block with shackle 1,600kg | 750kg | | | | 28-84 | Treble block with shackle and becket 1,600kg | 750kg | | | | | | | | | | |
| | | |
| | | TRIPPLE AMMER ON BALL RACE BLOCKS | | |
| | | |
| | | The addition of a triple jammer to the ball race blocks has a wide range of uses around the boat from "Boat-Breaker" to control line applications. Manufactured from 316 stainless, it is tough and hard wearing. | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | |
