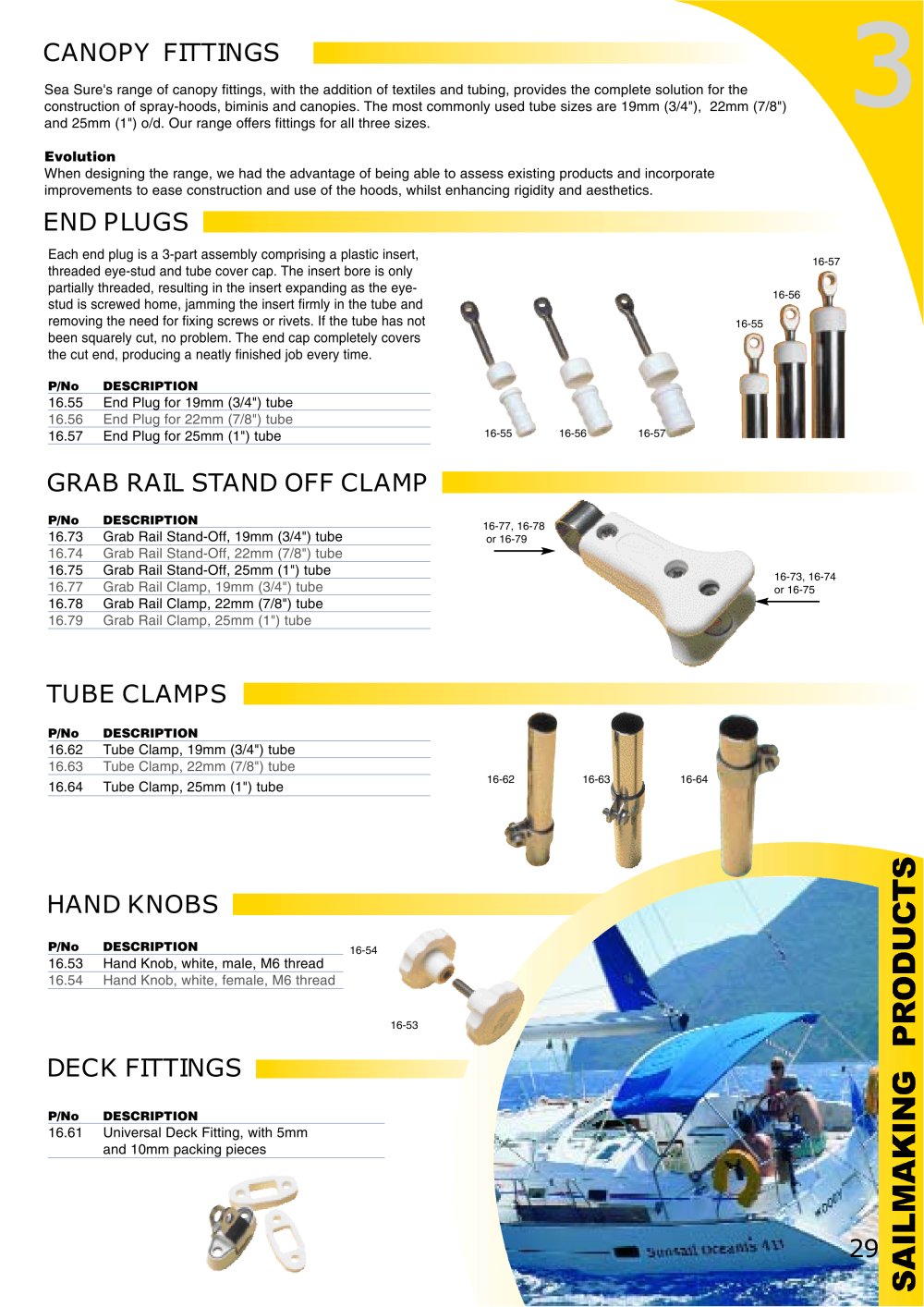

CANOPY FITTINGS
Sea Sure's range of canopy fittings, with the addition of textiles and tubing, provides the complete solution for the construction of spray-hoods, biminis and canopies. The most commonly used tube sizes are 19mm (3/4"), 22mm (7/8") and 25mm (1") o/d. Our range offers fittings for all three sizes.
Evolution
When designing the range, we had the advantage of being able to assess existing products and incorporate improvements to ease construction and use of the hoods, whilst enhancing rigidity and aesthetics.
END PLUGS
Each end plug is a 3-part assembly comprising a plastic insert, threaded eye-stud and tube cover cap. The insert bore is only partially threaded, resulting in the insert expanding as the eye-
16-57 1
stud is screwed home, jamming the insert firmly in the tube and removing the need for fixing screws or rivets. If the tube has not been squarely cut, no problem. The end cap completely covers the cut end, producing a neatly finished job every time.
\
16-55
P/No
DESCRIPTION
16.55
End Plug for 19mm (3/4") tube
16.56
End Plug for 22mm (7/8") tube
16.57
End Plug for 25mm (1")tube
GRAB RAIL STAND OFF CLAMP
P/No
DESCRIPTION
16.73
Grab Rail Stand-Off, 19mm (3/4") tube
16.74
Grab Rail Stand-Off, 22mm (7/8") tube
16.75
Grab Rail Stand-Off, 25mm (1") tube
16.77
Grab Rail Clamp, 19mm (3/4") tube
16.78
Grab Rail Clamp, 22mm (7/8") tube
16.79
Grab Rail Clamp, 25mm (1") tube
16-55
16-56 16-57
TUBE CLAMPS
P/No
DESCRIPTION
16.62 Tube Clamp, 19mm (3/4") tube
16.63 Tube Clamp, 22mm (7/8") tube
16.64 Tube Clamp, 25mm (1") tube
HAND KNOBS
P/No
DESCRIPTION
16.53 Hand Knob, white, male, M6 thread
16.54 Hand Knob, white, female, M6 thread
DECK FITTINGS
P/No
DESCRIPTION
16.61 Universal Deck Fitting, with 5mm and 10mm packing pieces
