2

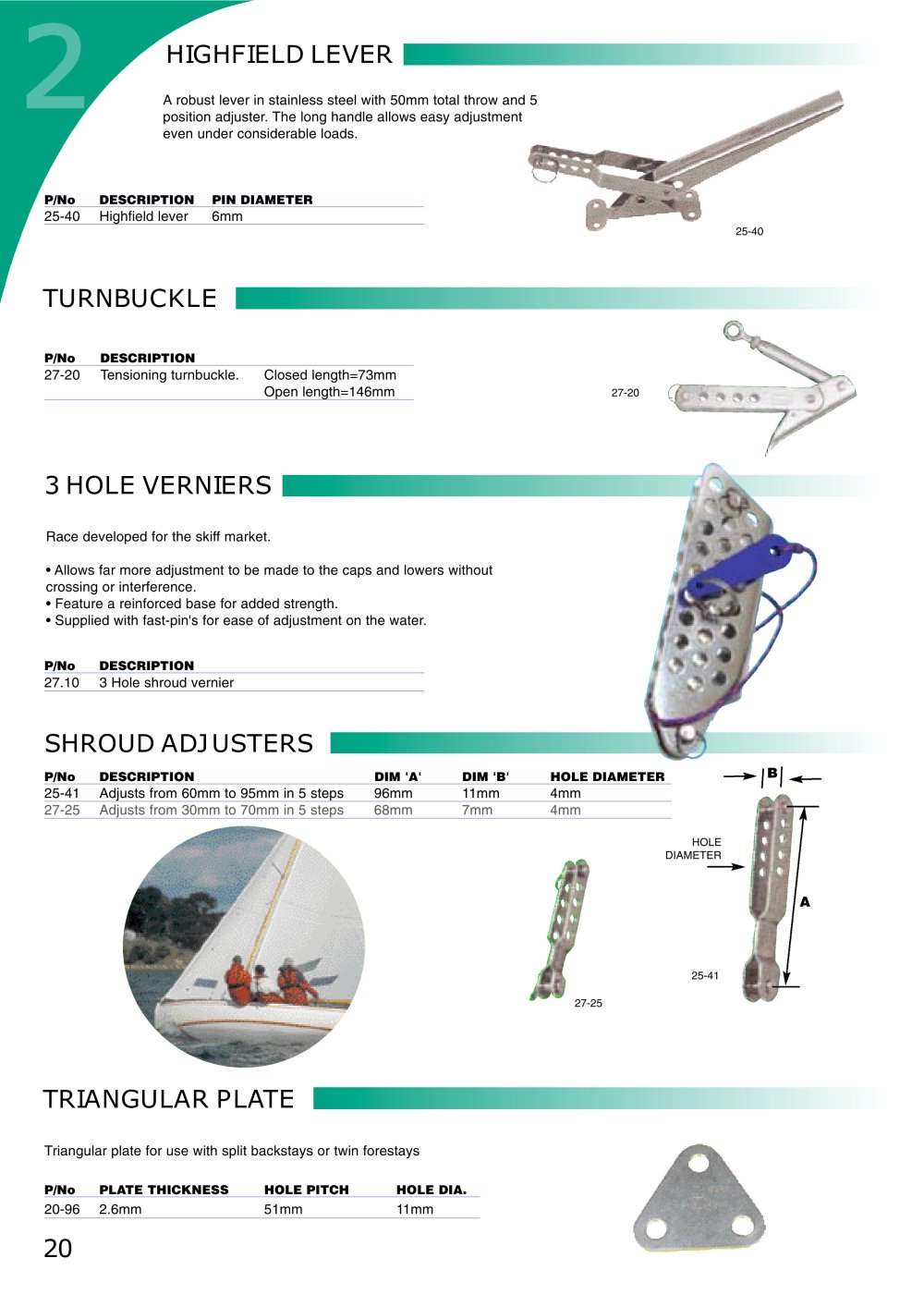

HIGHFIELD LE ER
A robust lever in stainless steel with 50mm total throw and 5 position adjuster. The long handle allows easy adjustment even under considerable loads.
'C7
P/No DESCRIPTION PIN DIAMETER
25-40 Highfield lever 6mm
25-40
3 HOLE ERNIERS
Race developed for the skiff market.
Allows far more adjustment to be made to the caps and lowers without crossing or interference.
• Feature a reinforced base for added strength.
• Supplied with fast-pin's for ease of adjustment on the water.
DESCRIPTION
27.10 3 Hole shroud vernier
SHROUD AD USTERS H
P/No DESCRIPTION
DIM 'A'
DIM 'B'
HOLE DIAMETER
25-41 Adjusts from 60mm to 95mm in 5 steps
96mm
11mm
4mm
27-25 Adjusts from 30mm to 70mm in 5 steps
68mm
7mm
4mm
HOLE DIAMETER
25-41
27-25
TRIANGULAR PLATE
Triangular plate for use with split backstays or twin forestays
P/No PLATE THICKNESS HOLE PITCH HOLE DIA.
20-96 2.6mm
51mm
11mm
2
