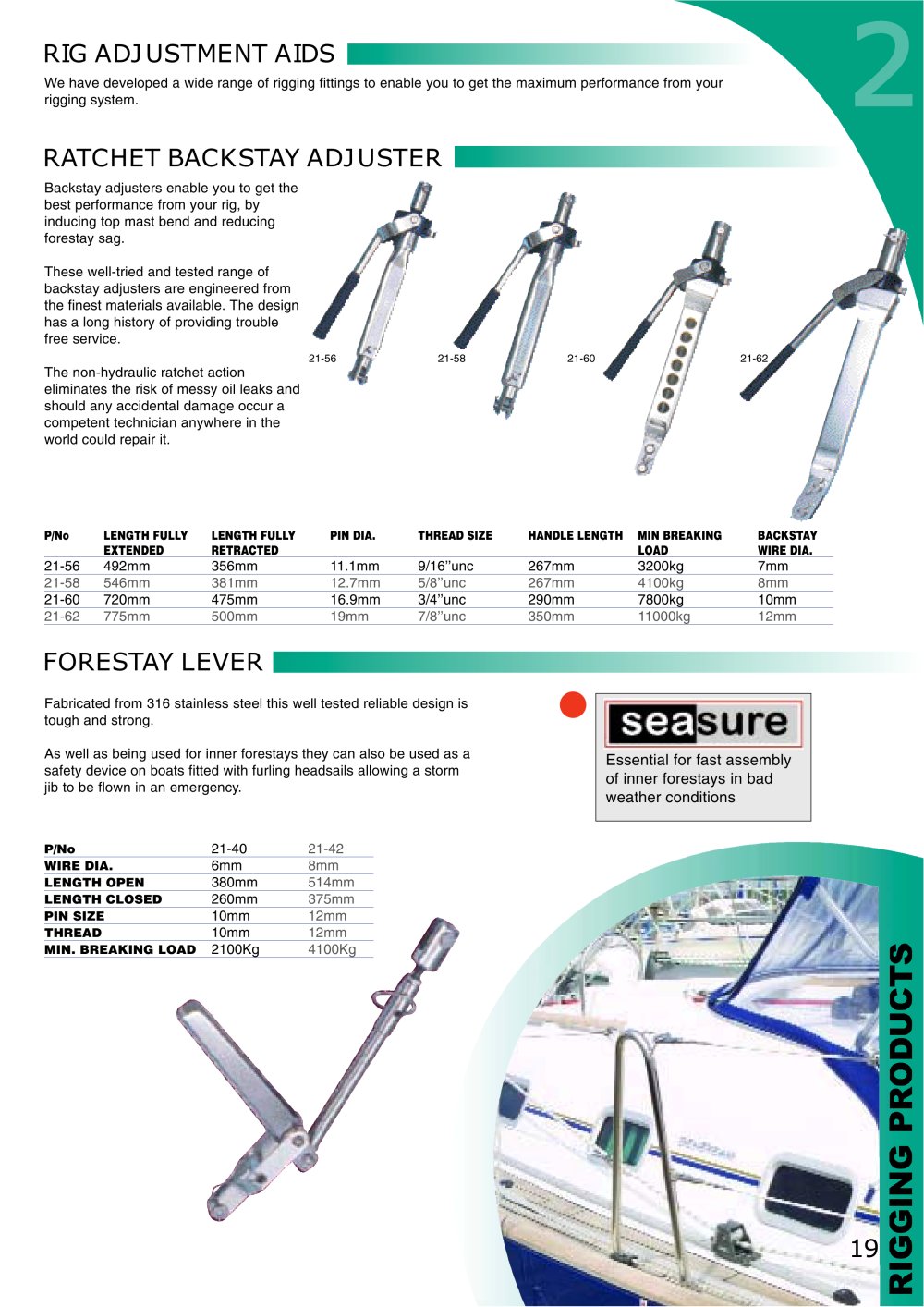

RIG ADJUSTMENT AIDS
We have developed a wide range of rigging fittings to enable you to get the maximum performance from your rigging system.
RATCHET BACKSTAY ADJUSTER
Backstay adjusters enable you to get the best performance from your rig, by inducing top mast bend and reducing forestay sag.
These well-tried and tested range of backstay adjusters are engineered from the finest materials available. The design has a long history of providing trouble free service.
The non-hydraulic ratchet action eliminates the risk of messy oil leaks and should any accidental damage occur a competent technician anywhere in the world could repair it.
21-56
P/No
LENGTH FULLY EXTENDED
LENGTH FULLY
RETRACTED
PIN DIA.
THREAD SIZE
HANDLE LENGTH
MIN BREAKING LOAD
BACKSTAY WIRE DIA.
21-56
492mm
356mm
11.1mm
9/16''unc
267mm
3200kg
7mm
21-58
546mm
381mm
12.7mm
5/8''unc
267mm
4100kg
8mm
21-60
720mm
475mm
16.9mm
3/4''unc
290mm
7800kg
10mm
21-62
775mm
500mm
19mm
7/8''unc
350mm
11000kg
12mm
FORESTAY LEVER
Fabricated from 316 stainless steel this well tested reliable design is tough and strong.
As well as being used for inner forestays they can also be used as a safety device on boats fitted with furling headsails allowing a storm jib to be flown in an emergency.
Essential for fast assembly of inner forestays in bad weather conditions
