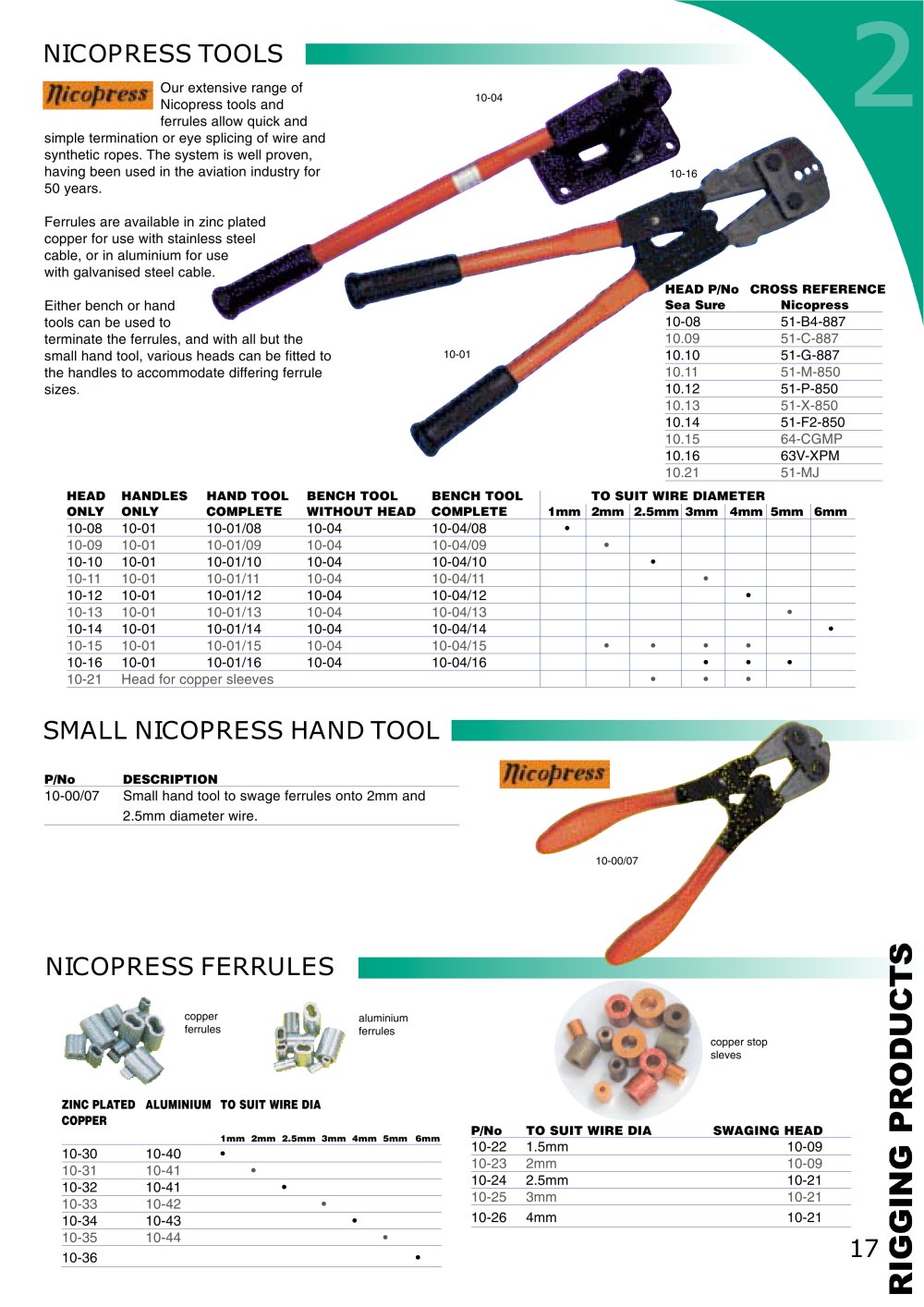

NICOPRESS TOOLS

Tficoptess

Nicopress tools and ferrules allow quick and simple termination or eye splicing of wire and synthetic ropes. The system is well proven, having been used in the aviation industry for 50 years.

Ferrules are available in zinc plated copper for use with stainless steel cable, or in aluminium for use with galvanised steel cable.

HEAD P/No CROSS REFERENCE Sea Sure

Either bench or hand tools can be used to

terminate the ferrules, and with all but the small hand tool, various heads can be fitted to the handles to accommodate differing ferrule sizes.


	10-08	51-B4-887
	10.09	51-C-887
	10.10	51-G-887
	10.11	51-M-850
	10.12	51-P-850
	10.13	51-X-850
	10.14	51-F2-850
	10.15	64-CGMP
	10.16	63V-XPM
	10.21	51-MJ


ONLY	ONLY	COMPLETE	WITHOUT HEAD	COMPLETE	1mm	2mm	2.5mm	3mm	4mm	5mm	6mm
10-08	10-01	10-01/08	10-04	10-04/08	•
10-09	10-01	10-01/09	10-04	10-04/09
10-10	10-01	10-01/10	10-04	10-04/10			_•
10-11	10-01	10-01/11	10-04	10-04/11				•
10-12	10-01	10-01/12	10-04	10-04/12
10-13	10-01	10-01/13	10-04	10-04/13						_•
10-14	10-01	10-01/14	10-04	10-04/14							_•
10-15	10-01	10-01/15	10-04	10-04/15			_•	_•	_•
10-16	10-01	10-01/16	10-04	10-04/16				_•	_•	_•
10-21	Head for copper sleeves

SMALL NICOPRESS HAND TOOL

P/No

DESCRIPTION

10-00/07 Small hand tool to swage ferrules onto 2mm and 2.5mm diameter wire.

NICOPRESS FERRULES

copper ferrules


ZINC PLATED COPPER	ALUMINIUM	TO MARINE SUIT WIRE DIA 1mm 2mm 2.5mm 3mm 4mm 5mm 6mm
10-30	10-40	_•
10-31	10-41	_•
10-32	10-41	_•
10-33	10-42	_•
10-34	10-43	_•
10-35	10-44
10-36 •


P/No	TO SUIT WIRE DIA	SWAGING HEAD
10-22	1.5mm	10-09
10-23	2mm	10-09
10-24	2.5mm	10-21
10-25	3mm	10-21
10-26	4mm	10-21
