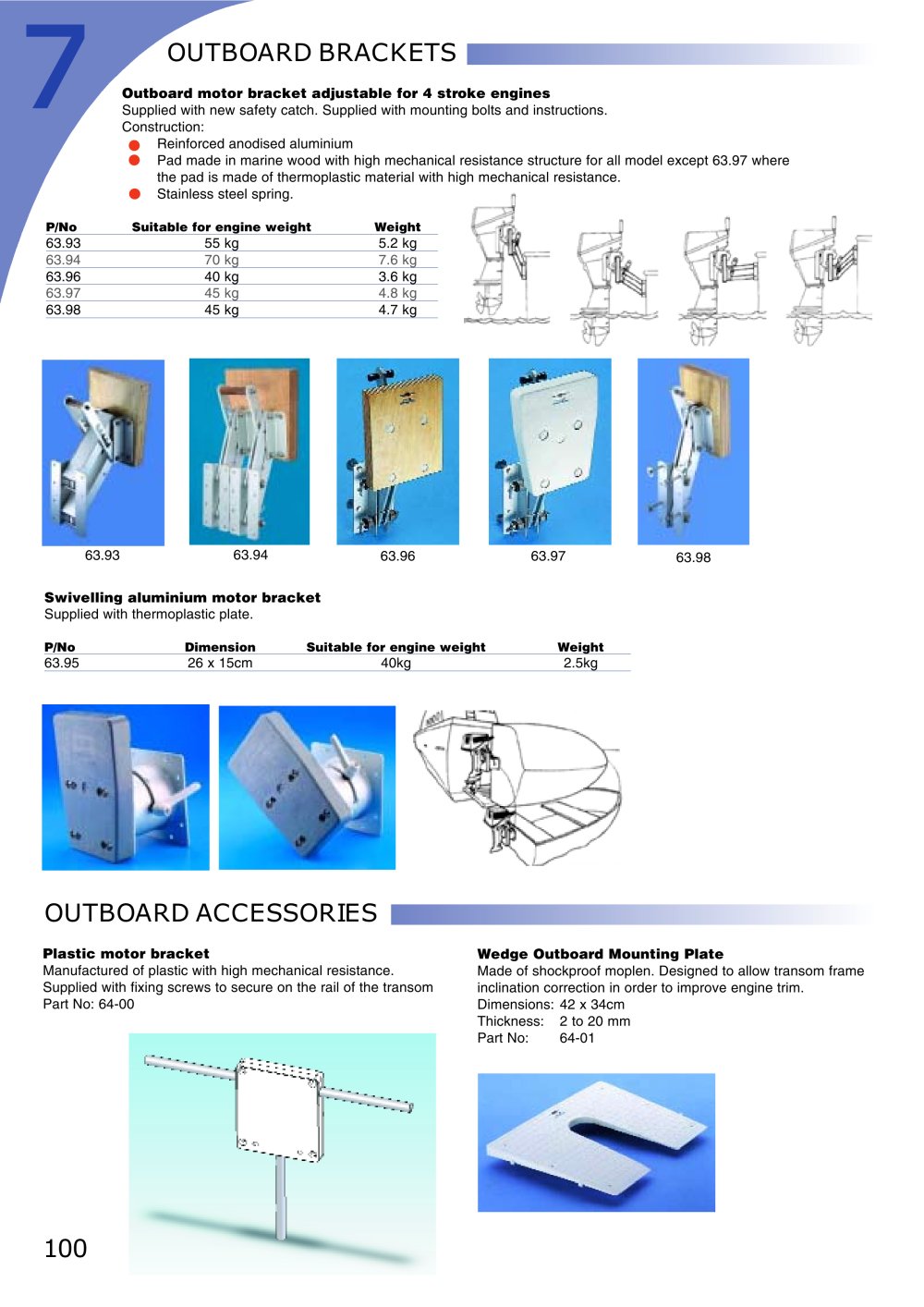

OUTBOARD BRACKETS

Outboard motor bracket adjustable for 4 stroke engines

Supplied with new safety catch. Supplied with mounting bolts and instructions. Construction:

% Reinforced anodised aluminium

• Pad made in marine wood with high mechanical resistance structure for all model except 63.97 where the pad is made of thermoplastic material with high mechanical resistance.

• Stainless steel spring.


P/No	Suitable for engine weight	Weight
63.93	55 kg	5.2 kg
63.94	■7A [,_.	7.6 kg
63.96	40 kg	3.6 kg
63.97	45 kg	4.8 kg
63.98	45 kg	4.7 kg

63.94

63.93

63.96

63.97

63.98

Swivelling aluminium motor bracket

Supplied with thermoplastic plate.

P/No

Dimension

Suitable for engine weight

Weight

40kg

2.5kg

63.95

26 x 15cm

OUTBOARD ACCESSORIES

Plastic motor bracket

Manufactured of plastic with high mechanical resistance. Supplied with fixing screws to secure on the rail of the transom Part No: 64-00

Wedge Outboard Mounting Plate

Made of shockproof moplen. Designed to allow transom frame inclination correction in order to improve engine trim. Dimensions: 42 x 34cm Thickness: 2 to 20 mm Part No: 64-01
