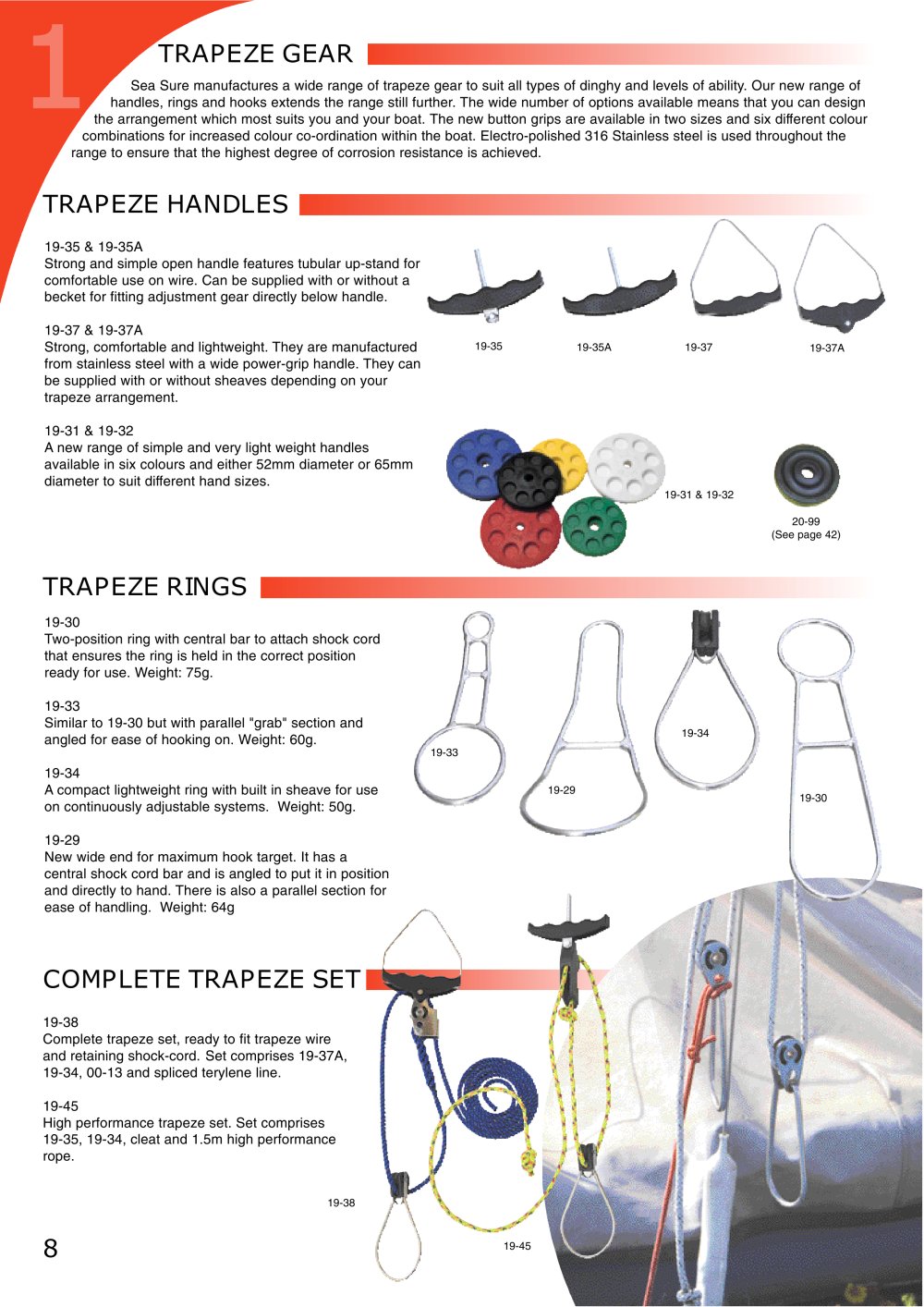

^TRAPE E GEAR ^^^^^^H
Sea Sure manufactures a wide range of trapeze gear to marine suit all types of dinghy and levels of ability. Our new range of handles, rings and hooks extends the range still further. The wide number of options available means that you can design the arrangement which most suits you and your boat. The new button grips are available in two sizes and six different colour combinations for increased colour co-ordination within the boat. Electro-polished 316 Stainless steel is used throughout the range to ensure that the highest degree of corrosion resistance is achieved.
TRAPE E HANDLES ^^^M
19-35 & 19-35A
Strong and simple open handle features tubular up-stand for comfortable use on wire. Can be supplied with or without a becket for fitting adjustment gear directly below handle.
19-37 & 19-37A
Strong, comfortable and lightweight. They are manufactured from stainless steel with a wide power-grip handle. They can be supplied with or without sheaves depending on your trapeze arrangement.
19-35
19-35A
19-37
19-37A
19-31 & 19-32
A new range of simple and very light weight handles available in six colours and either 52mm diameter or 65mm diameter to suit different hand sizes.
19-31 & 19-32
20-99 (See page 42)
TRAPE E RINGS ^^^H
19-30
Two-position ring with central bar to attach shock cord that ensures the ring is held in the correct position ready for use. Weight: 75g.
19-33
Similar to 19-30 but with parallel "grab" section and angled for ease of hooking on. Weight: 60g.
19-34
A compact lightweight ring with built in sheave for use on continuously adjustable systems. Weight: 50g.
19-29
New wide end for maximum hook target. It has a central shock cord bar and is angled to put it in position and directly to hand. There is also a parallel section for ease of handling. Weight: 64g
COMPLETE TRAPE E SET
19-38
Complete trapeze set, ready to fit trapeze wire and retaining shock-cord. Set comprises 19-37A, 19-34, 00-13 and spliced terylene line.
19-45
High performance trapeze set. Set comprises 19-35, 19-34, marine cleat and 1.5m high performance boat rope.
19-38
8
