safety - 5 Pages

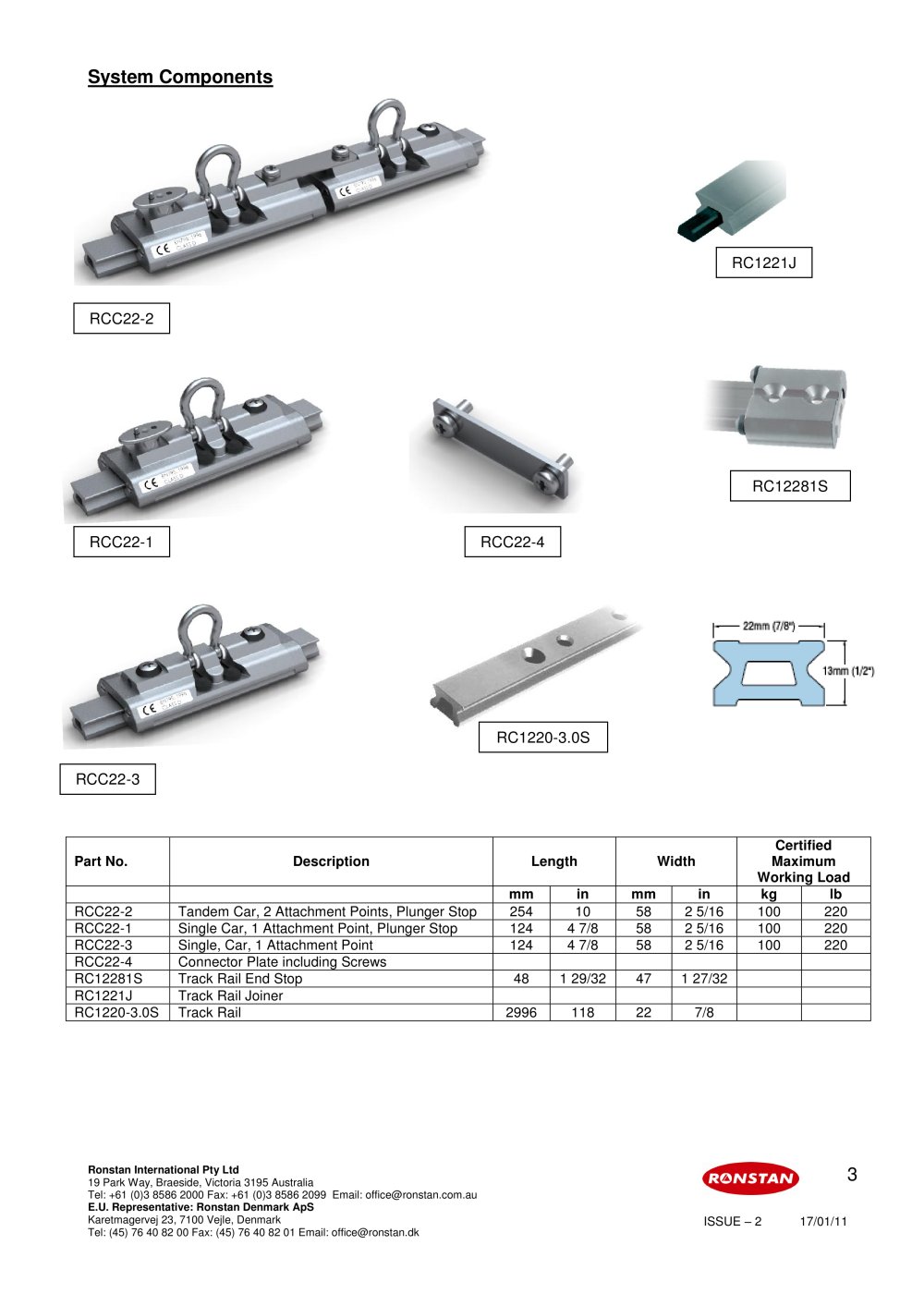

System Components
RC1221J
RCC22-2
RC12281S
RCC22-1
RCC22-4
RC1220-3.0S
RCC22-3
Part No.
RCC22-2
RCC22-1
RCC22-3
RCC22-4
RC12281S
RC1221J
RC1220-3.0S
Description
Tandem Car, 2 Attachment Points, Plunger Stop
Single Car, 1 Attachment Point, Plunger Stop
Single, Car, 1 Attachment Point
Connector Plate including Screws
Track Rail End Stop
Track Rail Joiner
Track Rail
Ronstan International Pty Ltd
19 Park Way, Braeside, Victoria 3195 Australia
Tel: +61 (0)3 8586 2000 Fax: +61 (0)3 8586 2099 Email: office@ronstan.com.au
E.U. Representative: Ronstan Denmark ApS
Karetmagervej 23, 7100 Vejle, Denmark
Tel: (45) 76 40 82 00 Fax: (45) 76 40 82 01 Email: office@ronstan.dk
Length
Width
mm
254
124
124
in
10
4 7/8
4 7/8
mm
58
58
58
in
2 5/16
2 5/16
2 5/16
48
1 29/32
47
1 27/32
2996
118
22
Certified
Maximum
Working Load
kg
lb
100
220
100
220
100
220
7/8
3
ISSUE – 2
17/01/11
-
P. 1
SAFETY RAIL SYSTEM S22Certified to European Standard EN795:1996 Class DThis system provides a method of attachment for use in conjunction with personal... -
P. 2
FeaturesMarine grade aluminium alloy cars, track rails and end stops, anodised for corrosion protectionand long service life.Recirculating Torlon®... -
P. 3
-
P. 4
InstallationRefer to the installation recommendations of EN795;1996 Annex A section A.6 regarding the distanceavailable on site to arrest the fall of a... -
P. 5
In case of any doubts about the condition of the system, or if any component is found to be damaged inany way, the parts must be immediately removed from...
