Muzzle Reinforcement Kit (k-7000)
Reinforces the muzzle when adding power. Recommended when using 4 bands. Standard on Island, BW, Baja #4, and Baja #5
B
M

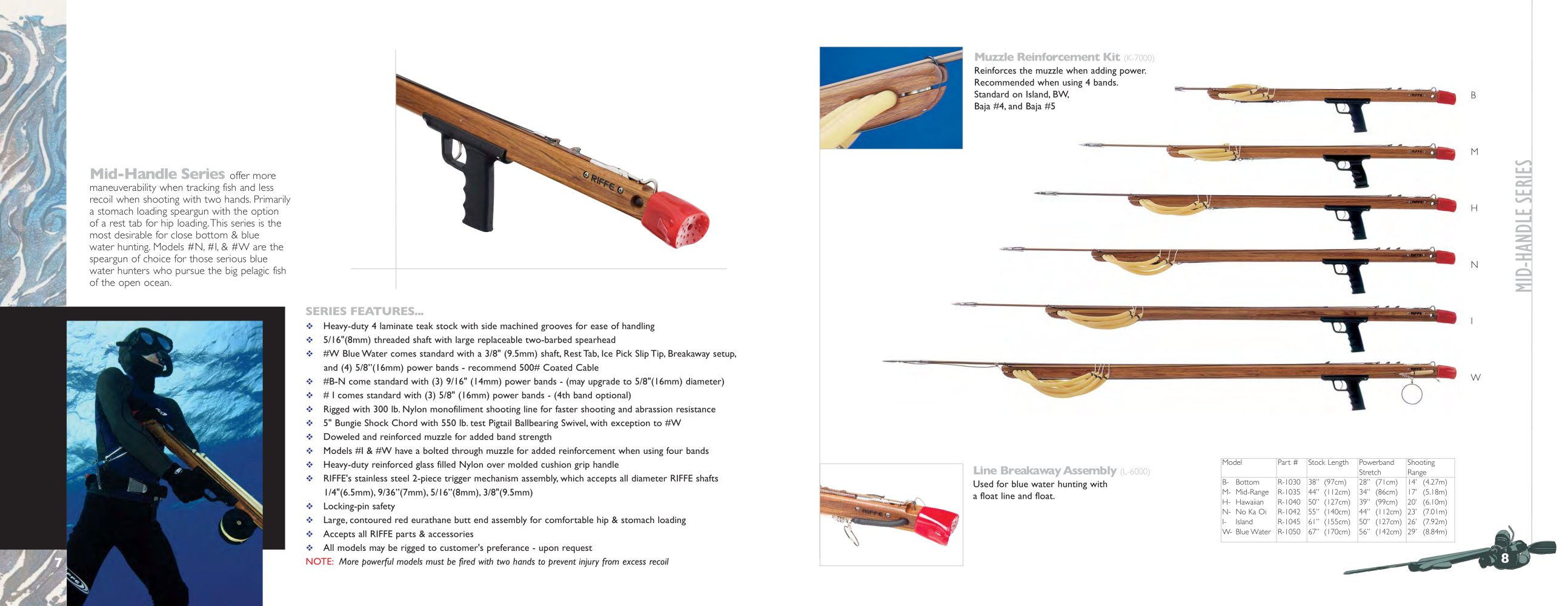

Mid-Handle Series offer more
maneuverability when tracking fish and less recoil when shooting with two hands. Primarily a stomach loading speargun with the option of a rest tab for hip loading.This series is the most desirable for close bottom & blue water hunting. Models #N, #I, & #W are the speargun of choice for those serious blue water hunters who pursue the big pelagic fish of the open ocean.
H
N
SERIES FEATURES...
❖ Heavy-duty 4 laminate teak stock with side machined grooves for ease of handling
❖ 5/l6"(8mm) threaded shaft with large replaceable two-barbed spearhead
#W Blue Water comes standard with a 3/8" (9.5mm) shaft, Rest Tab, Ice Pick Slip Tip, Breakaway setup, and (4) 5/8"(l6mm) power bands - recommend 500# Coated Cable
❖ #B-N come standard with (3) 9/16" (14mm) power bands - (may upgrade to 5/8"(l6mm) diameter)
❖ # I comes standard with (3) 5/8" (16mm) power bands - (4th band optional)
❖ Rigged with 300 lb. Nylon monofiliment shooting line for faster shooting and abrassion resistance
❖ 5" Bungie Shock Chord with 550 lb. test Pigtail Ballbearing Swivel, with exception to #W
❖ Doweled and reinforced muzzle for added band strength
❖ Models #I & #W have a bolted through muzzle for added reinforcement when using four bands
❖ Heavy-duty reinforced glass filled Nylon over molded cushion grip handle
❖ RIFFE's stainless steel 2-piece trigger mechanism assembly, which accepts all diameter RIFFE shafts l/4"(6.5mm), 9/36"(7mm), 5/l6"(8mm), 3/8"(9.5mm)
❖ Locking-pin safety
❖ Large, contoured red eurathane butt end assembly for comfortable hip & stomach loading
❖ Accepts all RIFFE parts & accessories
❖ All models may be rigged to customer's preferance - upon request
NOTE: More powerful models must be fired with two hands to prevent injury from excess recoil
W
Model
Part #
Stock Length
Powerband
Shooting
Stretch
Range
B-
Bottom
R-1030
38"
(97cm)
28" (7lcm)
14' (4.27m)
M-
Mid-Range
R-1035
44"
(ll2cm)
34" (86cm)
17' (5.18m)
H-
Hawaiian
R-1040
50"
(l27cm)
39" (99cm)
20' (6.10m)
N-
No Ka Oi
R-1042
55"
(l40cm)
44" (ll2cm)
23' (7.0lm)
I-
Island
R-1045
61"
(l55cm)
50" (l27cm)
26' (7.92m)
W-
Blue Water
R-1050
67"
(l70cm)
56" (l42cm)
29' (8.84m)
Line Breakaway Assembly (l-6000)
Used for blue water hunting with a float line and float.
