2
E0

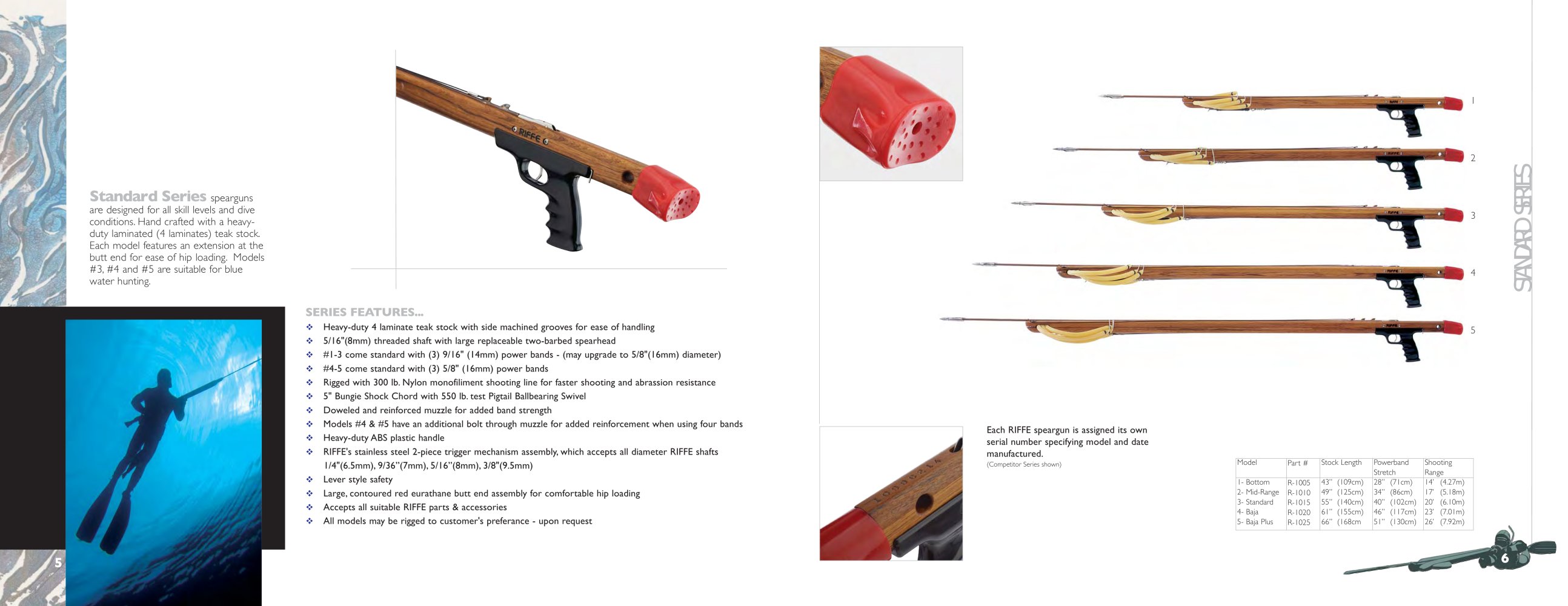

Standard Series spearguns
are designed for all skill levels and dive conditions. Hand crafted with a heavy-duty laminated (4 laminates) teak stock. Each model features an extension at the butt end for ease of hip loading. Models #3, #4 and #5 are suitable for blue water hunting.
3
4
SERIES FEATURES...
❖ Heavy-duty 4 laminate teak stock with side machined grooves for ease of handling
❖ 5/l6"(8mm) threaded shaft with large replaceable two-barbed spearhead
❖ #1-3 come standard with (3) 9/16" (14mm) power bands - (may upgrade to 5/8"(l6mm) diameter)
❖ #4-5 come standard with (3) 5/8" (16mm) power bands
❖ Rigged with 300 lb. Nylon monofiliment shooting line for faster shooting and abrassion resistance
❖ 5" Bungie Shock Chord with 550 lb. test Pigtail Ballbearing Swivel
❖ Doweled and reinforced muzzle for added band strength
❖ Models #4 & #5 have an additional bolt through muzzle for added reinforcement when using four bands
❖ Heavy-duty ABS plastic handle
❖ RIFFE's stainless steel 2-piece trigger mechanism assembly, which accepts all diameter RIFFE shafts l/4"(6.5mm), 9/36"(7mm), 5/l6"(8mm), 3/8"(9.5mm)
❖ Lever style safety
❖ Large, contoured red eurathane butt end assembly for comfortable hip loading
❖ Accepts all suitable RIFFE parts & accessories
❖ All models may be rigged to customer's preferance - upon request
5
Each RIFFE speargun is assigned its own serial number specifying model and date manufactured.
(Competitor Series shown)
Model
Part #
Stock Length
Powerband
Shooting
Stretch
Range
11- Bottom
R-1005
43"
(109cm)
28" (71cm)
14' (4.27m)
2- Mid-Range
R-1010
49"
(l25cm)
34" (86cm)
17' (5.18m)
3- Standard
R-1015
55"
(l40cm)
40" (l02cm)
20' (6.10m)
4- Baja
R-1020
61"
(l55cm)
46" (ll7cm)
23' (7.0lm)
|5- Baja Plus
R-1025
66"
(l68cm
5l" (l30cm)
26' (7.92m)
