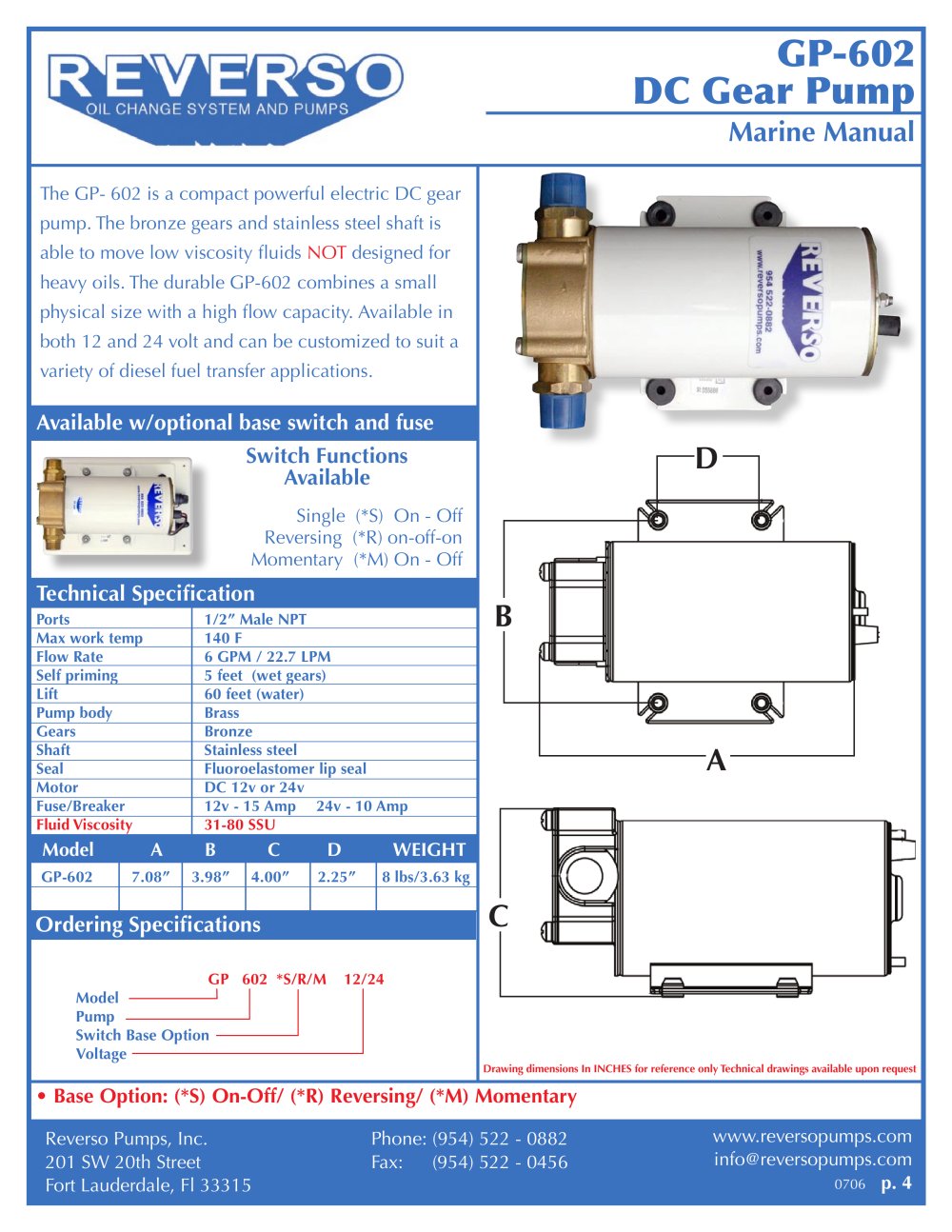

| | | GP-602 DC Gear Pump | | |
| | | |
| | | Marine Manual | | |
| | | |
| | | The GP- 602 is a compact powerful electric DC gear pump. The bronze gears and stainless steel shaft is able to move low viscosity fluids NOT designed for heavy oils. The durable GP-602 combines a small physical size with a high flow capacity. Available in both 12 and 24 volt and can be customized to suit a variety of diesel fuel transfer applications. | | |
| | | |
| | | Available w/optional base switch and fuse | | |
| | | |
| | | Switch Functions Available Single (*S) On - Off Reversing (*R) on-off-on Momentary (*M) On - Off | | |
| | | |
| | | Technical Specification | | |
| | | | | | | | | | Ports | 1/2" Male NPT | | | | Max work temp | 140 F | | | | Flow Rate | 6 GPM / 22.7 LPM | | | | Self priming | 5 feet (wet gears) | | | | Lift | 60 feet (water) | | | | Pump body | Brass | | | | Gears | Bronze | | | | Shaft | Stainless steel | | | | Seal | Fluoroelastomer lip seal | | | | Motor | DC 12v or 24v | | | | Fuse/Breaker | 12v - 15 Amp 24v - 10 Amp | | | | Fluid Viscosity | 31-80 SSU | | | | | | | | | |
| | | A" | | |
| | | |
| | | |
| | | Model | | |
| | | A | | WEIGHT | | |
| | | B | | C | | D | | |
| | | | |
| | | |
| | | | | | | | | | | | | | 1 GP-602 | 7.08" | 3.98" | 4.00" | 2.25" | 8 lbs/3.63 kg | | | | 1 | | | | | | | | | | | | | | | | | | |
| | | |
| | | Ordering Specifications | | |
| | | |
| | | GP 602 *S/R/M i: _l | | |
| | | | |
| | Model - Pump - Switch Base Option Voltage- | | |
| | | |
| | | Drawing dimensions In INCHES for reference only Technical drawings available upon request | | |
| | | |
| | | • Base Option: (*S) On-Off/ (*R) Reversing/ (*M) Momentary | | |
| | | |
| | | www.reversopumps.com info@reversopumps.com 0706 p.4 | | |
| | | Phone: (954) 522 - 0882 Fax: (954) 522 - 0456 | | |
| | | Reverso Pumps, Inc. 201 SW 20th Street Fort Lauderdale, Fl 33315 | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
