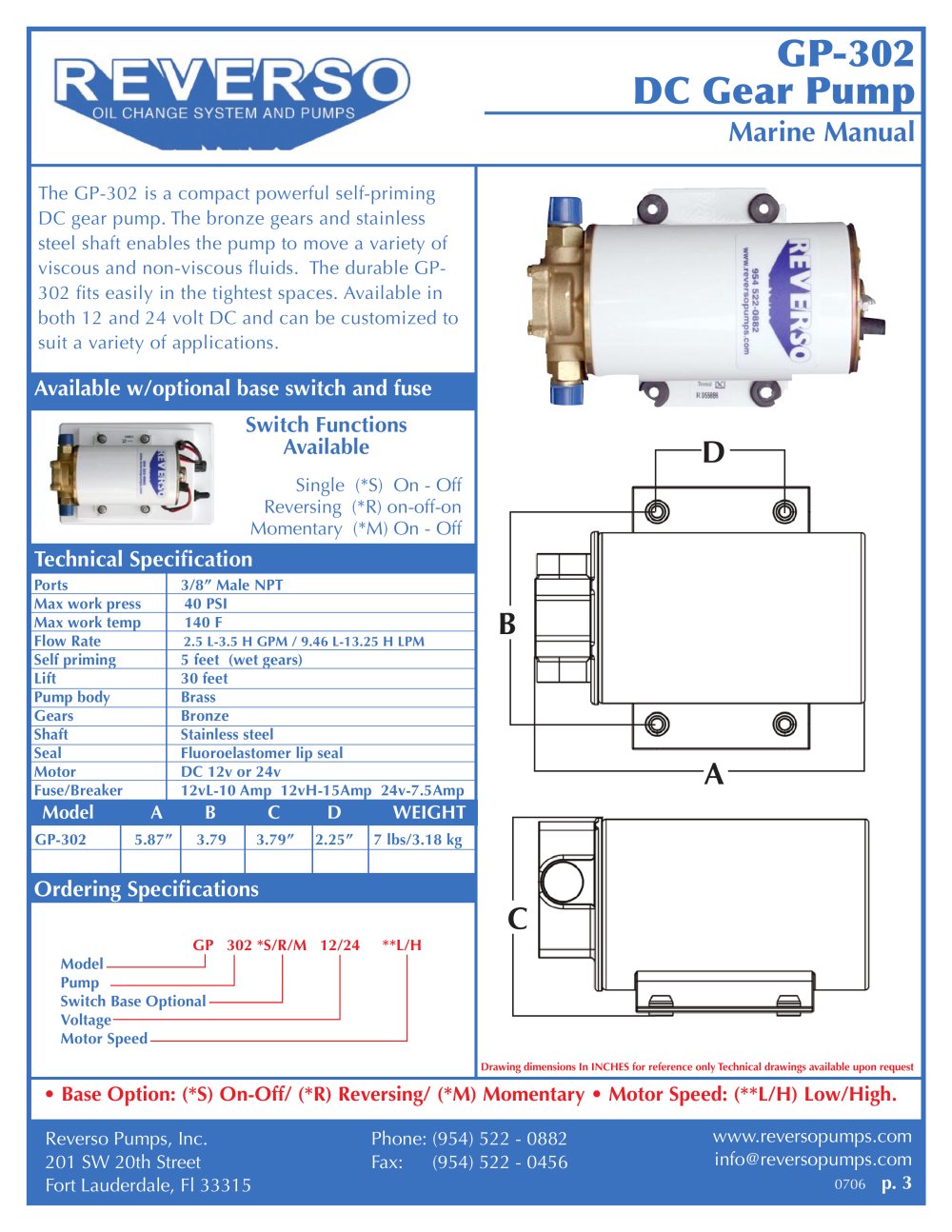

| | | GP-302 DC Gear Pump Marine Manual | | |
| | | |
| | | The GP-302 is a compact powerful self-priming DC gear pump. The bronze gears and stainless steel shaft enables the pump to move a variety of viscous and non-viscous fluids. The durable GP-302 fits easily in the tightest spaces. Available in both 12 and 24 volt DC and can be customized to suit a variety of applications. | | |
| | | |
| | | Available w/optional base switch and fuse | | |
| | | |
| | | Switch Functions Available Single (*S) On - Off Reversing (*R) on-off-on Momentary (*M) On - Off | | |
| | | D | | |
| | | |
| | | |
| | | Technical Specification | | |
| | | |
| | | | | | | | | | Ports | 3/8" Male NPT | | | | Max work press | 40 PSI | | | | Max work temp | 140 F | | | | Flow Rate | 2.5 L-3.5 H GPM / 9.46 L-13.25 H LPM | | | | Self priming | 5 feet (wet gears) | | | | Lift | 30 feet | | | | Pump body | Brass | | | | Gears | Bronze | | | | Shaft | Stainless steel | | | | Seal | Fluoroelastomer lip seal | | | | Motor | DC 12v or 24v | | | | Fuse/Breaker | 12vL-10 Amp 12vH-15Amp 24v-7.5Amp | | | | | | | | | |
| | | B | | |
| | | |
| | | A | | |
| | | |
| | | | | | | | | | | | | | A | B | C | | | | | | GP-302 | 5.87" | 3.79 | 3.79" | 2.25" | 7 lbs/3.18 kg | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Ordering Specifications | | |
| | | |
| | | C | | |
| | | |
| | | GP 302 *S/R/M 12/24 _l | | **L/H | | |
| | | |
| | | | |
| | Model- Pump - Switch Base Optional ■ Voltage- Motor Speed- | | |
| | | |
| | | Drawing dimensions In INCHES for reference only Technical drawings available upon request | | |
| | | |
| | | • Base Option: (*S) On-Off/ (*R) Reversing/ (*M) Momentary • Motor Speed: (**L/H) Low/High. | | |
| | | |
| | | | | | | | | | | | Reverso Pumps, Inc. 201 SW 20th Street | Phone: (954) 522 - 0882 Fax: (954) 522 - 0456 | www.reversopumps.com info@reversopumps.com | | | | Fort Lauderdale, Fl 33315 | | 0706 p. | 3 | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
