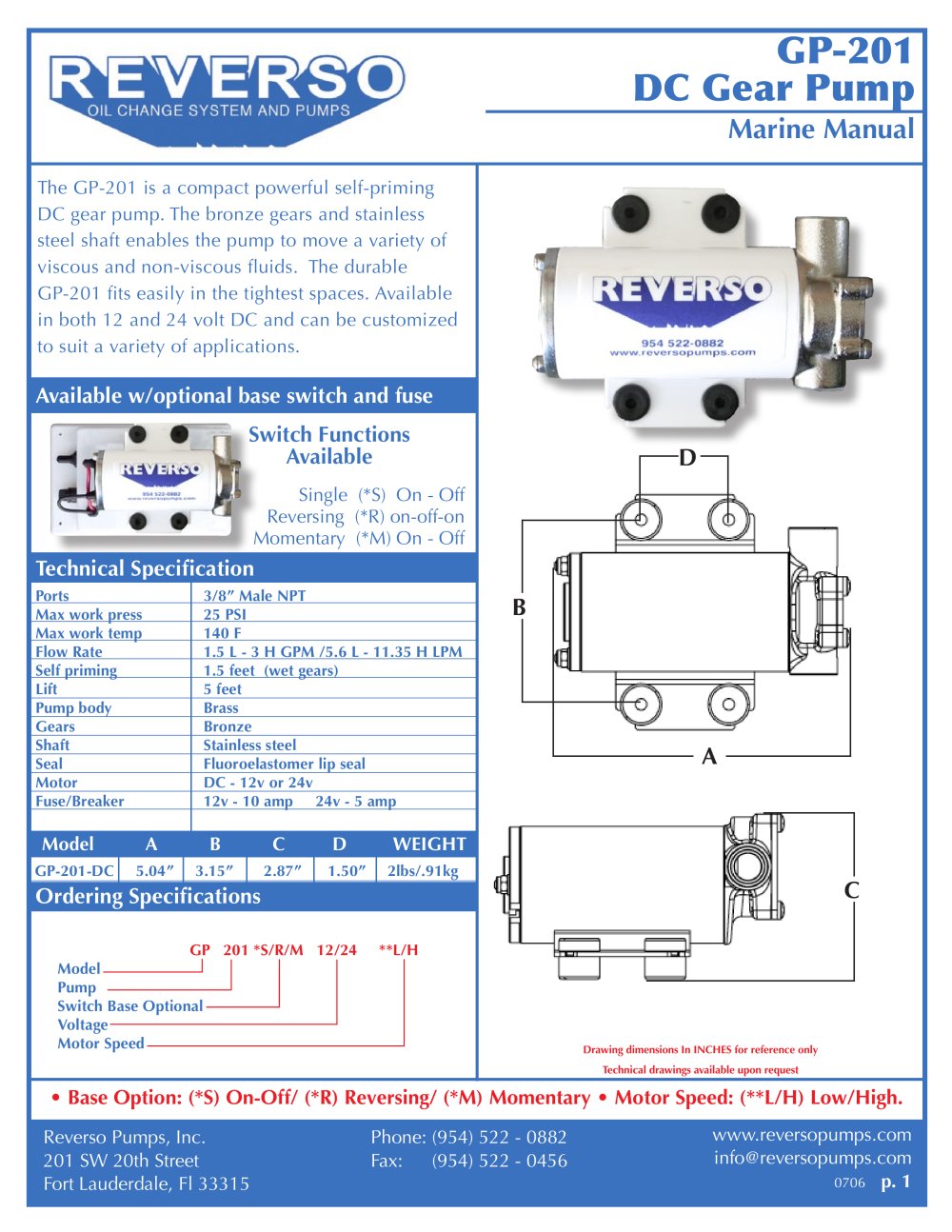

| | | GP-201 DC Gear Pump | | |
| | | |
| | | Marine Manual | | |
| | | |
| | | The GP-201 is a compact powerful self-priming DC gear pump. The bronze gears and stainless steel shaft enables the pump to move a variety of viscous and non-viscous fluids. The durable GP-201 fits easily in the tightest spaces. Available in both 12 and 24 volt DC and can be customized to boat suit a variety of applications. | | |
| | | |
| | | Available w/optional base switch and fuse | | |
| | | |
| | | Switch Functions Available Single (*S) On - Off Reversing (*R) on-off-on Momentary (*M) On - Off | | |
| | | |
| | | Technical Specification | | |
| | | |
| | | | | | | | | | | Ports | 3/8" Male NPT | | | | Max work press | 25 PSI | | | | Max work temp | 140 F | | | | Flow Rate | 1.5 L - 3 H GPM /5.6 L - 11.35 H LPM | | | | Self priming | 1.5 feet (wet gears) | | | | Lift | 5 feet | | | | Pump body | Brass | | | | Gears | Bronze | | | | Shaft | Stainless steel | | | | Seal | Fluoroelastomer lip seal | | | | Motor | DC - 12v or 24v | | | | Fuse/Breaker | 12v - 10 amp 24v - 5 amp | | | | | | | | | Model A | B C | D WEIGHT | | | | |GP-201-DC 5.04" | 3.15" 2.87" | 1.50" 2lbs/.91kg | | | | | | | | | | |
| | | |
| | | Ordering Specifications | | |
| | | |
| | | GP 201 *S/R/M 12/24 **L/H _l | | |
| | | | |
| | Model_ Pump - Switch Base Optional Voltage- Motor Speed- | | |
| | | Drawing dimensions In INCHES for reference only Technical drawings available upon request | | |
| | | |
| | | |
| | | • Base Option: (*S) On-Off/ (*R) Reversing/ (*M) Momentary • Motor Speed: (**L/H) Low/High. | | |
| | | |
| | | www.reversopumps.com info@reversopumps.com 0706 p. 1 | | |
| | | Phone: (954) 522 - 0882 Fax: (954) 522 - 0456 | | |
| | | Reverso Pumps, Inc. 201 SW 20th Street Fort Lauderdale, Fl 33315 | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
