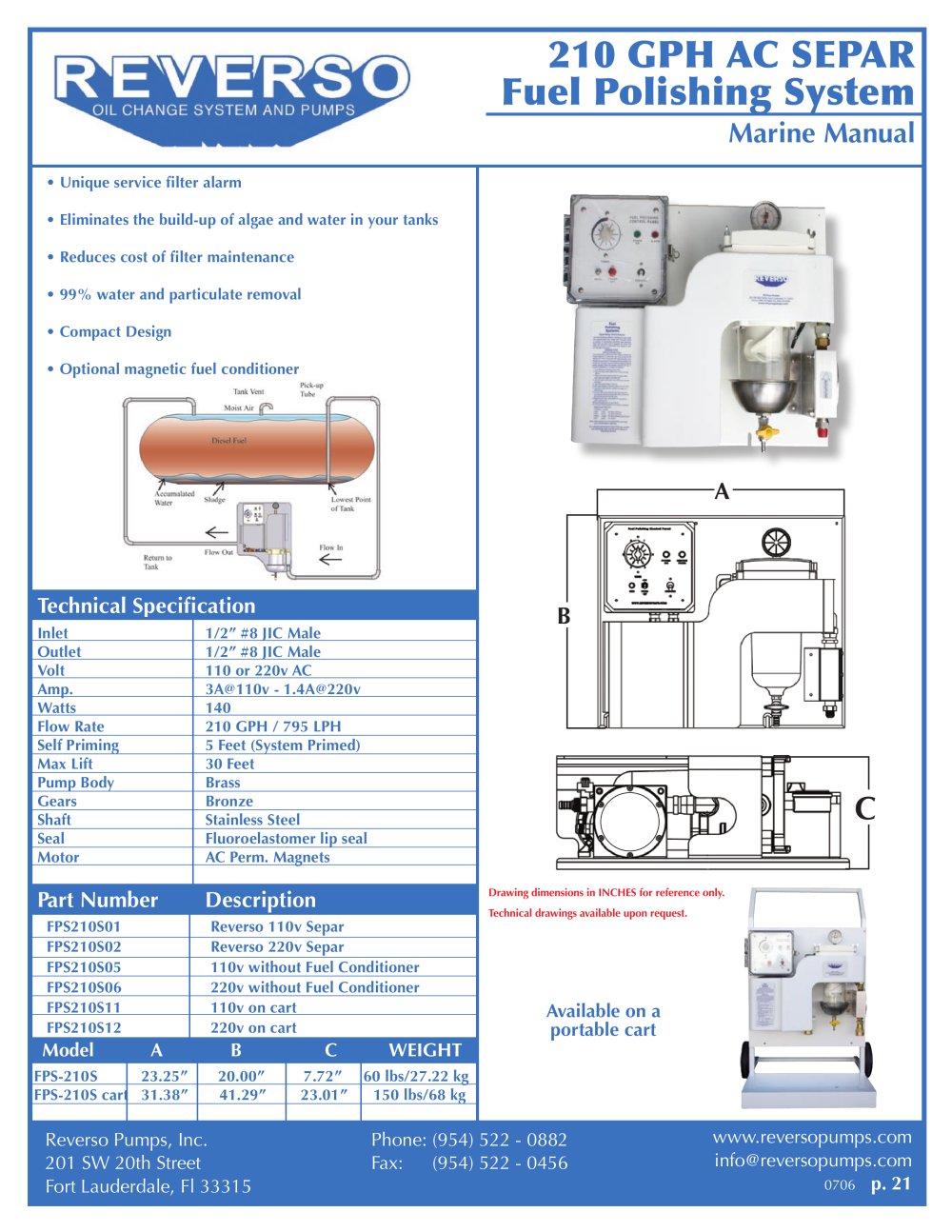

210 GPH AC SEPARFuel Polishing System

Marine Manual

A

Technical Specification

Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male Volt 110 or 220v AC Amp. 3A@110v - 1.4A@220v Watts 140 Flow Rate 210 GPH / 795 LPH Self Priming 5 Feet (System Primed) Max Lift 30 Feet Pump Body Brass Gears Bronze Shaft Stainless Steel Seal Fluoroelastomer lip seal Motor AC Perm. Magnets

B

C

Part Number Description

Drawing dimensions in INCHES for reference only. Technical drawings available upon request. FPS210S01 Reverso 110v SeparFPS210S02 Reverso 220v Separ FPS210S05 110v without Fuel Conditioner FPS210S06 220v without Fuel Conditioner FPS210S11 110v on cart FPS210S12 220v on cart • Unique service filter alarm• Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • 99% water and particulate removal • Compact Design • Optional magnetic fuel conditioner Available on a portable cart Model A B C WEIGHT
FPS-210 S 23.25” 20.00” 7.72” 60 lbs/27.22 kgFPS-210S cart 31.38” 41.29” 23.01” 150 lbs/68 kg Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com
0706 p. 21
