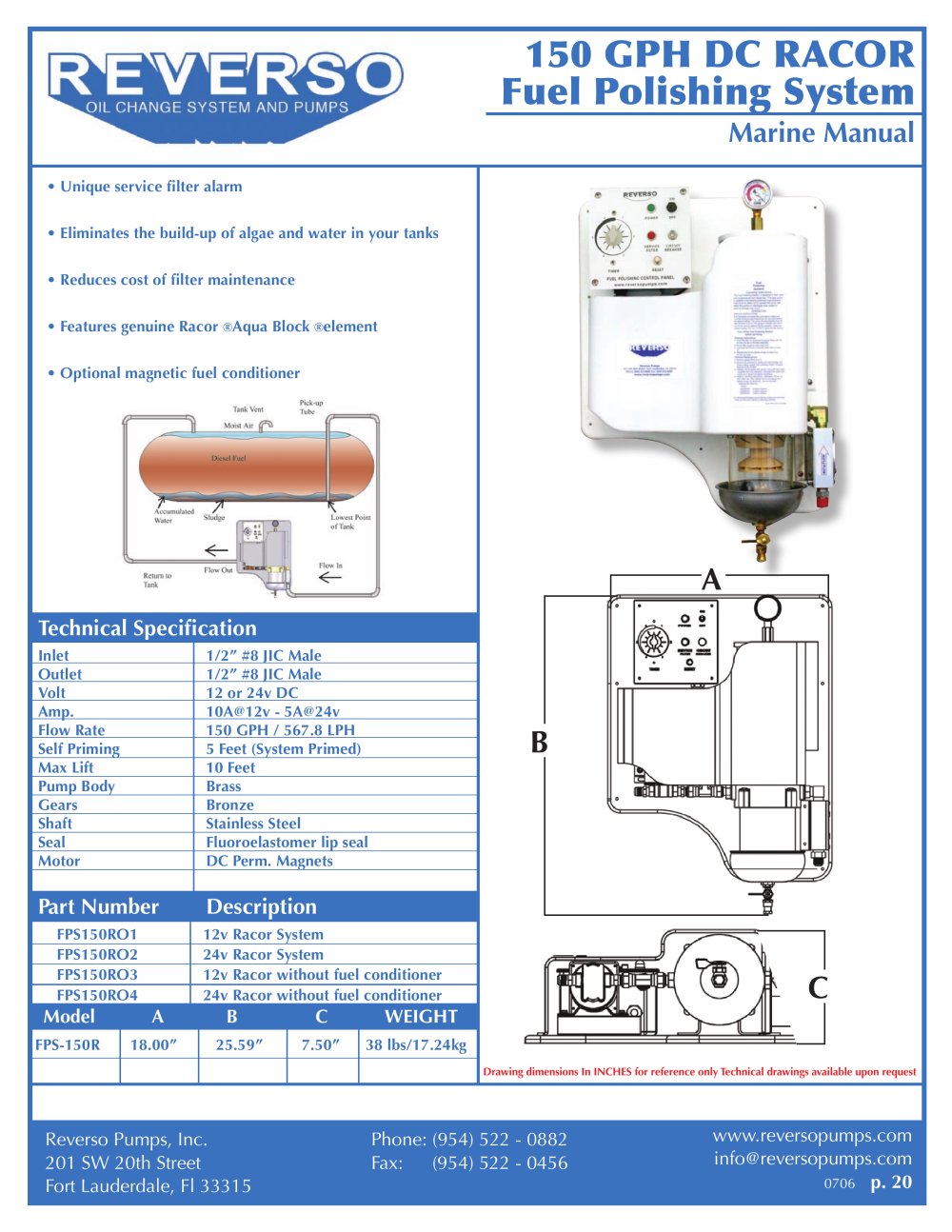

150 GPH DC RACORFuel Polishing System

Marine Manual

® Aqua Block
® element• Optional magnetic fuel conditioner

A

Technical Specification

Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male Volt 12 or 24v DC Amp. 10A@12v - 5A@24v Flow Rate 150 GPH / 567.8 LPH Self Priming 5 Feet (System Primed) Max Lift 10 Feet Pump Body Brass Gears Bronze Shaft Stainless Steel Seal Fluoroelastomer lip seal Motor DC Perm. Magnets

B

Part Number Description

FPS150RO1 12v Racor SystemFPS150RO2 24v Racor System FPS150RO3 12v Racor without fuel conditioner FPS150RO4 24v Racor without fuel conditioner • Unique service filter alarm • Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • Features genuine Racor

C

Model A B C WEIGHT

FPS-150R 18.00” 25.59” 7.50” 38 lbs/17.24kg
Drawing dimensions In INCHES for reference only Technical drawings available upon request

Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com

0706

p. 20
