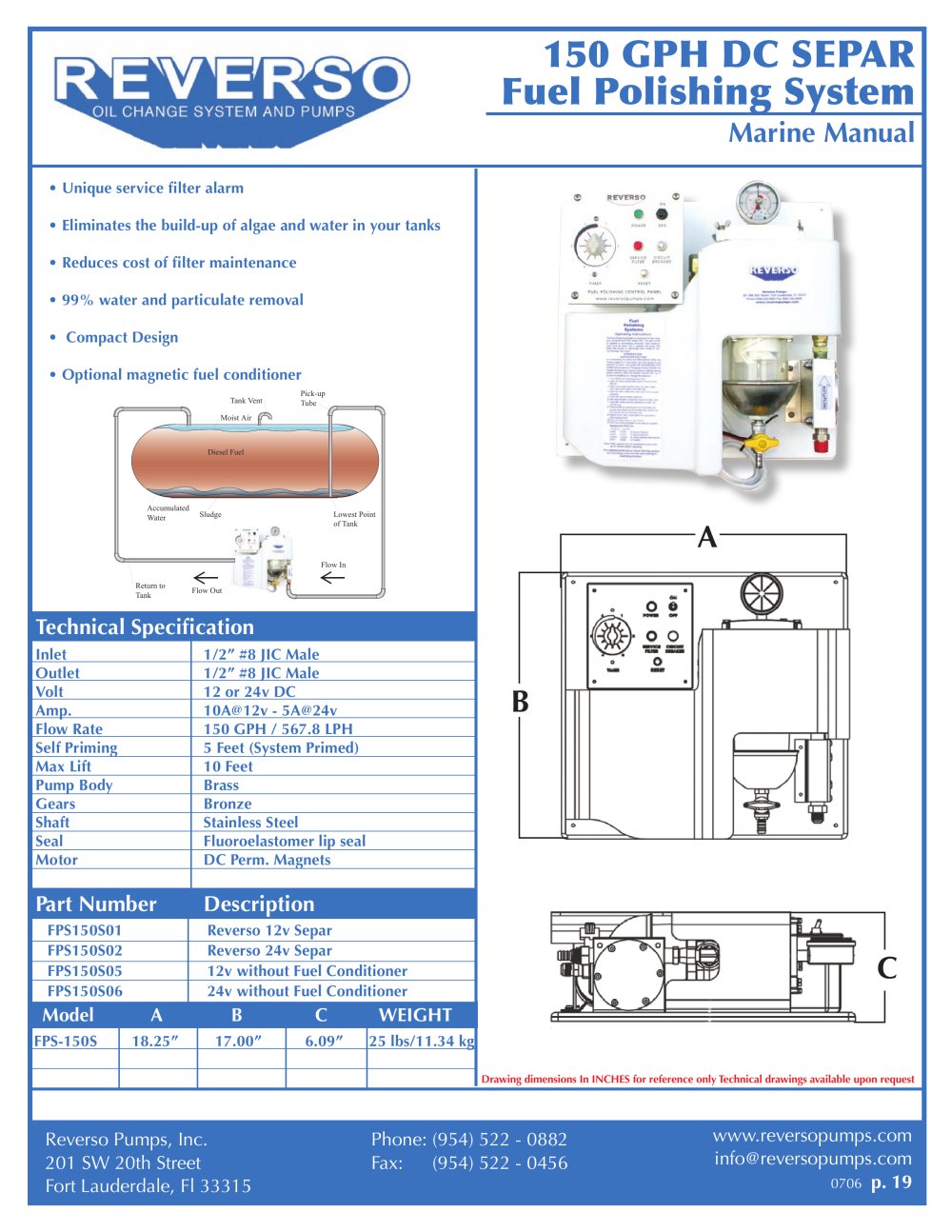

150 GPH DC SEPARFuel Polishing System

Marine Manual

• Unique service filter alarm• Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • 99% water and particulate removal • Compact Design • Optional magnetic fuel conditioner FPS150S01 Reverso 12v SeparFPS150S02 Reverso 24v Separ FPS150S05 12v without Fuel Conditioner FPS150S06 24v without Fuel Conditioner Pick-up Tube Return toTank Diesel FuelSludgeLowest Pointof TankAccumulatedWater Moist Air Flow OutFlow In Tank Vent

A

Technical Specification

Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male Volt 12 or 24v DC Amp. 10A@12v - 5A@24v Flow Rate 150 GPH / 567.8 LPH Self Priming 5 Feet (System Primed) Max Lift 10 Feet Pump Body Brass Gears Bronze Shaft Stainless Steel Seal Fluoroelastomer lip seal Motor DC Perm. Magnets

B

Part Number Description

C

Model A B C WEIGHT
FPS-150S 18.25” 17.00” 6.09” 25 lbs/11.34 kg Drawing dimensions In INCHES for reference only Technical drawings available upon request Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com
0706 p. 19
