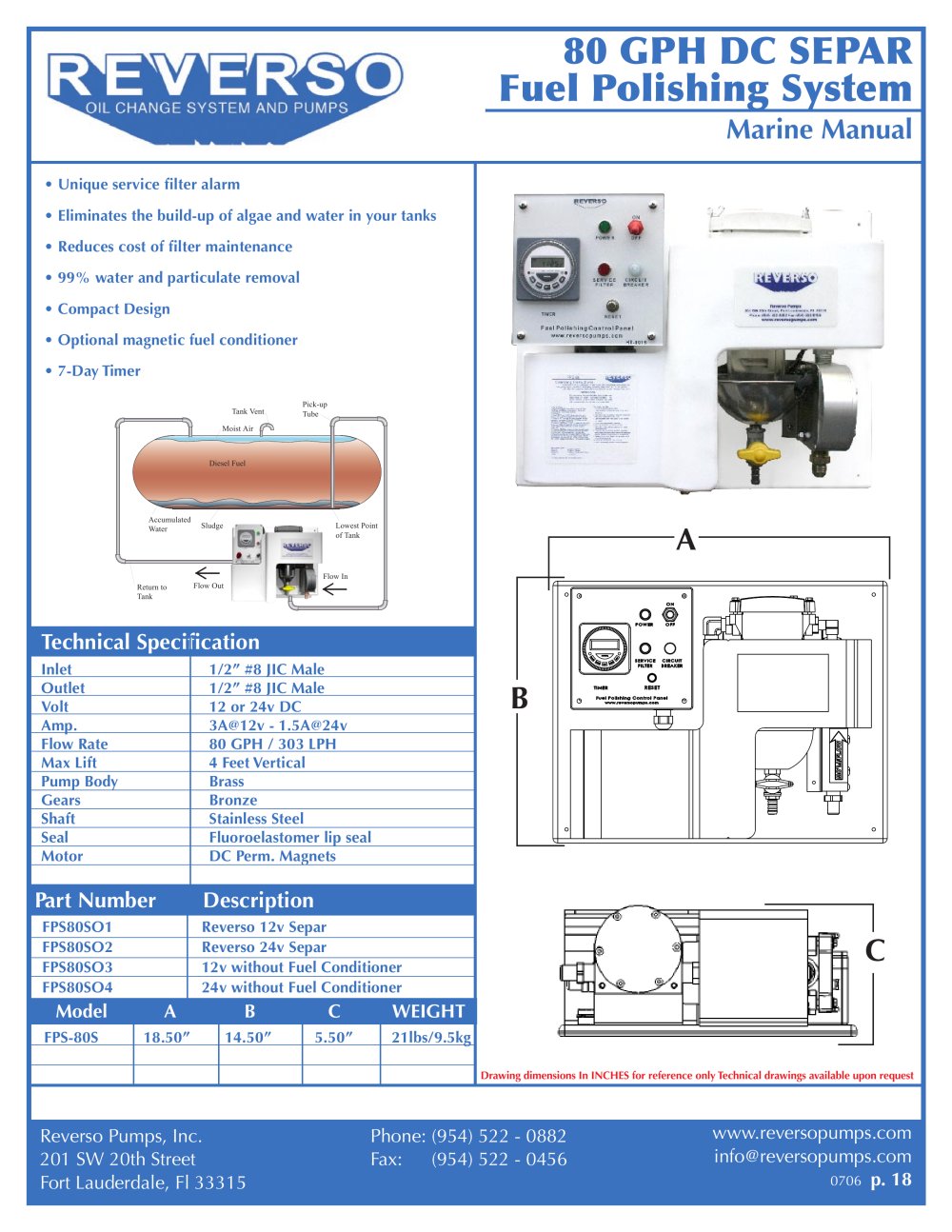

80 GPH DC SEPARFuel Polishing System
Marine Manual
• Unique service filter alarm• Eliminates the build-up of algae and water in your tanks
• Reduces cost of filter maintenance
• 99% water and particulate removal
• Compact Design
• Optional magnetic fuel conditioner
• 7-Day Timer
FPS80SO1 Reverso 12v SeparFPS80SO2 Reverso 24v Separ
FPS80SO3 12v without Fuel Conditioner
FPS80SO4 24v without Fuel Conditioner Pick-up Tube
Return toTank
Diesel FuelSludgeLowest Pointof TankAccumulatedWater
Moist Air
Flow OutFlow In Tank Vent A
Fl Technical Specification
Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male Volt 12 or 24v DC Amp. 3A@12v - 1.5A@24v
Flow Rate 80 GPH / 303 LPH
Max Lift 4 Feet Vertical
Pump Body Brass
Gears Bronze
Shaft Stainless Steel
Seal Fluoroelastomer lip seal
Motor DC Perm. Magnets B
Part Number Description
C
Model A B C WEIGHT
FPS-80S 18.50” 14.50” 5.50” 21lbs/9.5kg Drawing dimensions In INCHES for reference only Technical drawings available upon request Reverso Pumps, Inc.201 SW 20th Street
Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456 www.reversopumps.cominfo@reversopumps.com
0706 p. 18
